VisKon - The New Generation of Visual Construction

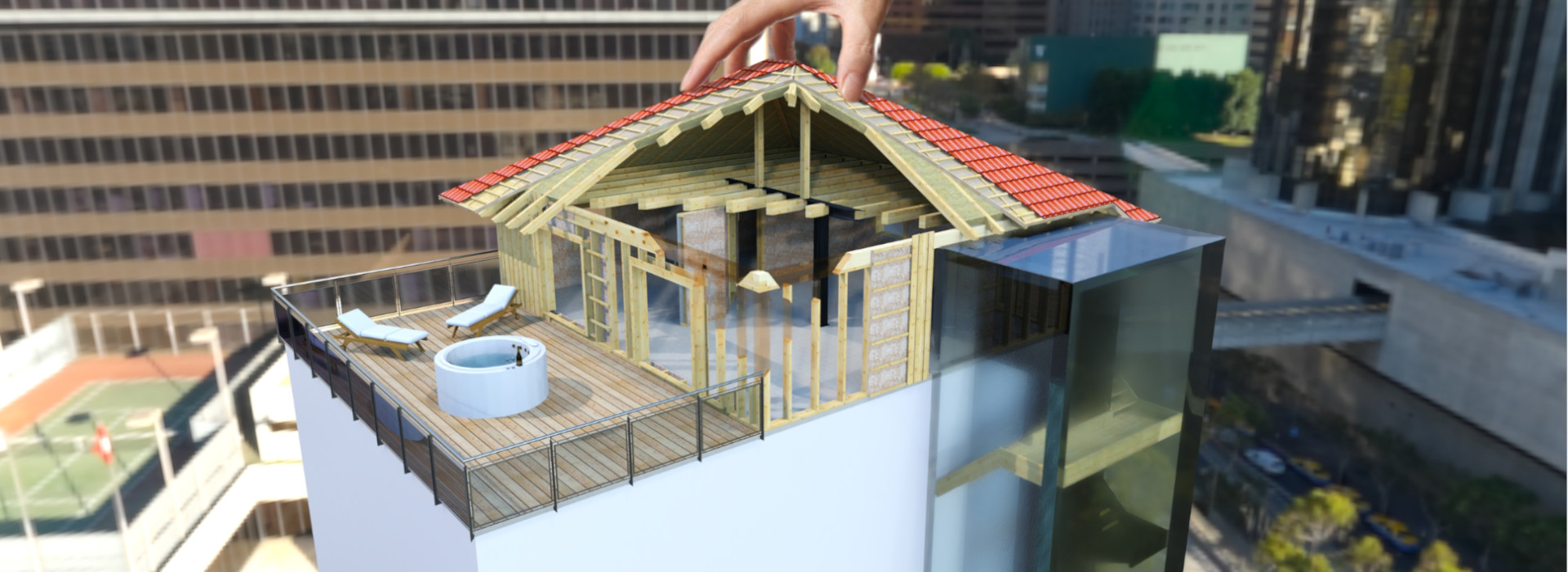

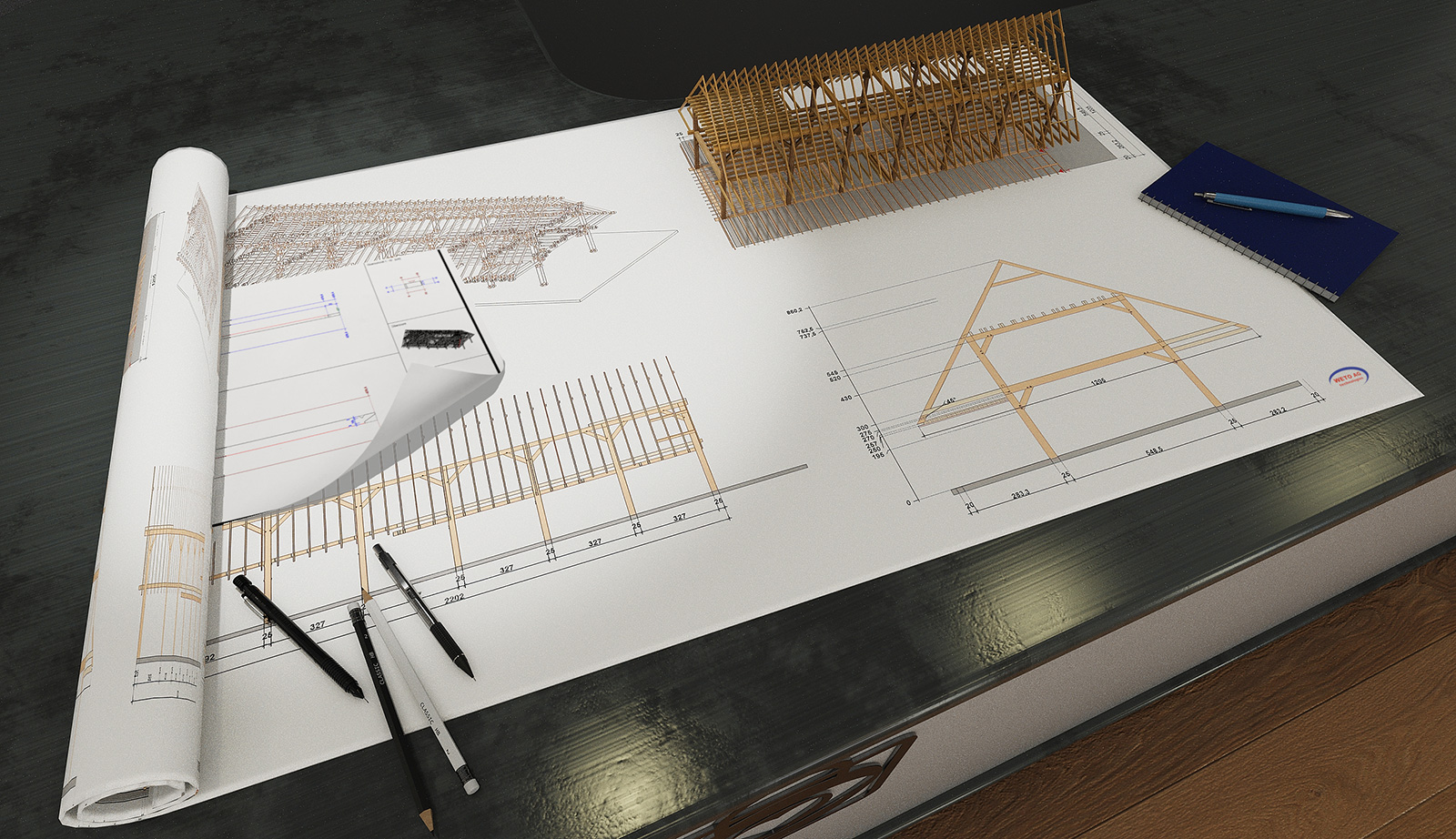

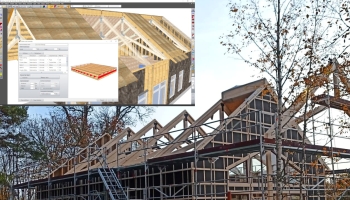

Your full 3D CAD/CAM solution for Construction Industry. From the idea (Planning) to the realisation (Finished Project)! VisKon® by WETO is a BIM/CAD/CAM Software for Timber Construction, that allows to create simple or complex timber Roofs (with dormers, sky windows, chimneys), and porches, pergolas, carports, stables, etc. with framing, so Timber Framing Buildings (with Studs, Plates, Noggins), Block Houses and Massive (as XLAM). VisKon automatically creates Technical Drawings and CNC that you expect for production. “Nomen (est) Omen”, that means “Name is Omen”. As Latin said, people name is an Omen that explains what is it and what it does and we can apply this mindset about VisKon name that means Visual Construction (Konstruktion). Since first version, the software target is to create the Easier Software Solution as possible that avoids typical problems of 2D planning (as the mistakes, lacking…) and difficulties of the others 3D software. The result is a 3D visual builder composed by several and specific 3D tools that are designed to be easy and fast for any kind Timber Construction that you want to plan and to build.
More details...THE MOST IMPORTANT INNOVATIONS AT A GLANCE
VisKon A (Roof module)

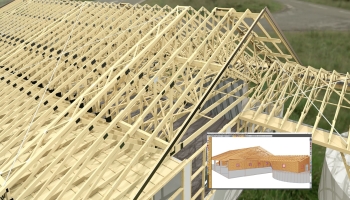

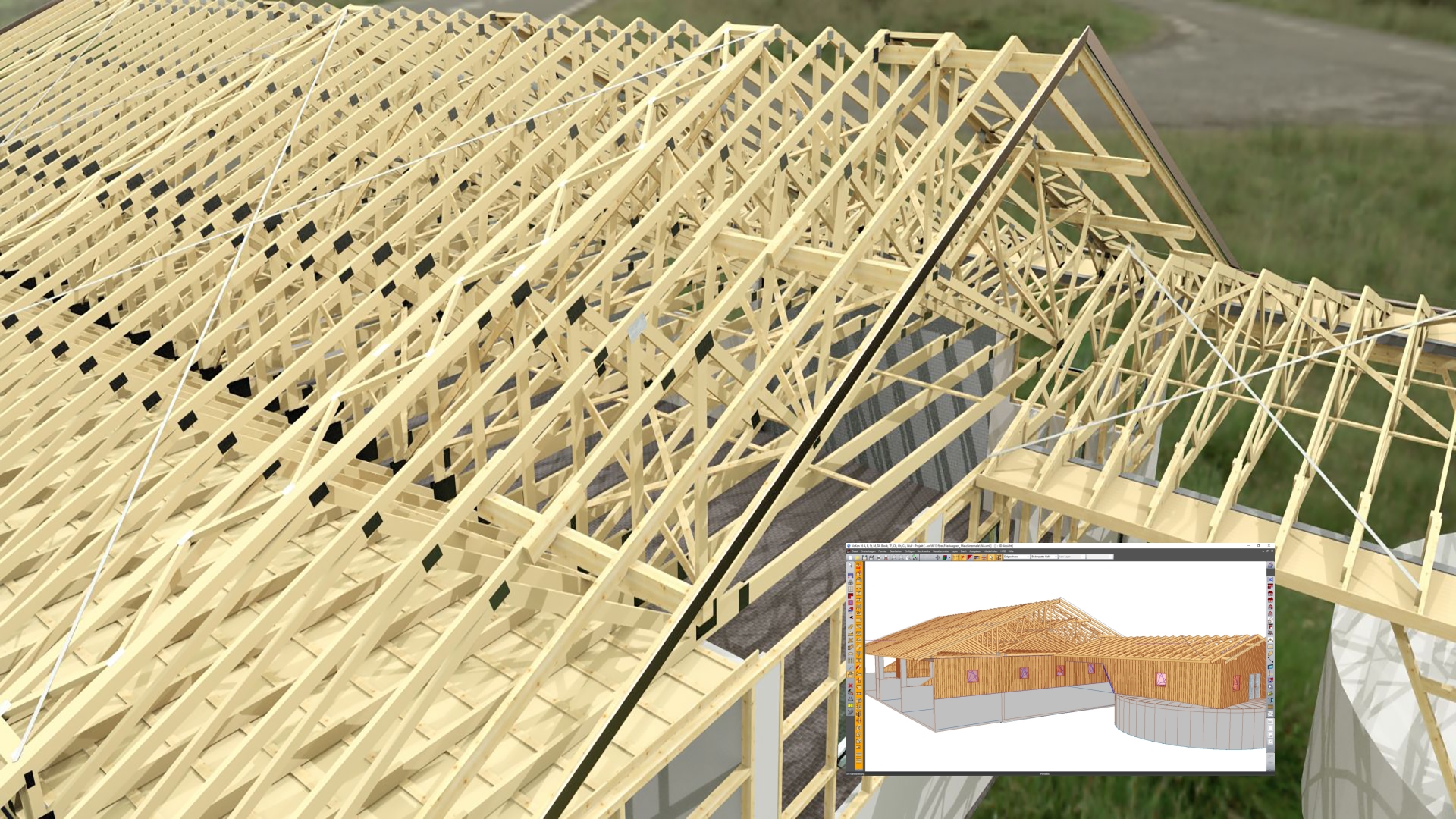

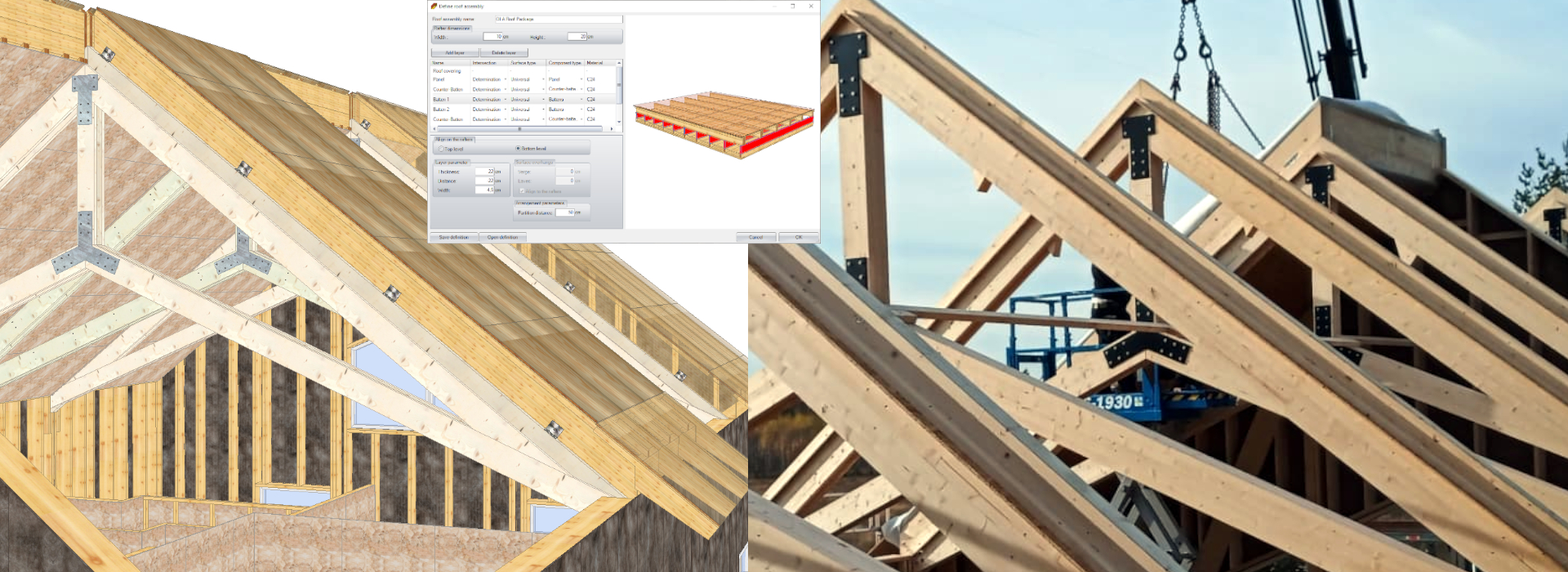

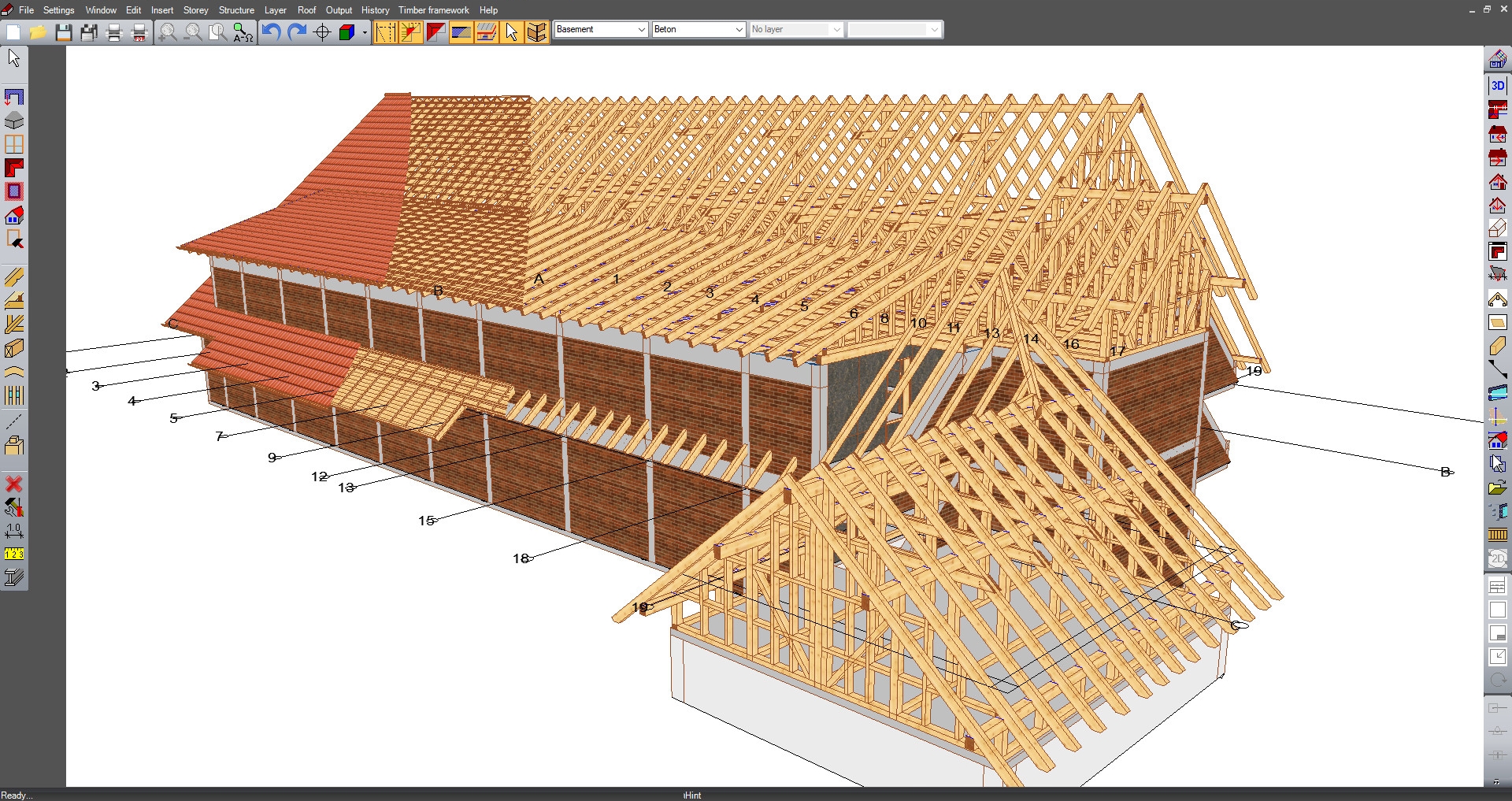

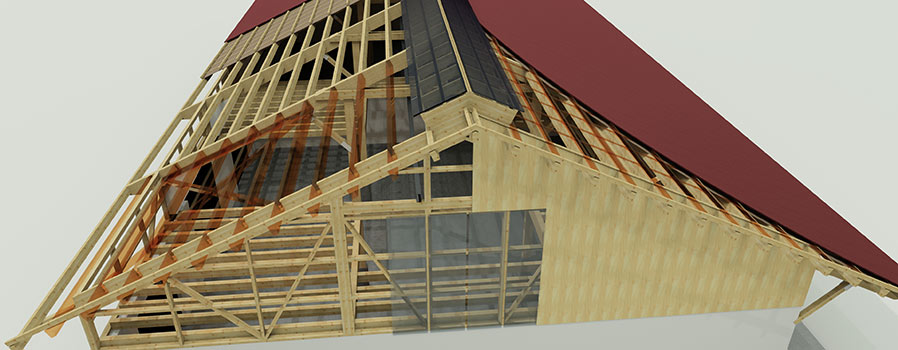

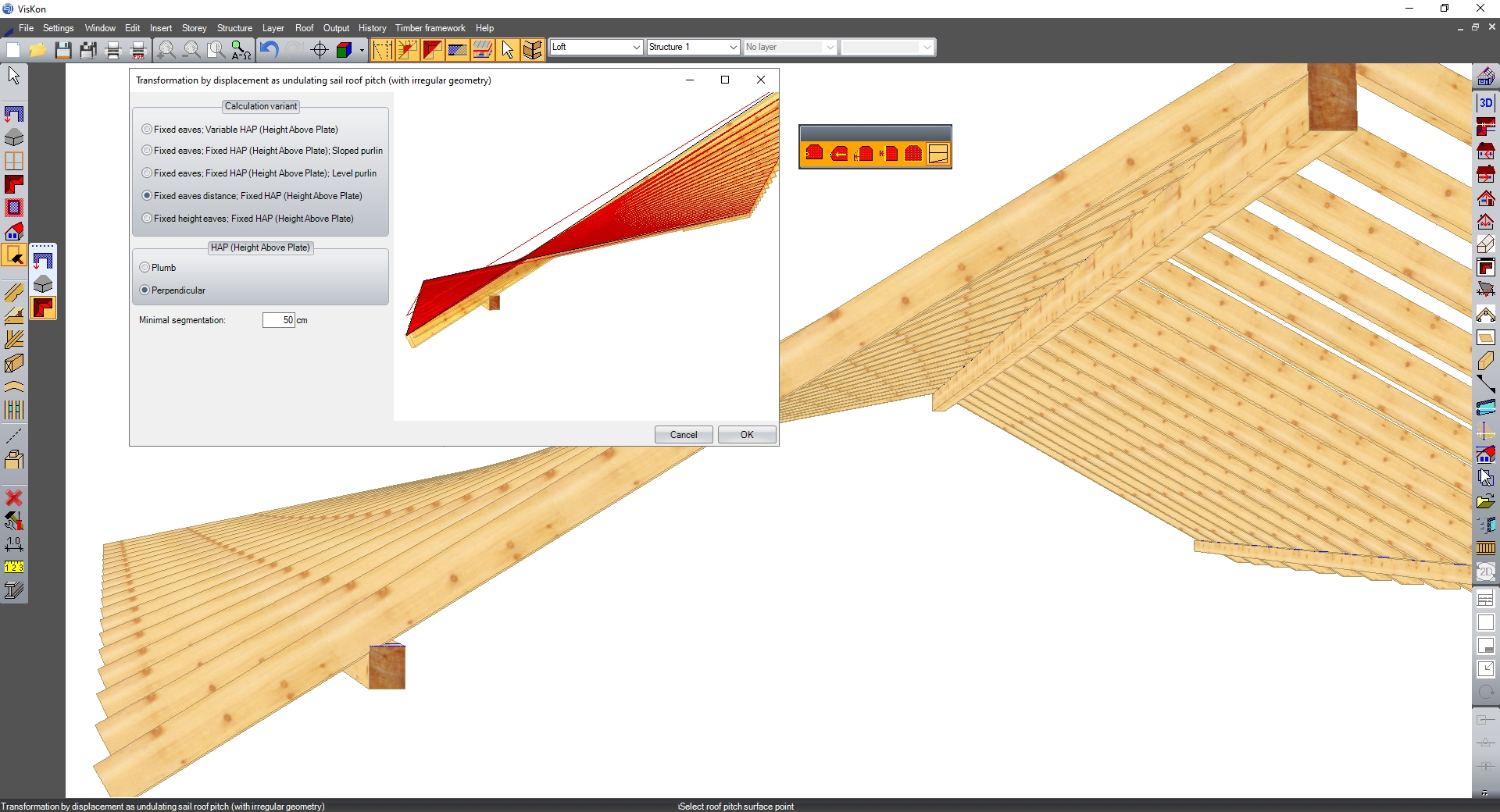

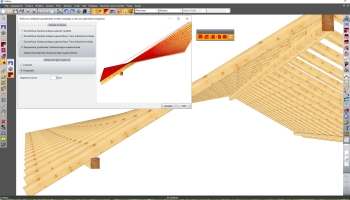

This module allows to plan any Timber Covering type and to create free constructions without struggling. Roof and Dormer Wizards offer a large option choice of wooden items letting to increase design time and quality. You can also decide to change or to add manually details without time losing. Each tool is well conceived to be complex and easy at the same time. Roof Editor manages whether main wooden structure as rafters (hip/valley), purlins (inferior/middle/ridge), collar ties/beams and the light one (battens and boards). Each timber piece can be exploded as Technical Drawings Automatically Dimensioned for production. Timber lists, as well are computed by a simple click.

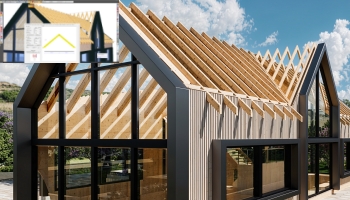

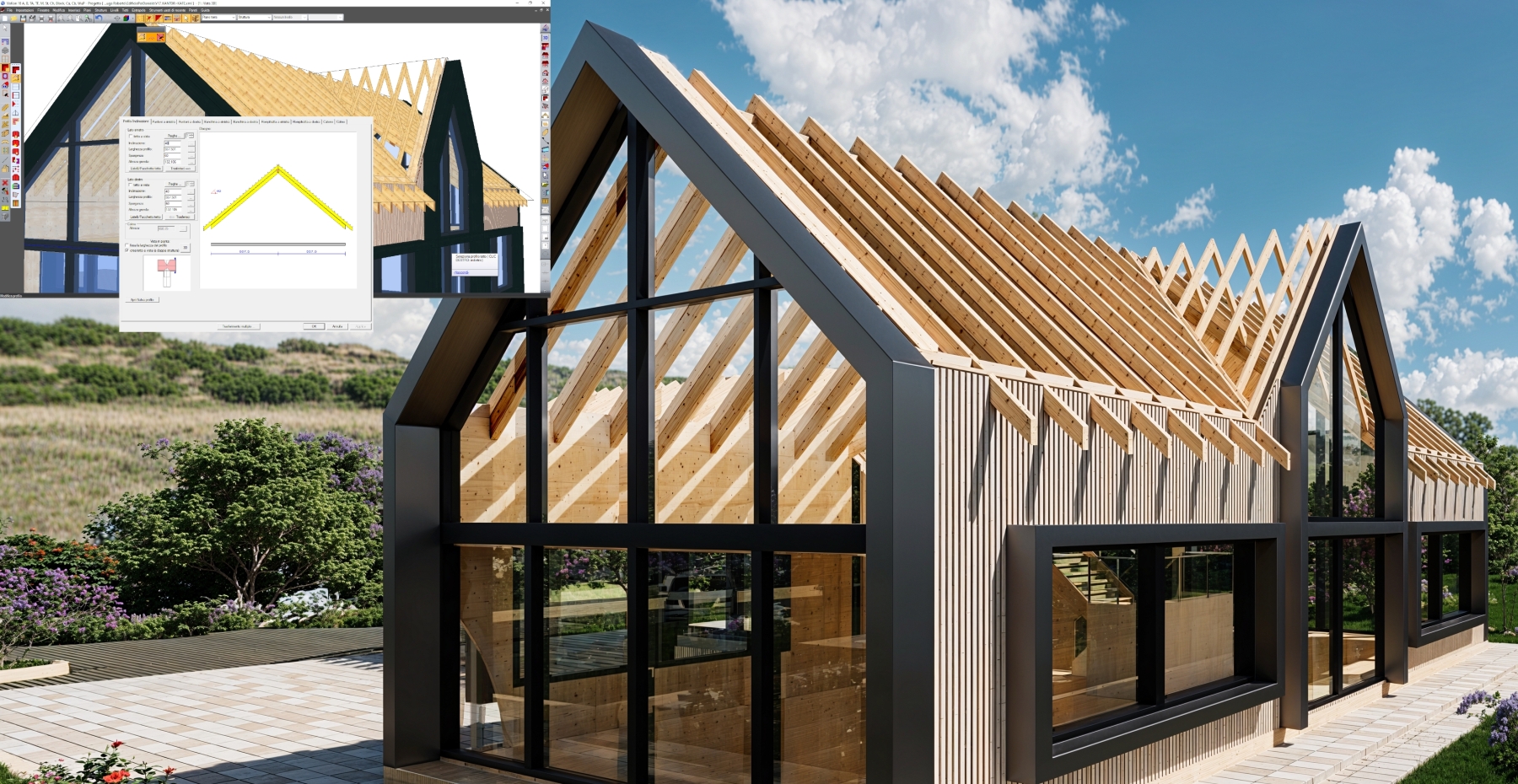

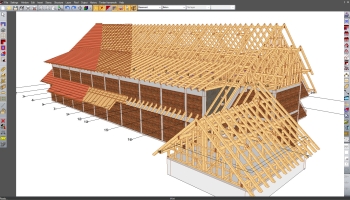

Draw you 3D roof in 7 steps only with the Roof Wizard:

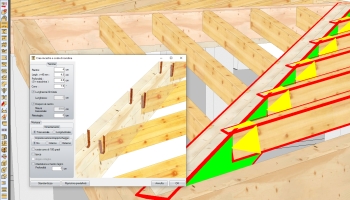

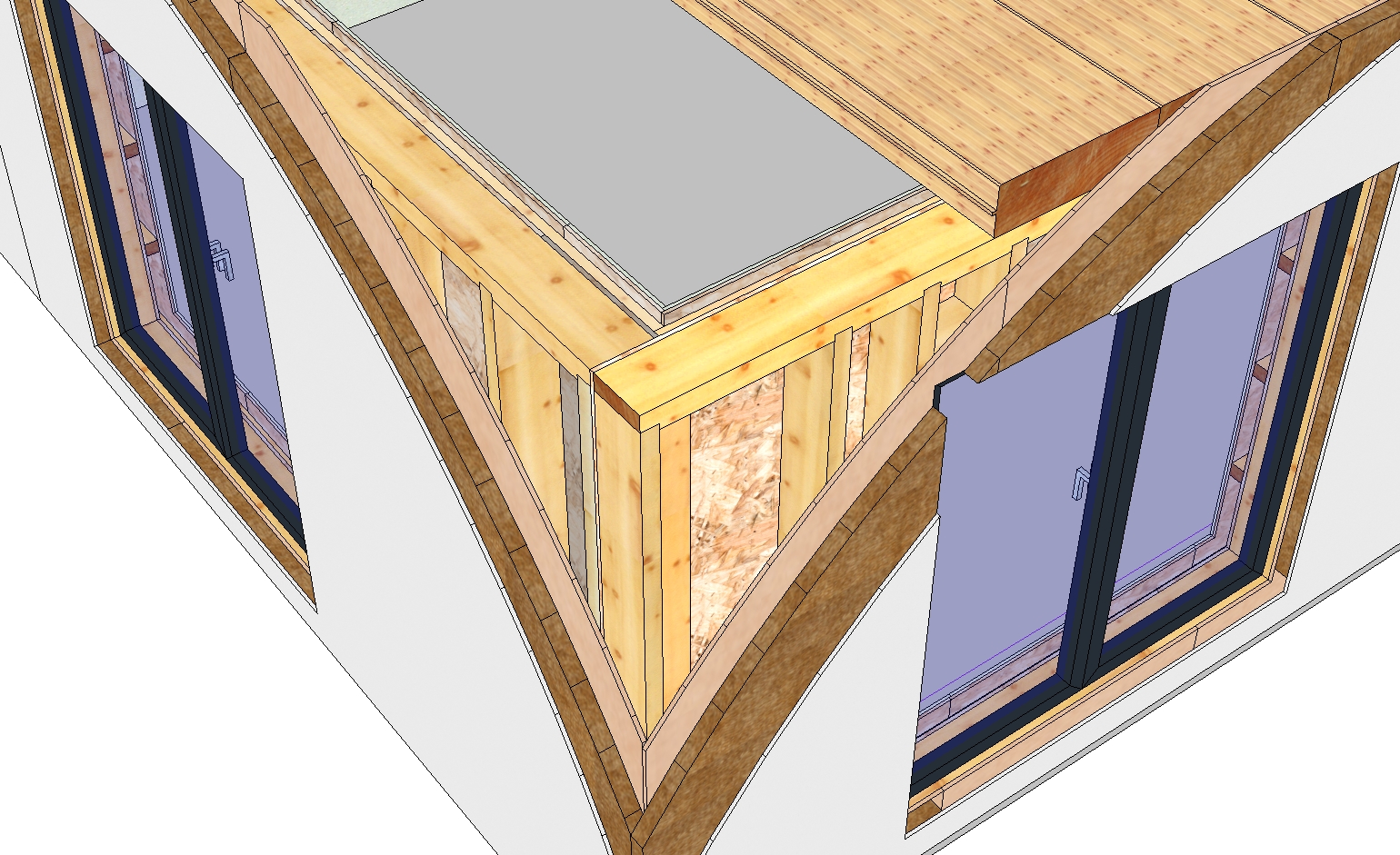

Dormers and T gable roof (perpendicular) with Assistants (Wizards)
- Easy and quick creation of roof extensions with the T gable roof (perpendicular) Assistant
- Automatic replacement of rafters and collar beams/ties while a dormer is placed into a roof surface and simultaneously it calculates studs/posts and sill beams in real time

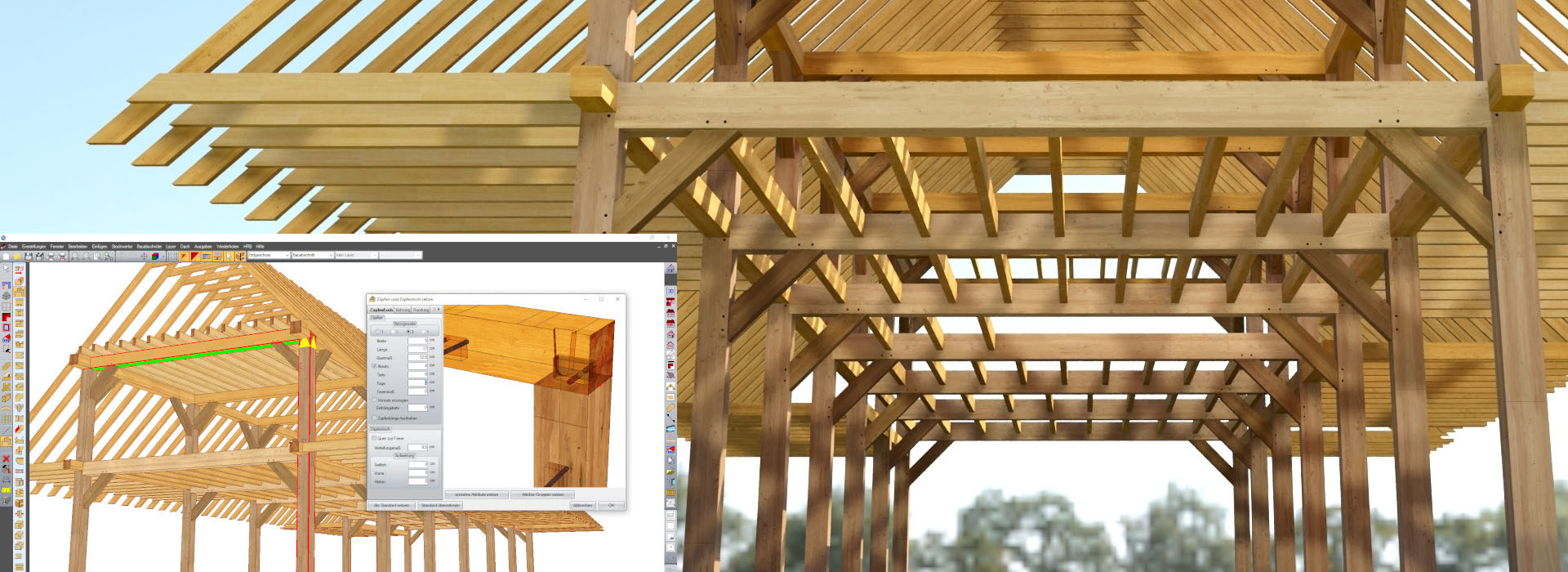

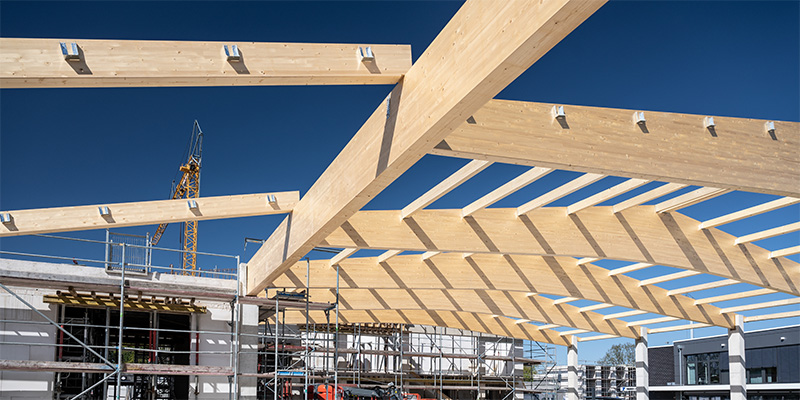

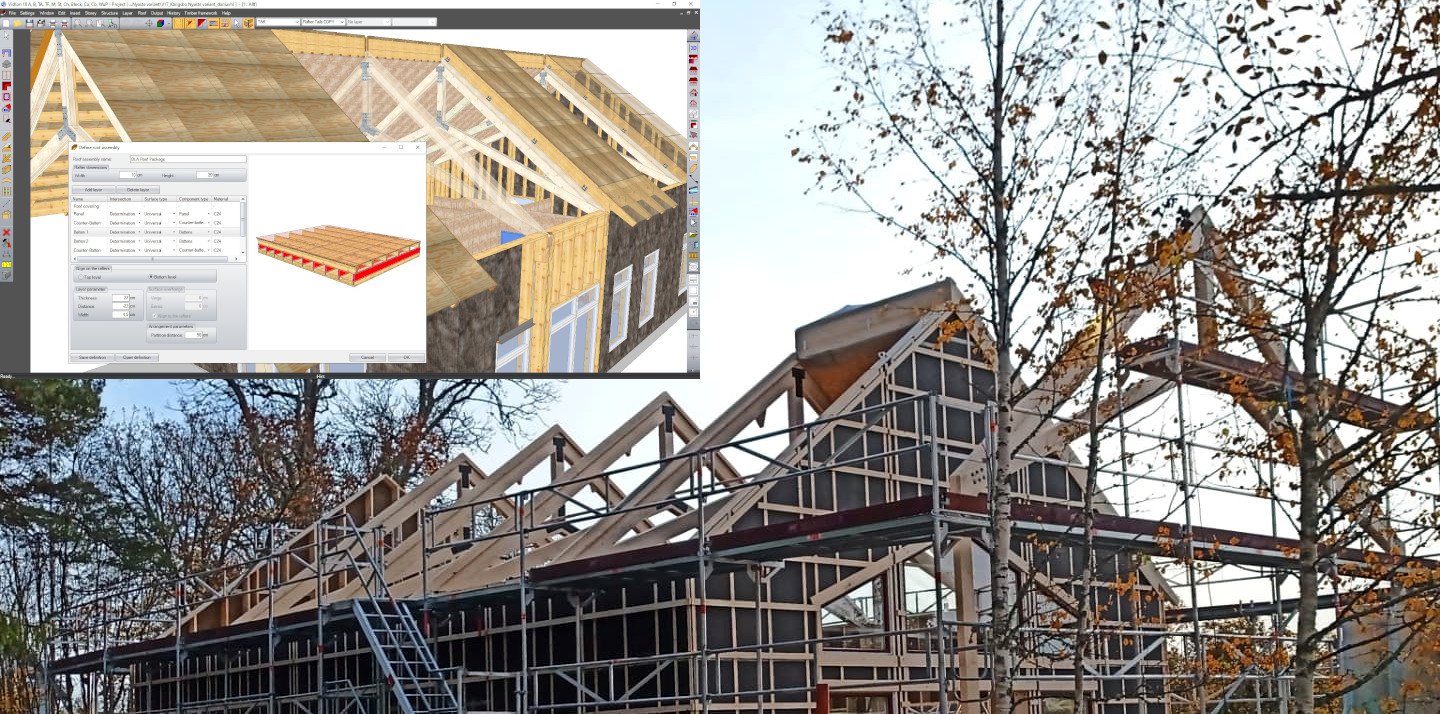

Beams, Collar beams/ties and Rafters placings / Exposed rafters (double structure)
- Beams placing/creation on Horizontally or whatever desired plane
- Simple and intuitive construction of components such as "inclined flight rafters"

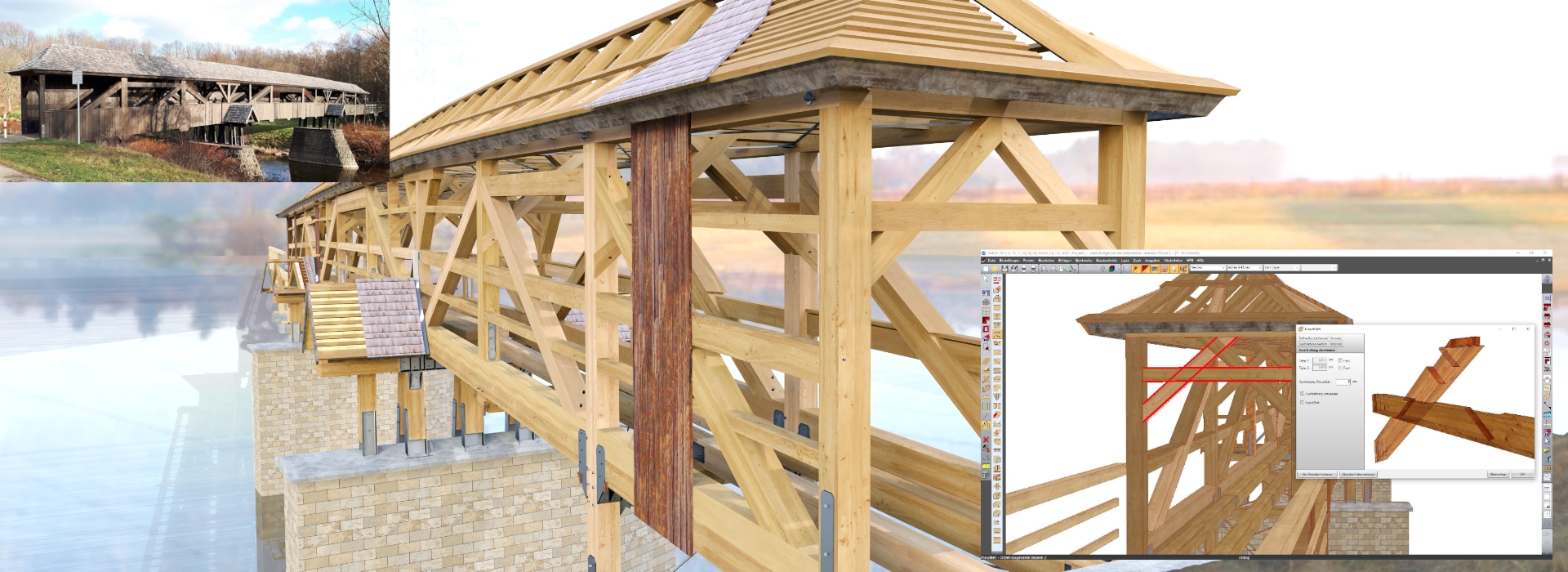

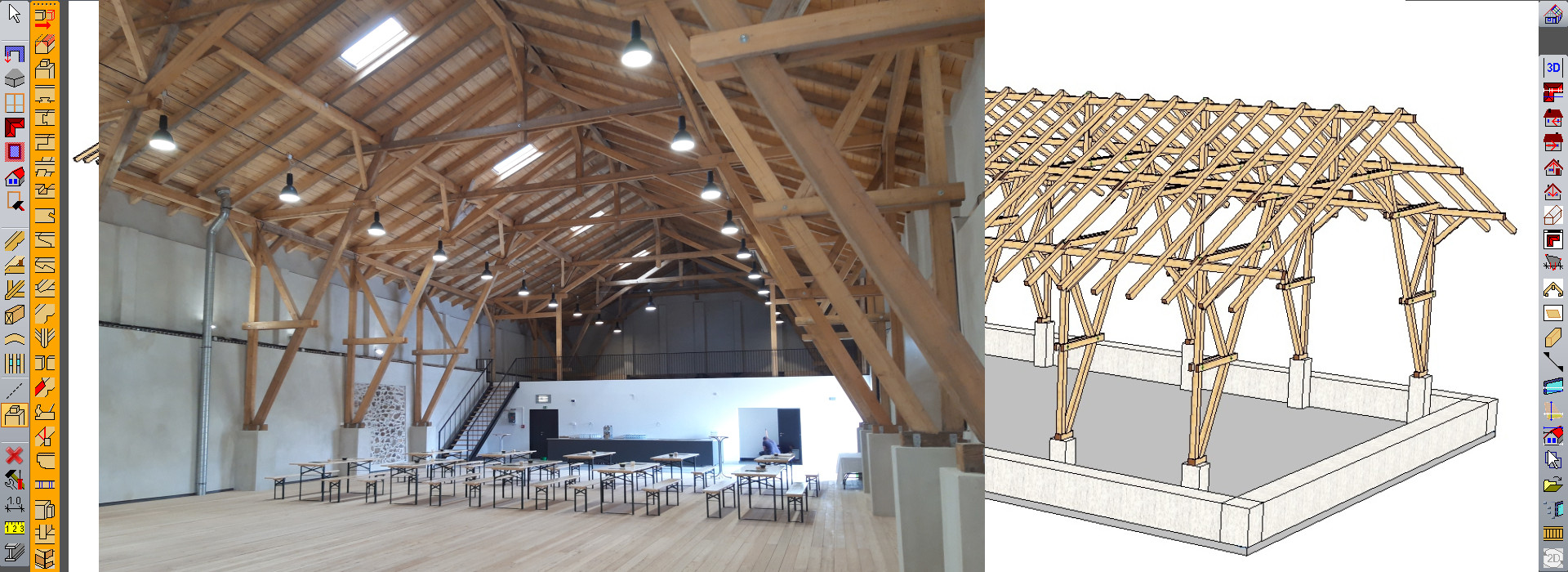

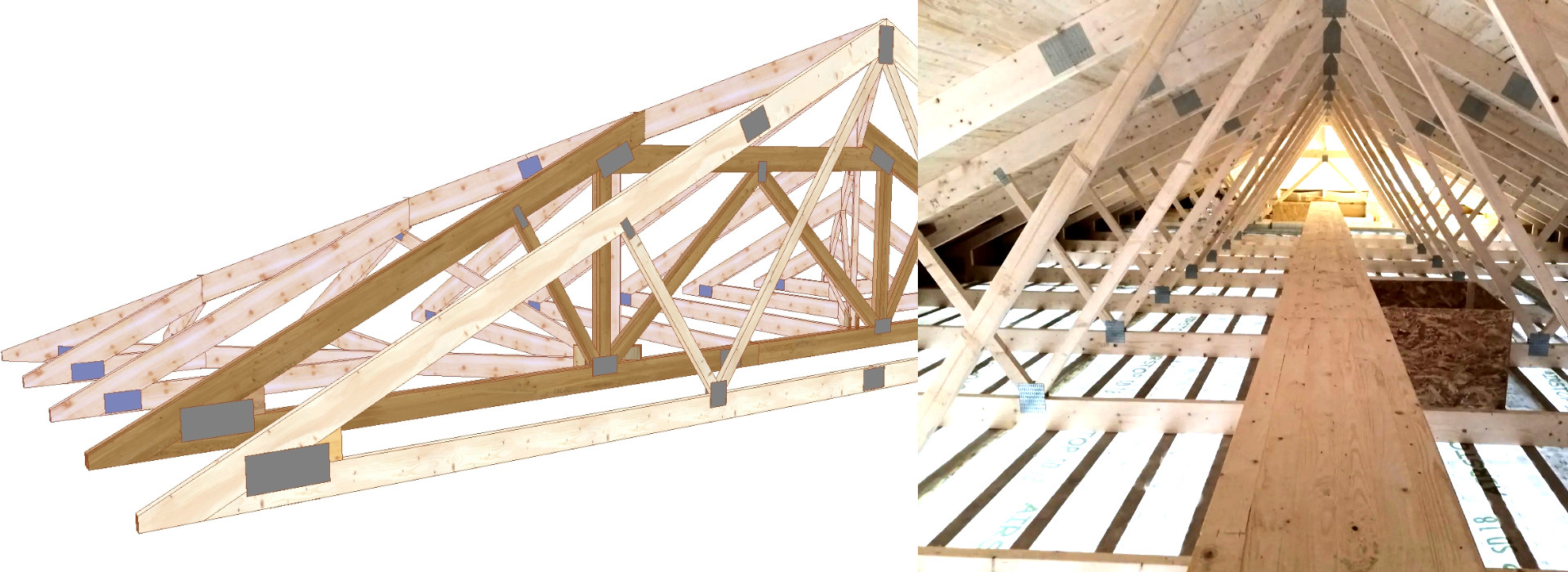

Free construction

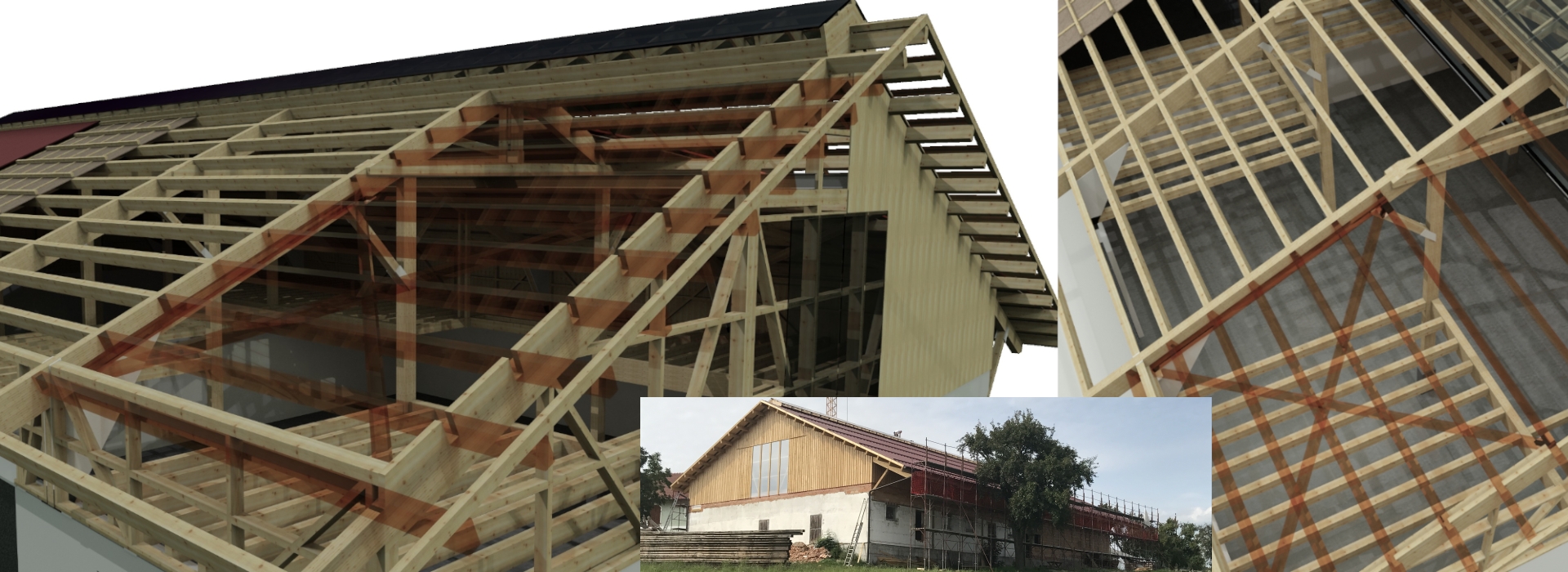

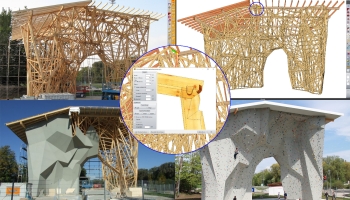

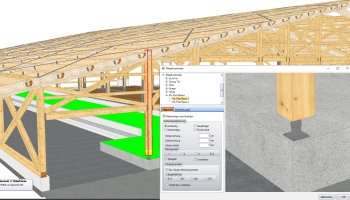

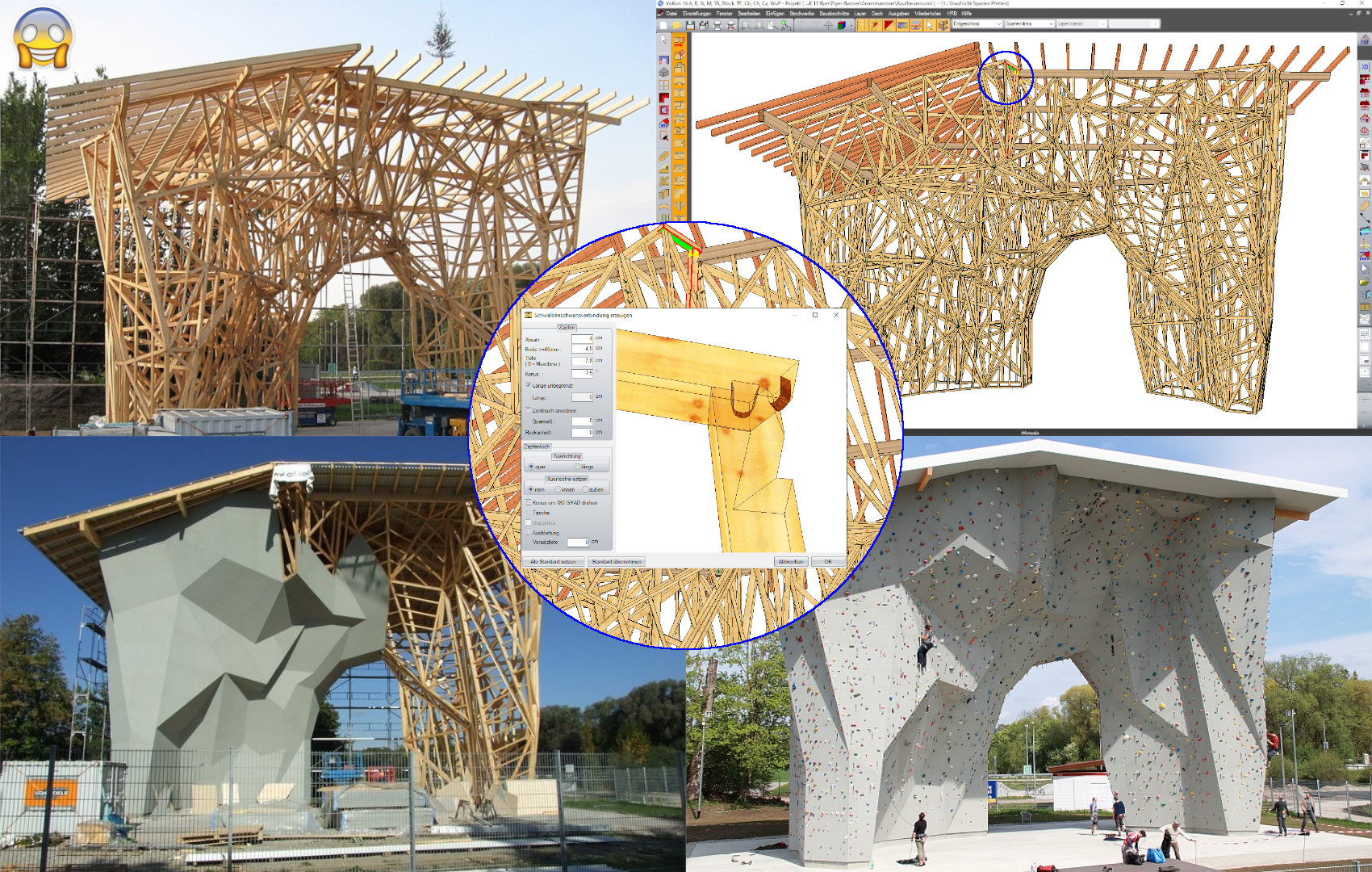

- Planning of complex constructions using free timber beams or steel joists in free plane and edit tools (e.g. reciprocal frame roofs, bowed roofs or completely free constructions)
- Steel profiles catalogue according to DIN 1025 / 1026

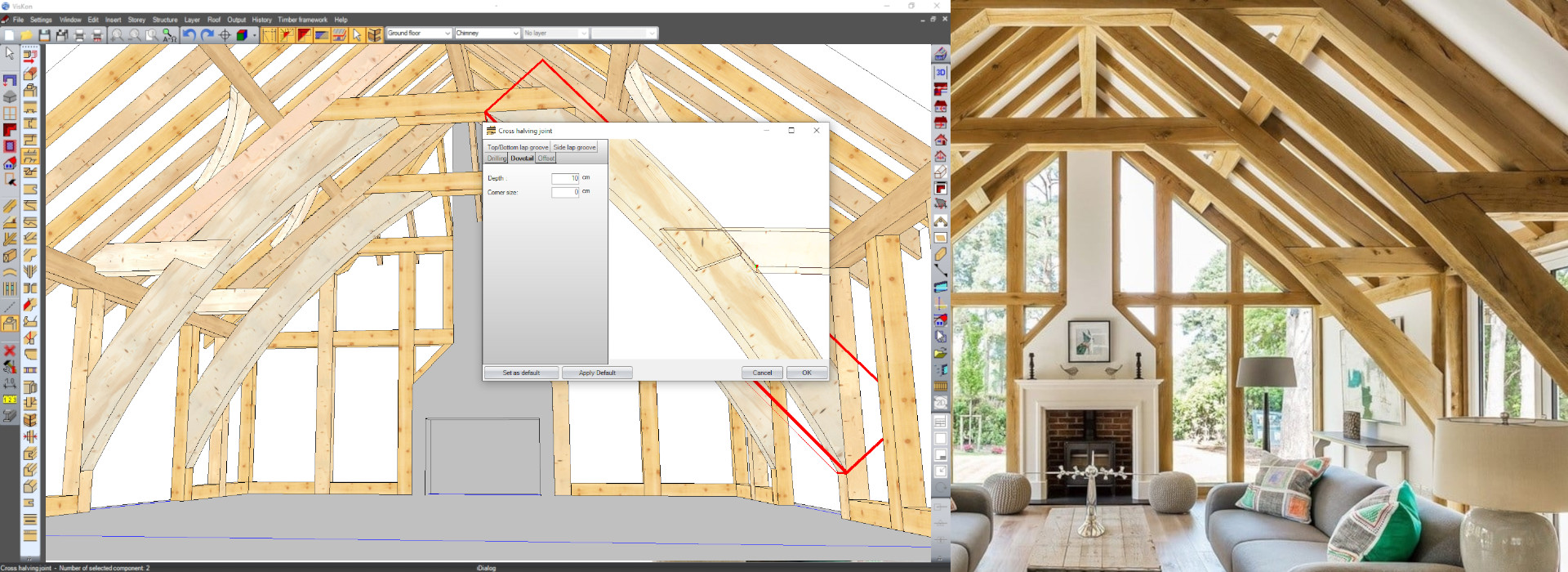

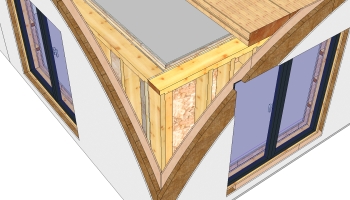

- Construction of curved woods and curved wooden frames

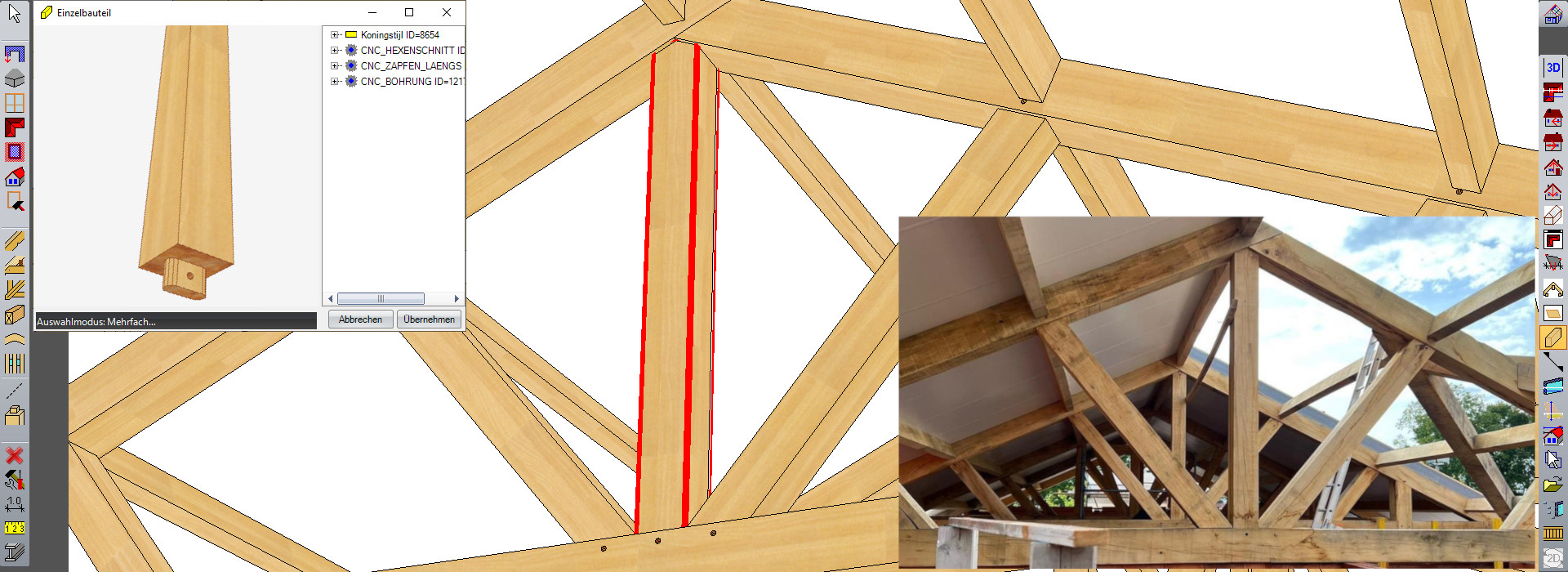

Woodworking in detail

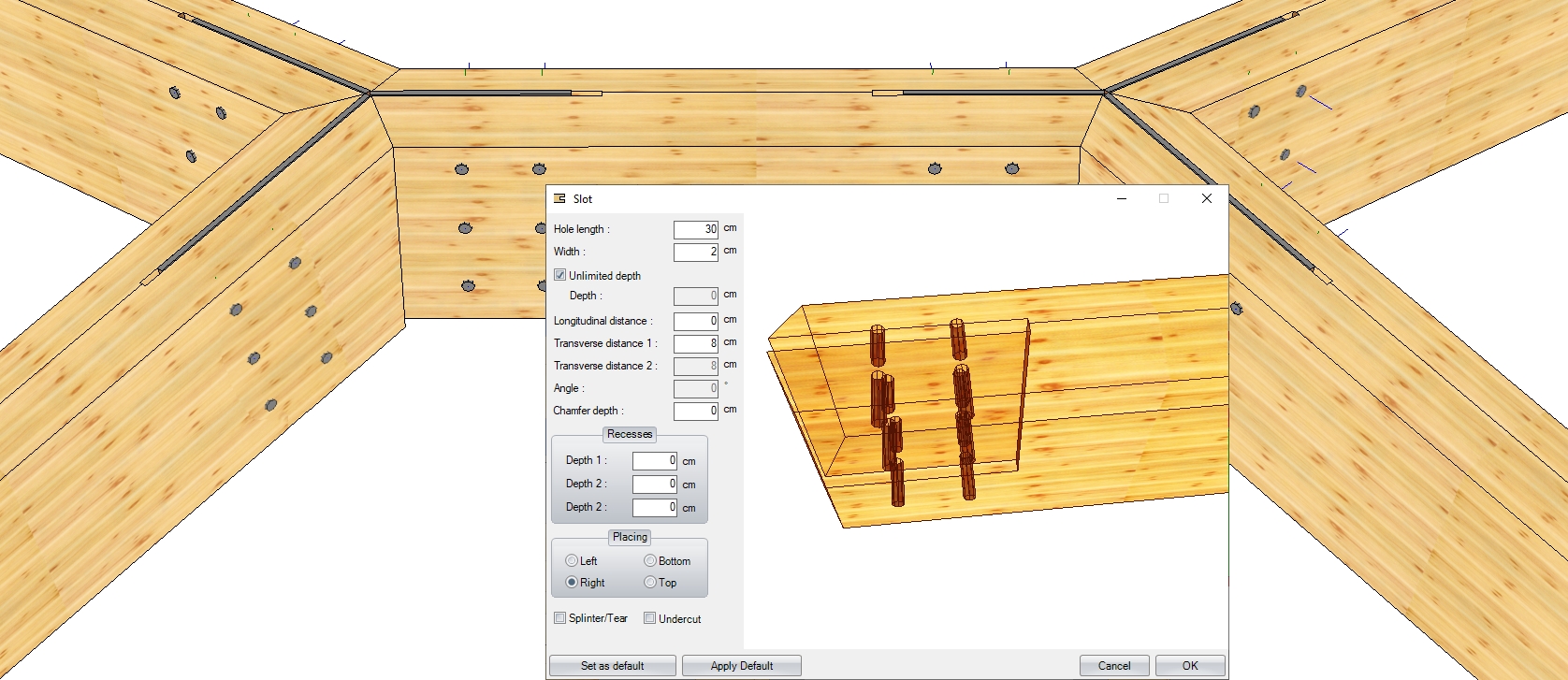

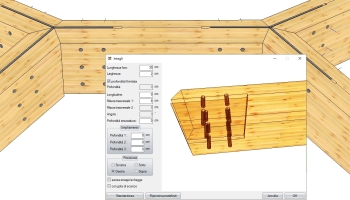

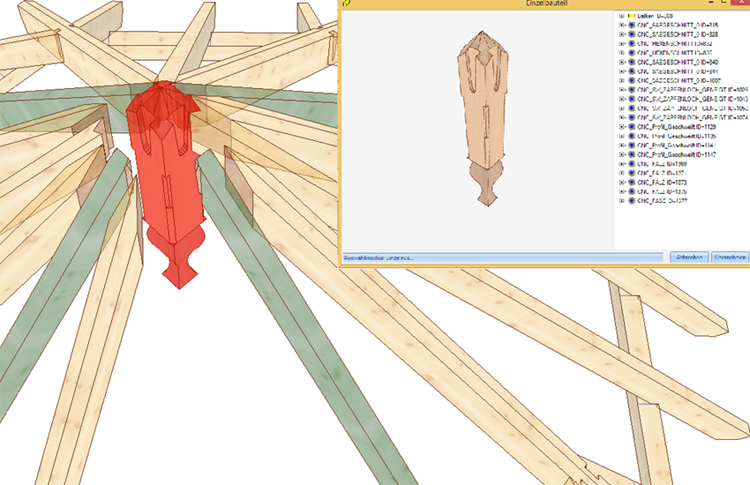

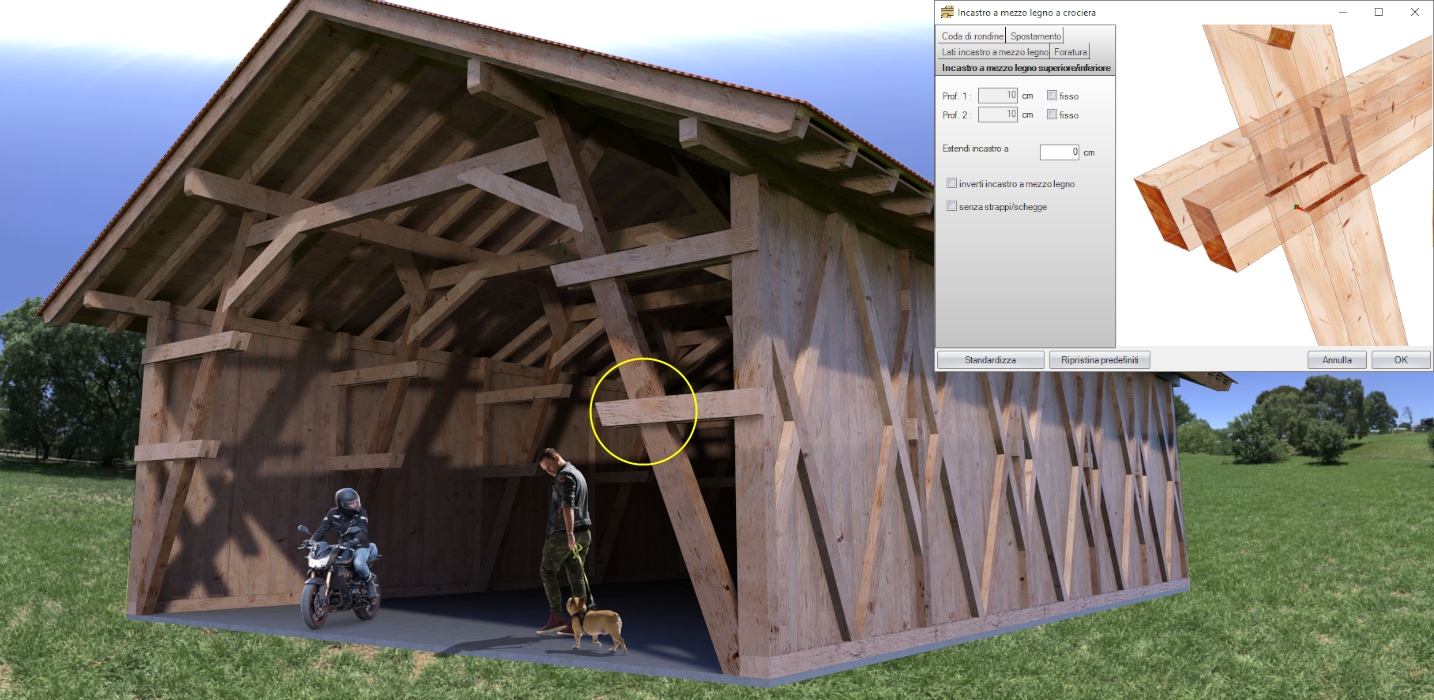

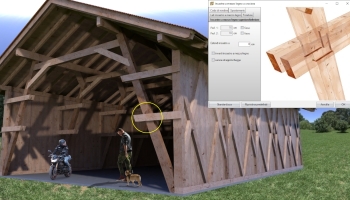

- Exact pre-planning for production of practical timber joints such as drilling, birdsmouths, lap-joints, tenons/mortises, dovetails, controlled cuts (cling/recess), chamfers, scarfs, heel joints, profiling (molding), slots, notches/grooves, rabbets, smooths, offsets and much more.
- Each joint produces automatic dimensions in technical drawings and machine transfer file for CNC machines
Various timber functions
In VisKon®, timbers can be designed on levels and freely in the building. This means that is possible to freely design constructions in which all the woods overlap.
- A floorplan designed in VisKon (by walls, slabs, or simply by 2D lines) or a plan imported as DXF/DWG, can be used to define roof perimeter for Roof Editor. That outline can be also automatically get it directly by a click on the 3D scene (from a 2D or 3D shape) in just a few second allowing to choose how to compose the roof. Obviously, roof tools allow to define how to compose the roof. For example, a simple rectangular roof can be done with 4 roof surfaces (a Hip Roof), with 3 (one Gabled Roof + 1 Slope) with 2 (a Gabled Roof or a L roof) or with one only. In a simple way, is possible to define where to define Roof surface where to remove it and get the expected result. So if your roof has 2, 7, 13 or what else roof surfaces, you have simply define a perimeter and own side properties.
- A catalogue with over hundreds roof tiles is available on the roof editor
- Roof windows and Chimneys tools automatically adapt Timber Construction creating eventually beams joints selected.
- Generate eaves recess/projection with just 3 mouse clicks
- Free post-processing of all roof surfaces with custom roof merging
- Mirroring of roofs, walls, drills and singular components
Presentation of projects in 3D via Sketchfab
The projects created in VisKon can be published as 3D models on Sketchfab* and viewed in the browser, on tablets and smartphones. Ideal for presentation to customers.
*a (free) Sketchfab account must be created.

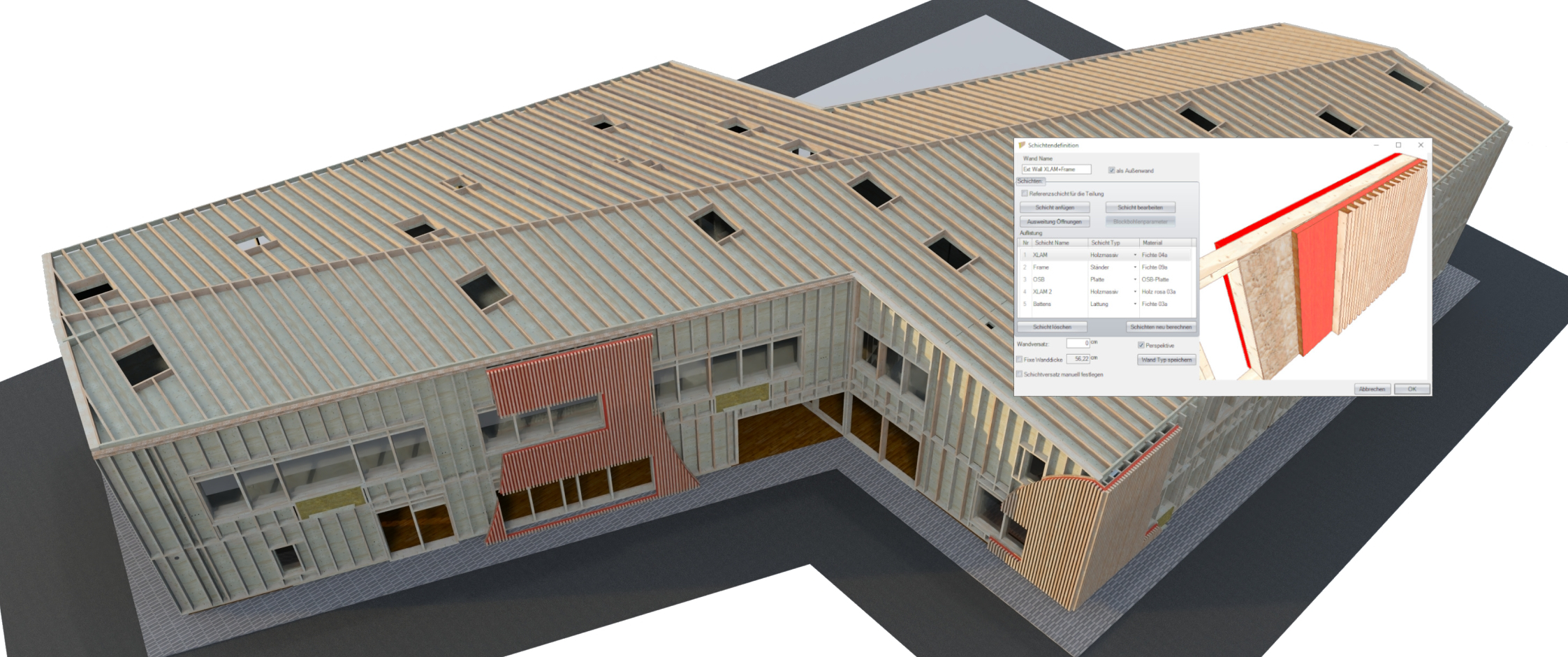

VisKon B (Wall module)

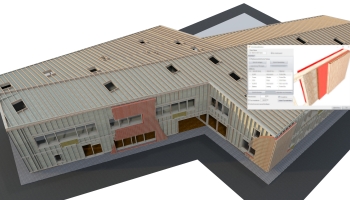

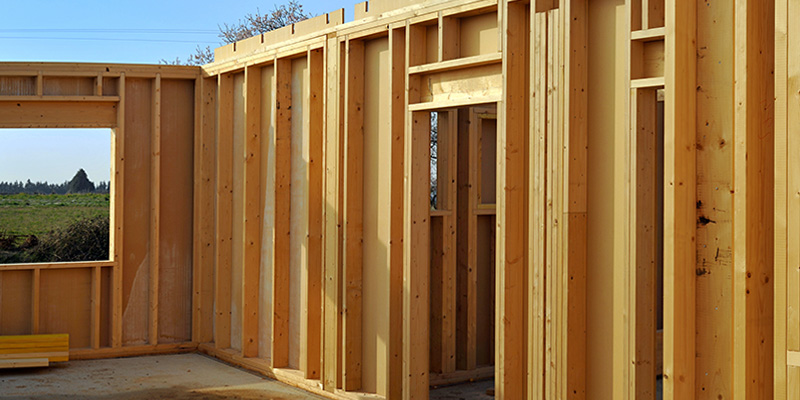

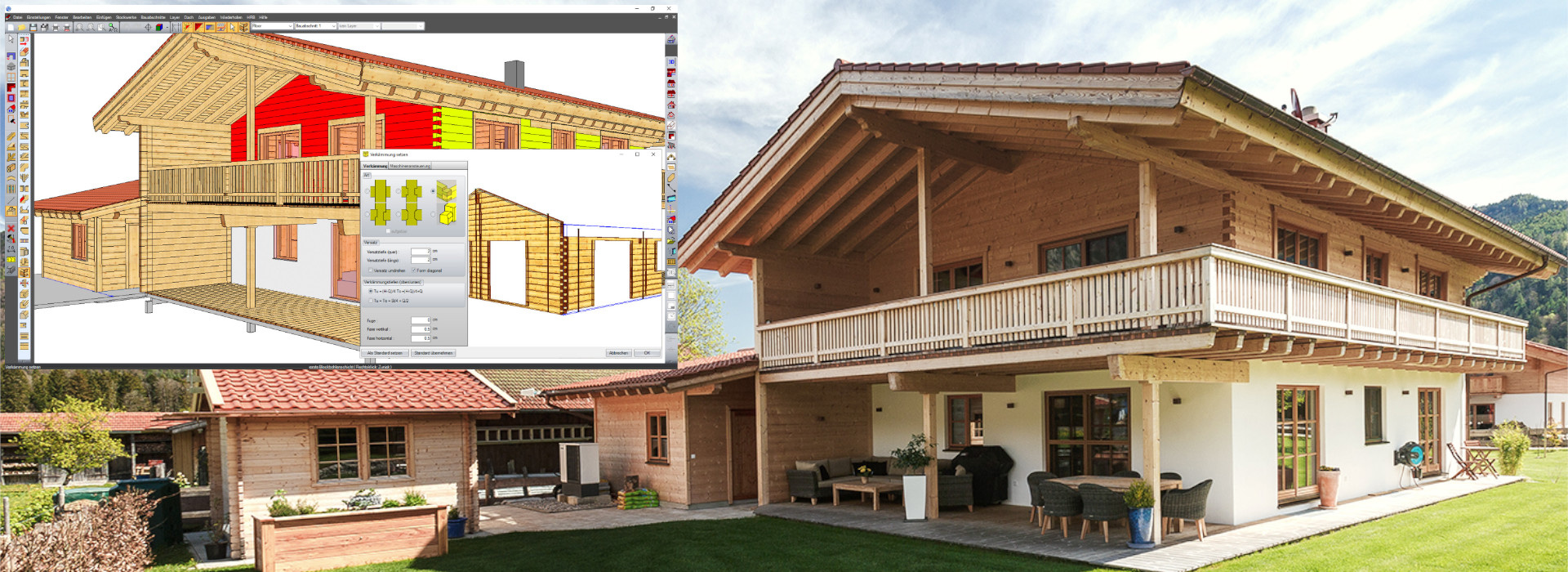

VisKon enables you to create complete Timber Framing projects with customized walls, exposed roofs with a double timber structure and multi-beams positioning in one program. VisKon offer specific tools that allow to design and to produce Timber Framing buildings, Half-timbering buildings or Block (Log) Houses.
Wall corner and joint system
A parametric tool, allows to define and save corner rules to use according with the corner type and the specific wall models to merge. Resuming, this tool allows to specify that Layer n° X of one wall should reach Layer n° Y of the other wall to joint. Another useful feature is that you can turn on additional Studs to support the corner.

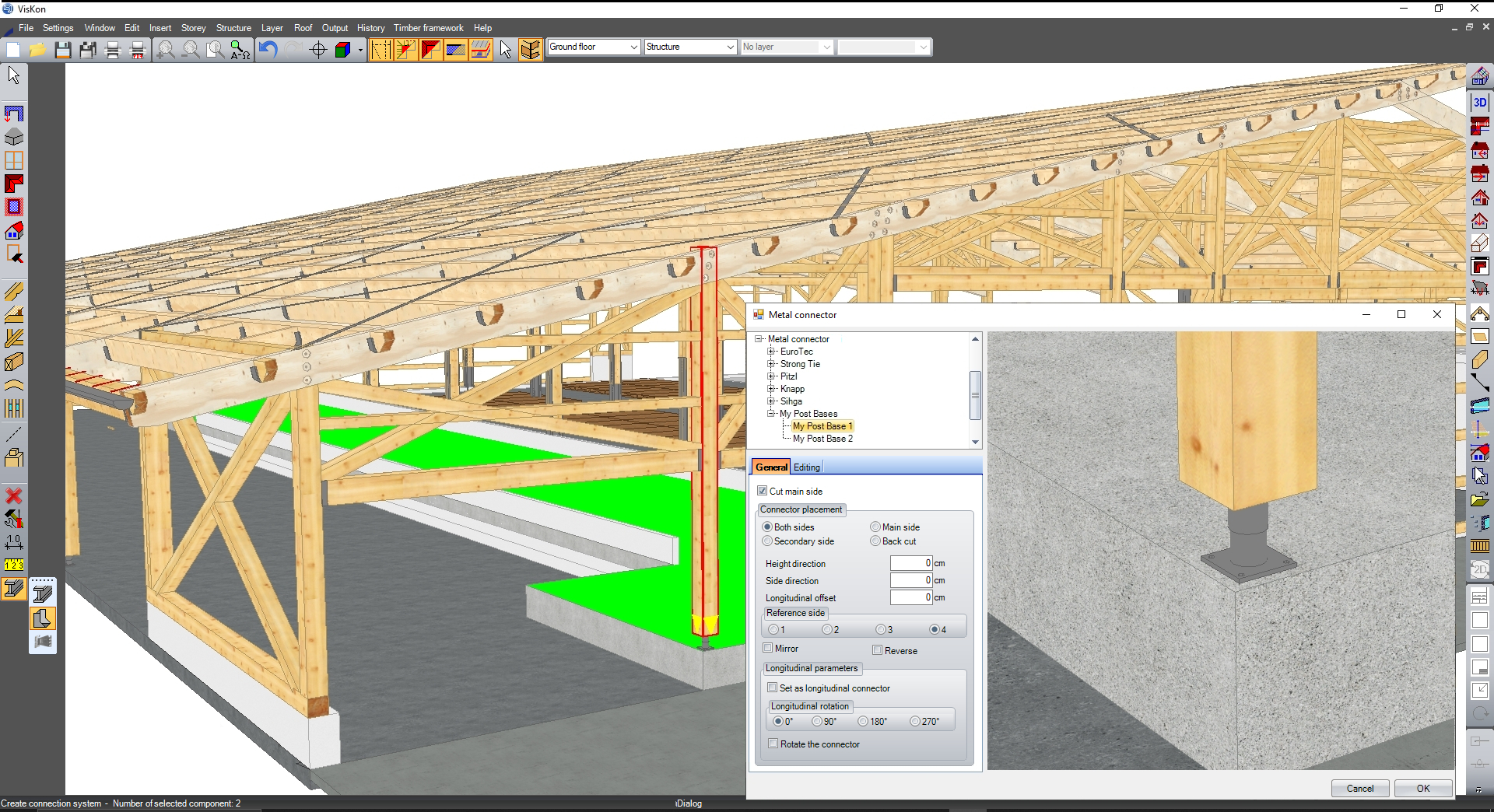

Joints/Connections
In VisKon is possible to define each kind of connection you like. It’s also allowed to mix structures: for e.g. Ground floor as Block Houses and the Upper storey with Timber Framing Walls with different thickness and without getting problems. It’s also possible to use sliding rails within connections customizing depth joint. VisKon can also display round and profiled logs instead to manage the traditional squared beams.
Automatic dimensions

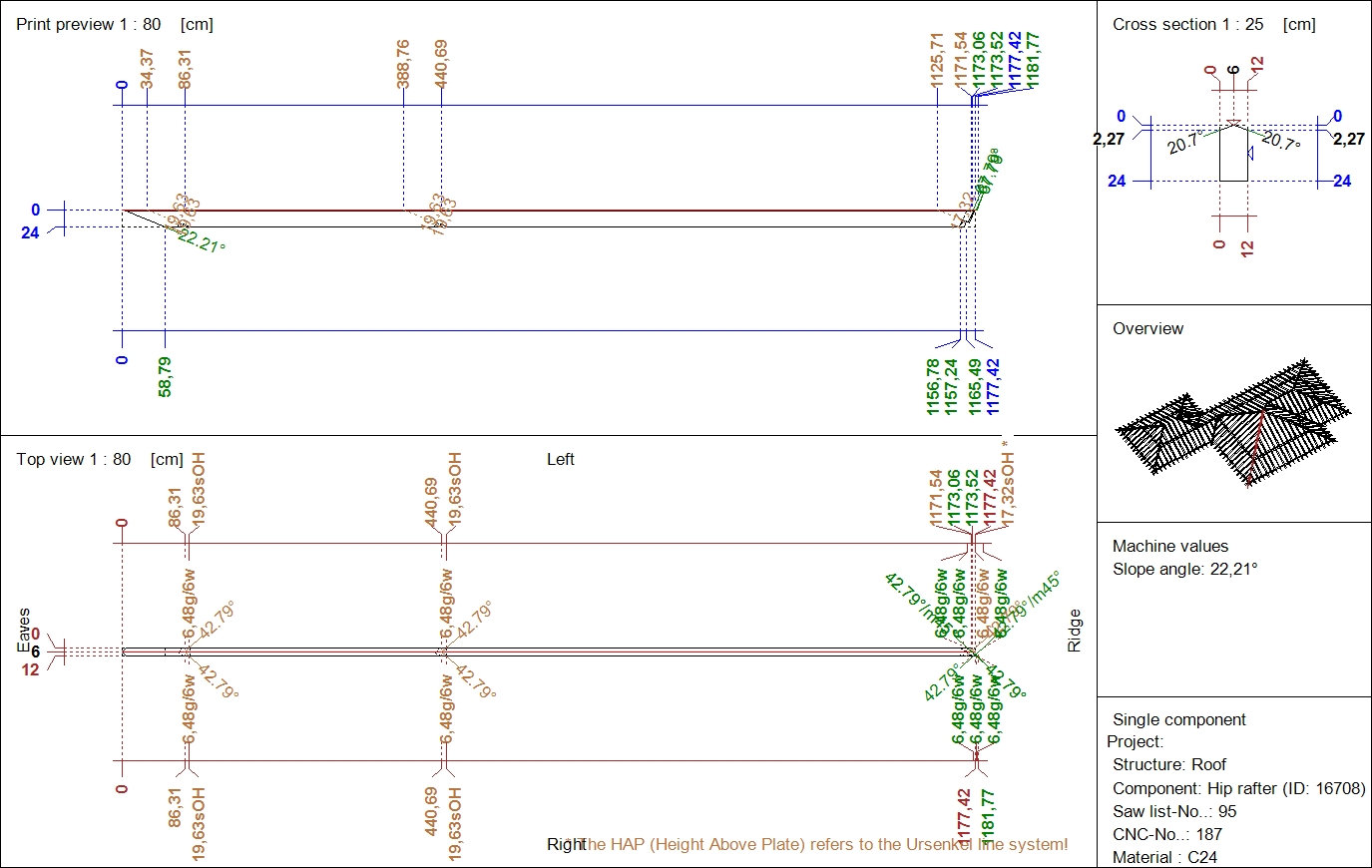

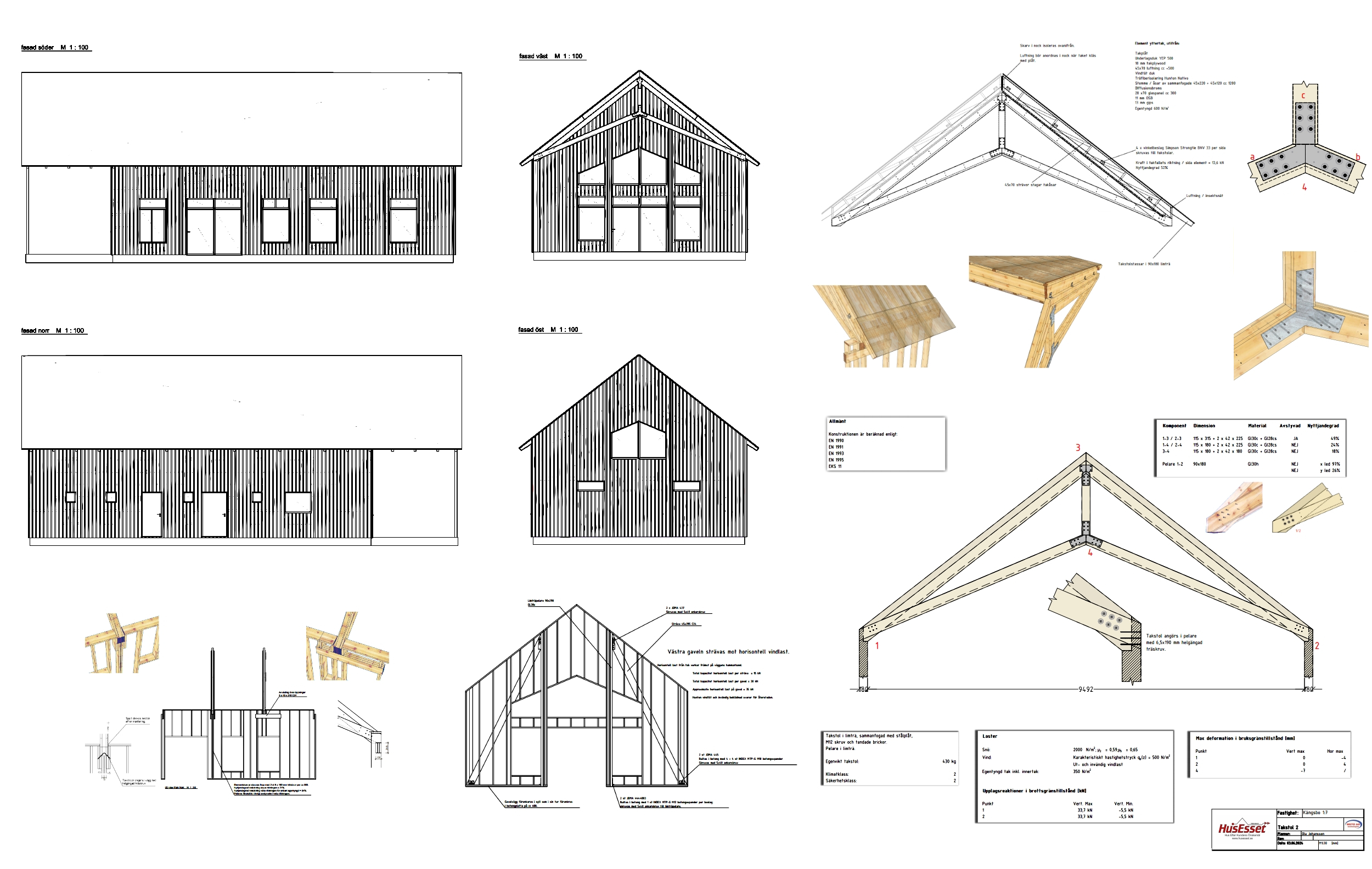

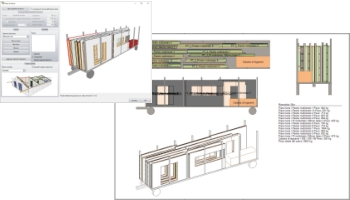

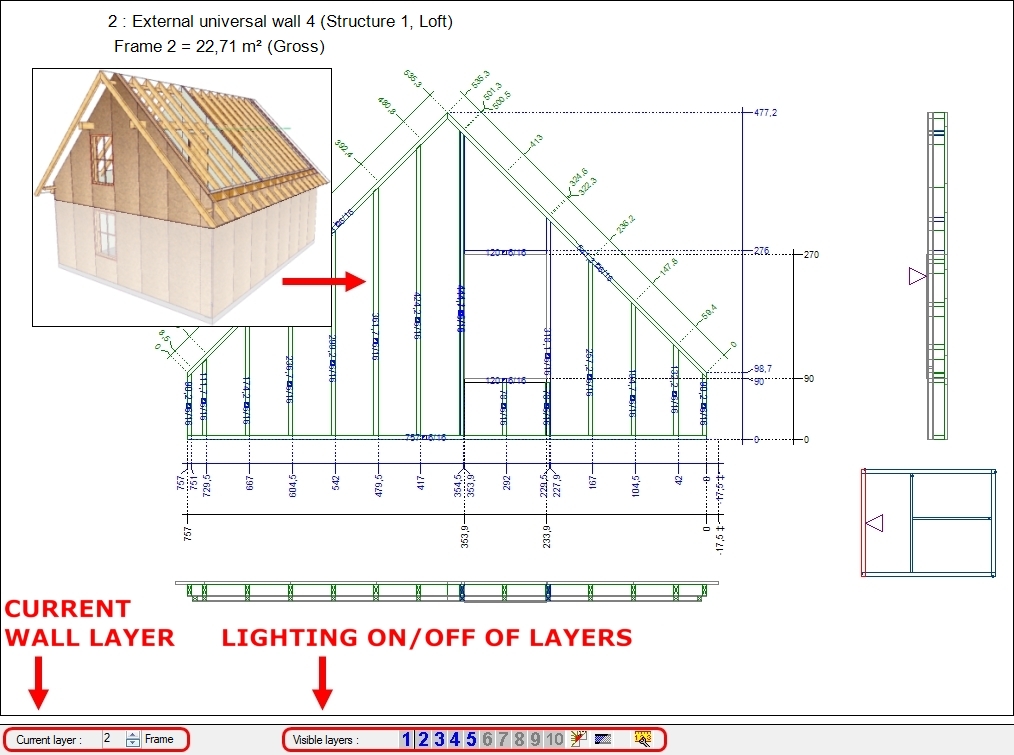

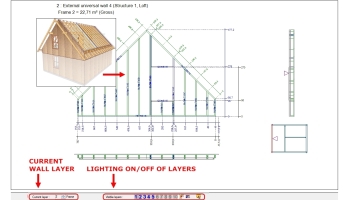

Just a mouse click on a wall and special VisKon button will produce the Technical Drawing of the Wall provided with Automatic Dimensions. It’s allowed to change colours of dimensions and components for frames, log planks and panels.

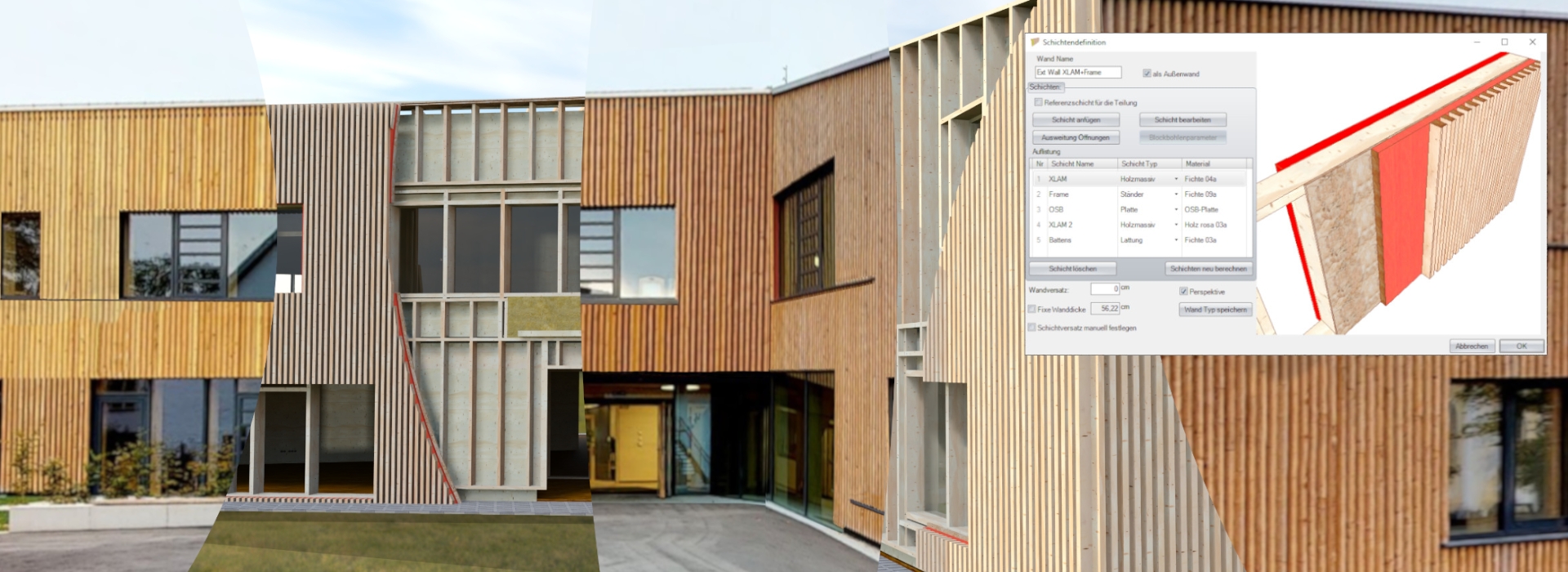

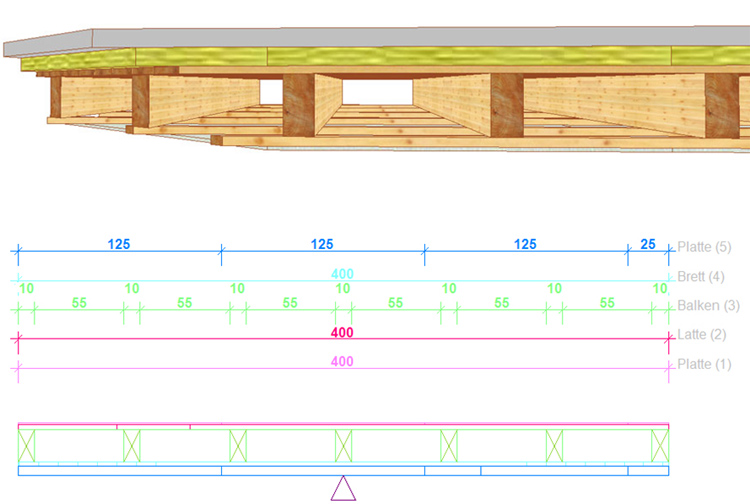

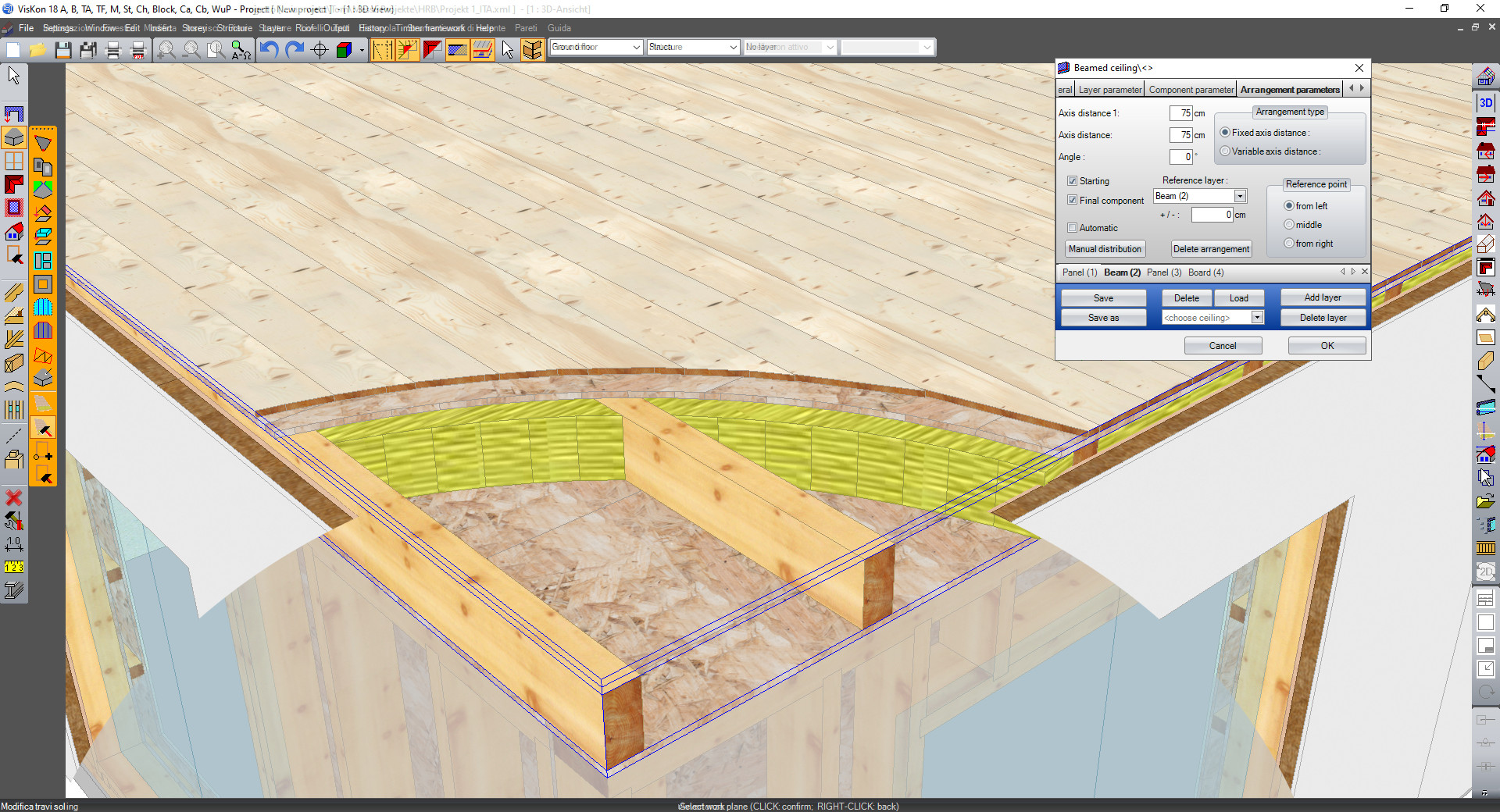

Input of different wall layers

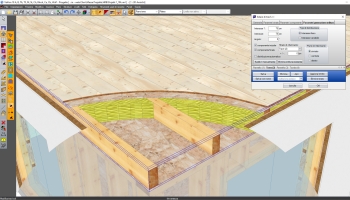

Input of various wall definitions with real-time 3D preview. Creation of up to 10 wall layers as frames, panels, battens, canopy boardings or log (block) planks, universal and massive.

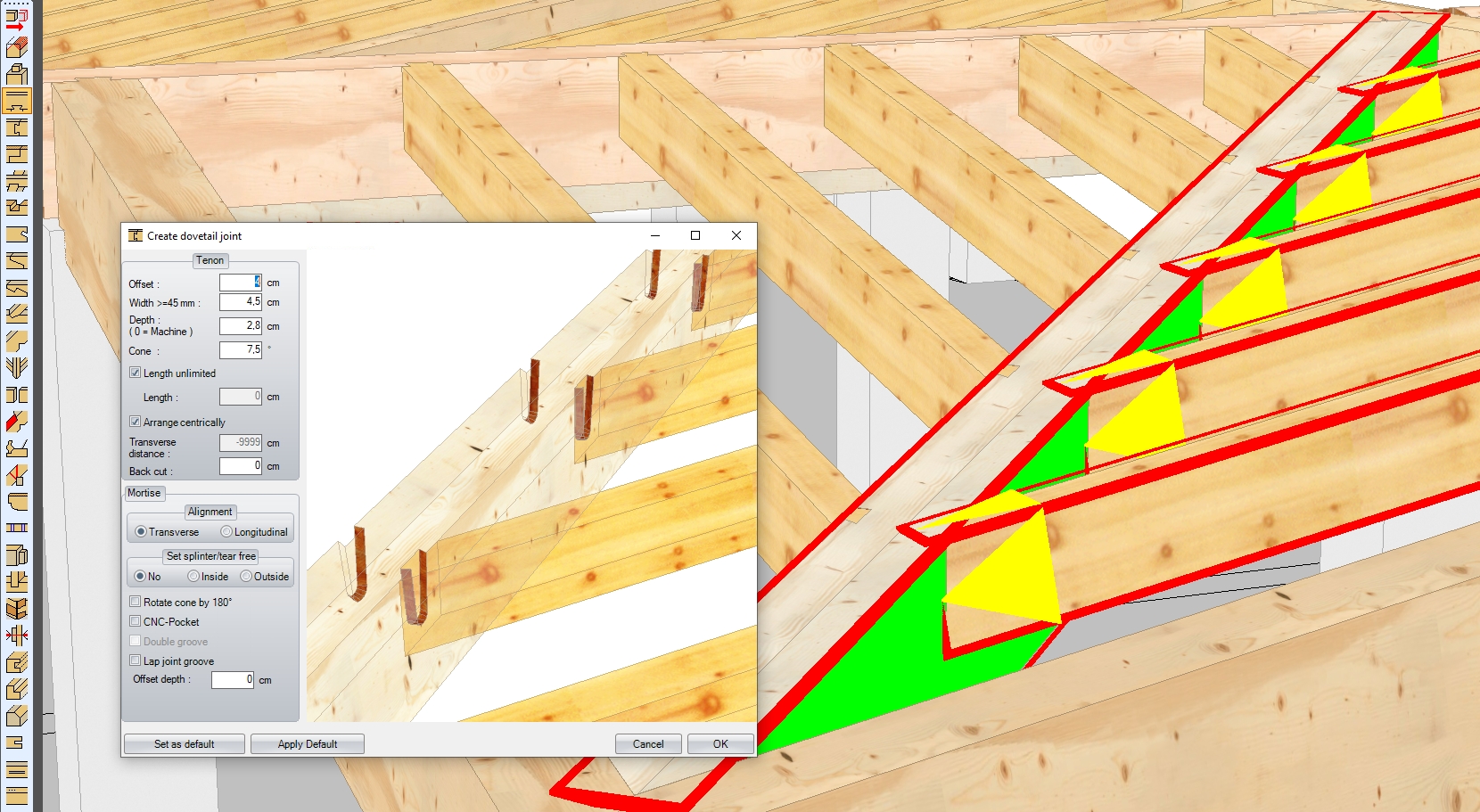

Dovetails

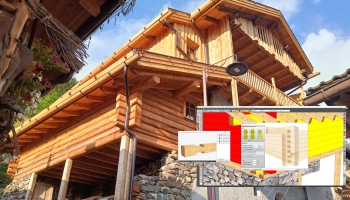

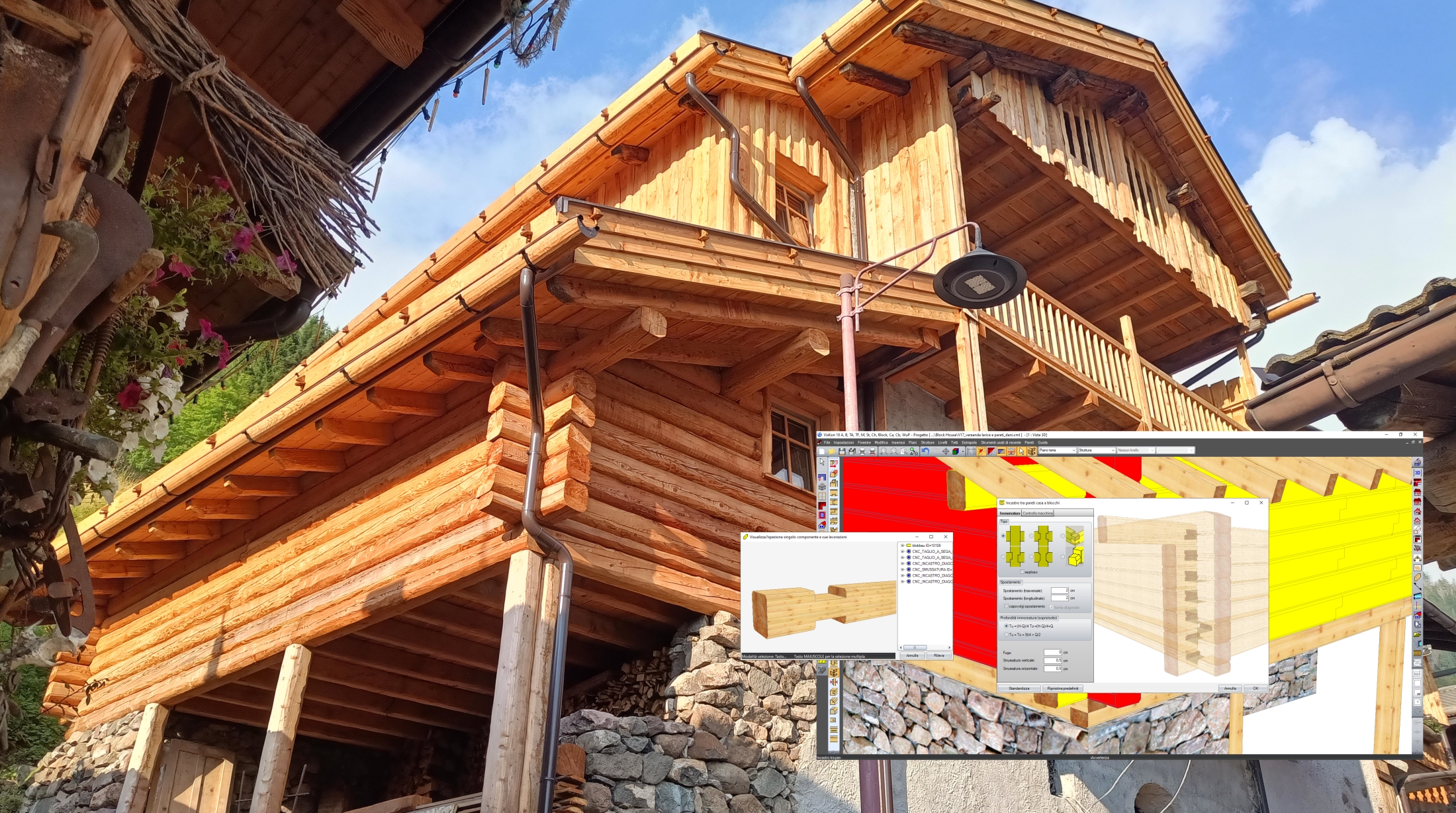

Standard dovetails apart, VisKon for Block House (Log House) project supports special dovetail joints (and other typical logs joint) for this building type. It’s also possible to use dovetail joint even for inner walls.

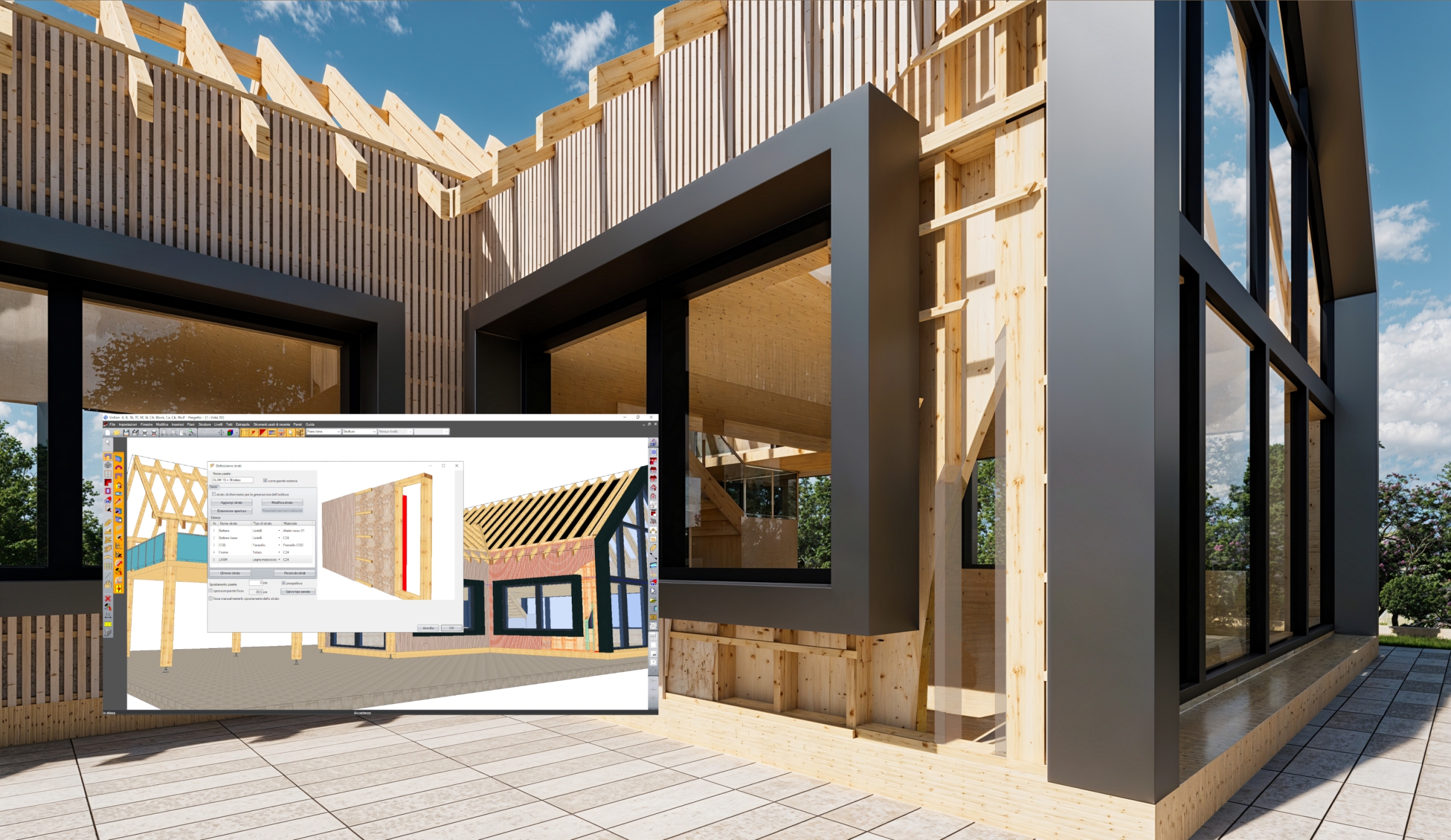

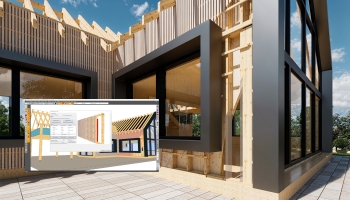

Windows and Doors
In VisKon B (wall module), an useful real-time preview helps to freely enter windows and doors in 2D or 3D. Window/Door Editor adjusts in real time any new or existing opening placed in according of new geometry. Additional parameter are available for log (block) planks.
Machine output (CNC data exchange)

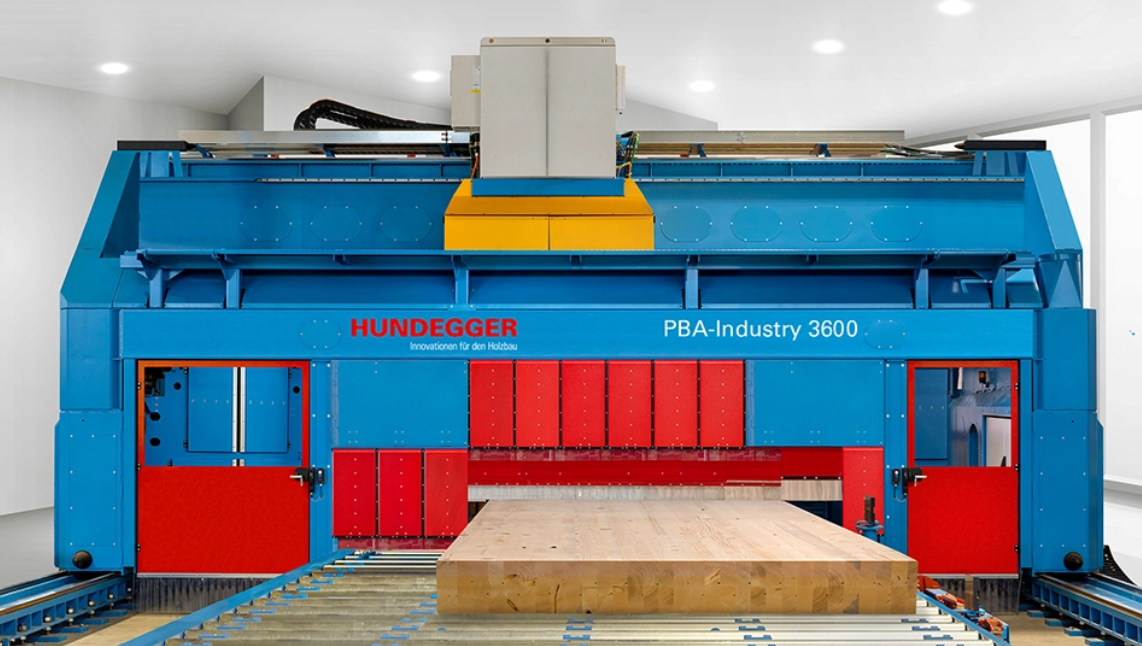

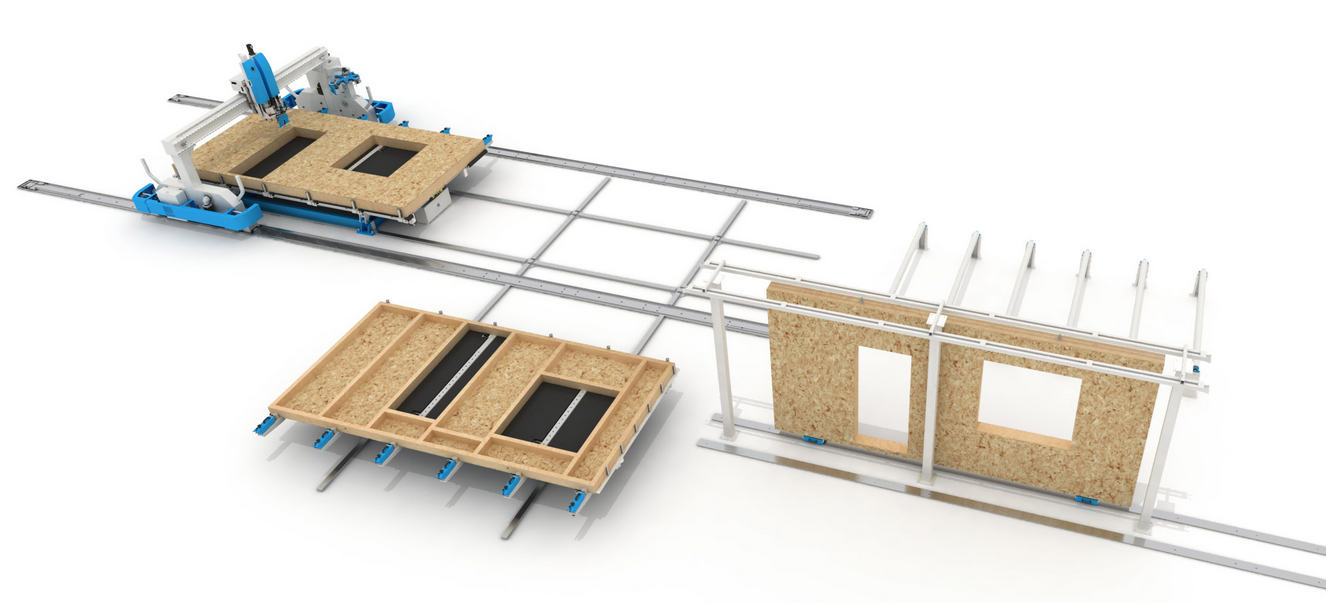

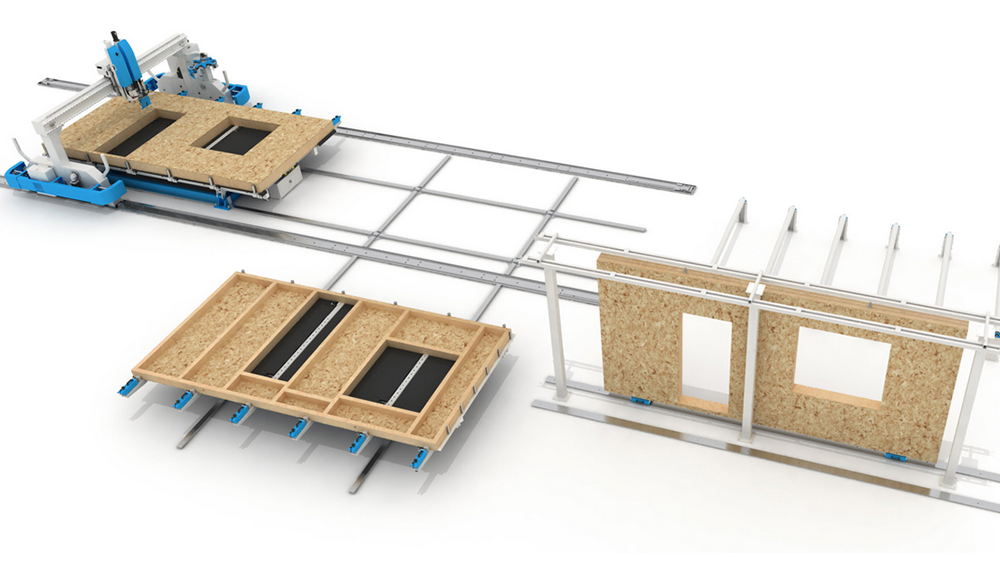

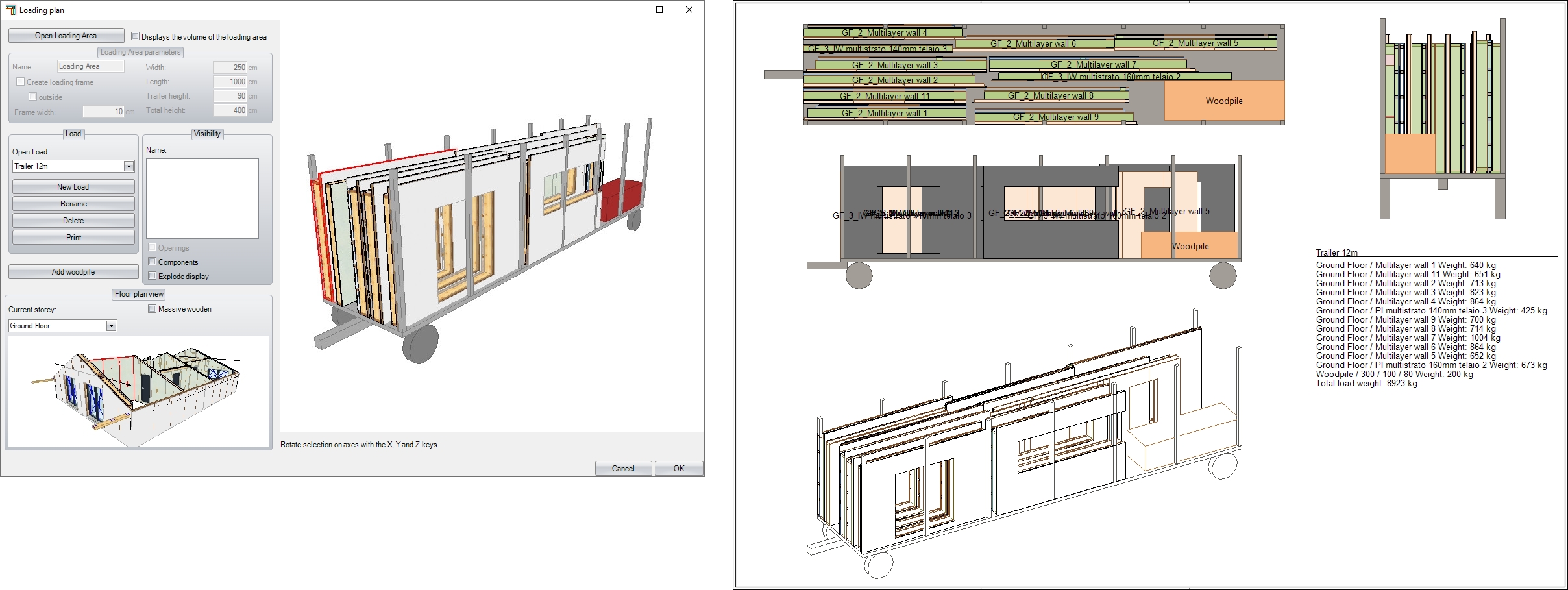

To increase production, the wall output process will package single wall layers together. This is done to generate univocal ID numbers for each Timber piece letting carpenter to easily assembly (Abbund) the wall. Solid wall layers (e. g. Cross Laminated Timber as XLAM), CNC machine units and nesting as well are supported.
VisKon C (CNC module)

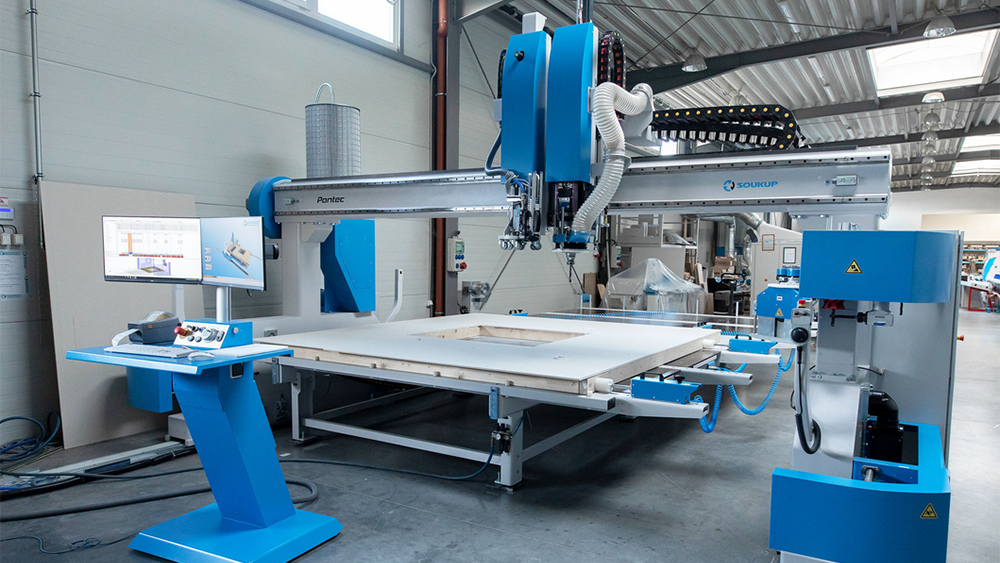

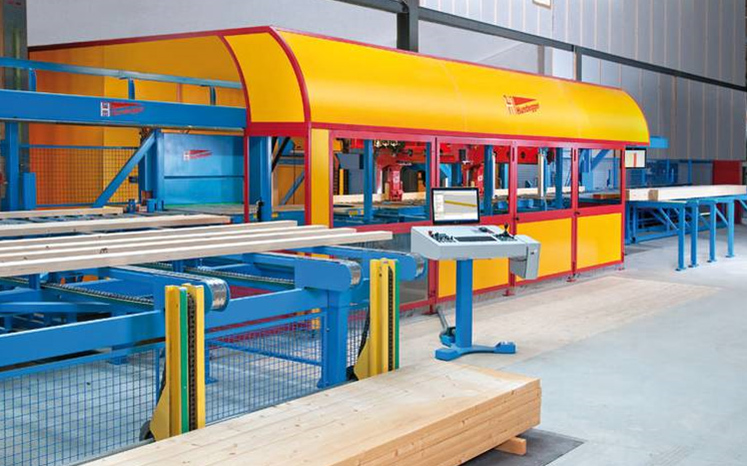

Perfect transfer to joinery machines

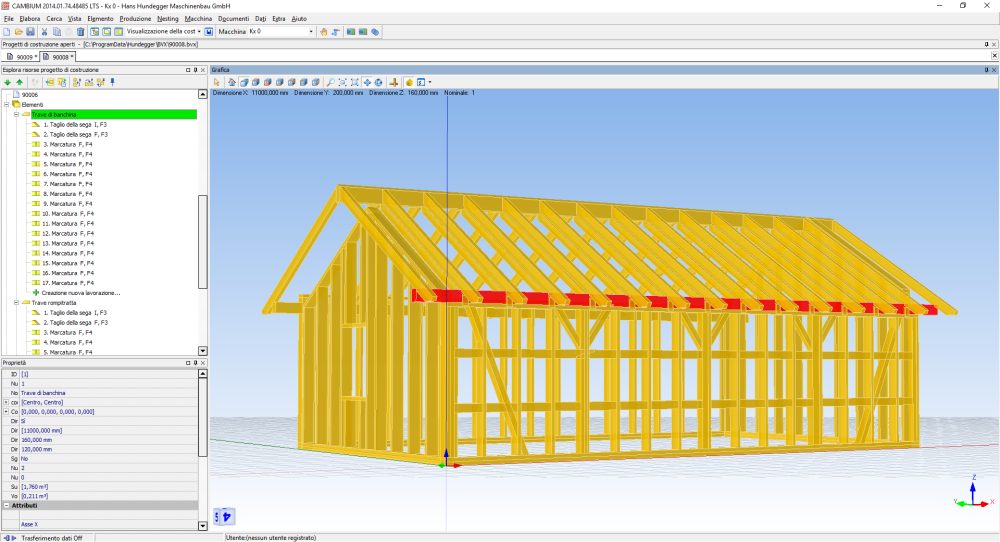

Roof constructions, log planks, stud frame constructions can be combined in VisKon® as desired. About Block House, log planks joints are supported and it’s possible to add connections as hooked scarf joint, tenons, drills, slope trims, etc. can be created on all wooden components and transferred to the CNC machine. The CNC joints are automatically well converted into the desired machine format (e. g. BVN, BVX, BTL etc.). Transformation from drawing to joinery file is accurate according with standardized CNC component processing types (machine units).
3D Labels
Perspective (3D) View can be created by a click. Views are totally free, you can choose any point of view that you like, simply typing the desired View and Inclination angles. On perspectives, you can simply ‘light on’ CNC Component Numbers, Lengths, Area, etc... and individual processing steps. For quick item recognition on the drawing, each component type (rafters, purlins, studs, etc..) is represented by a different colour.

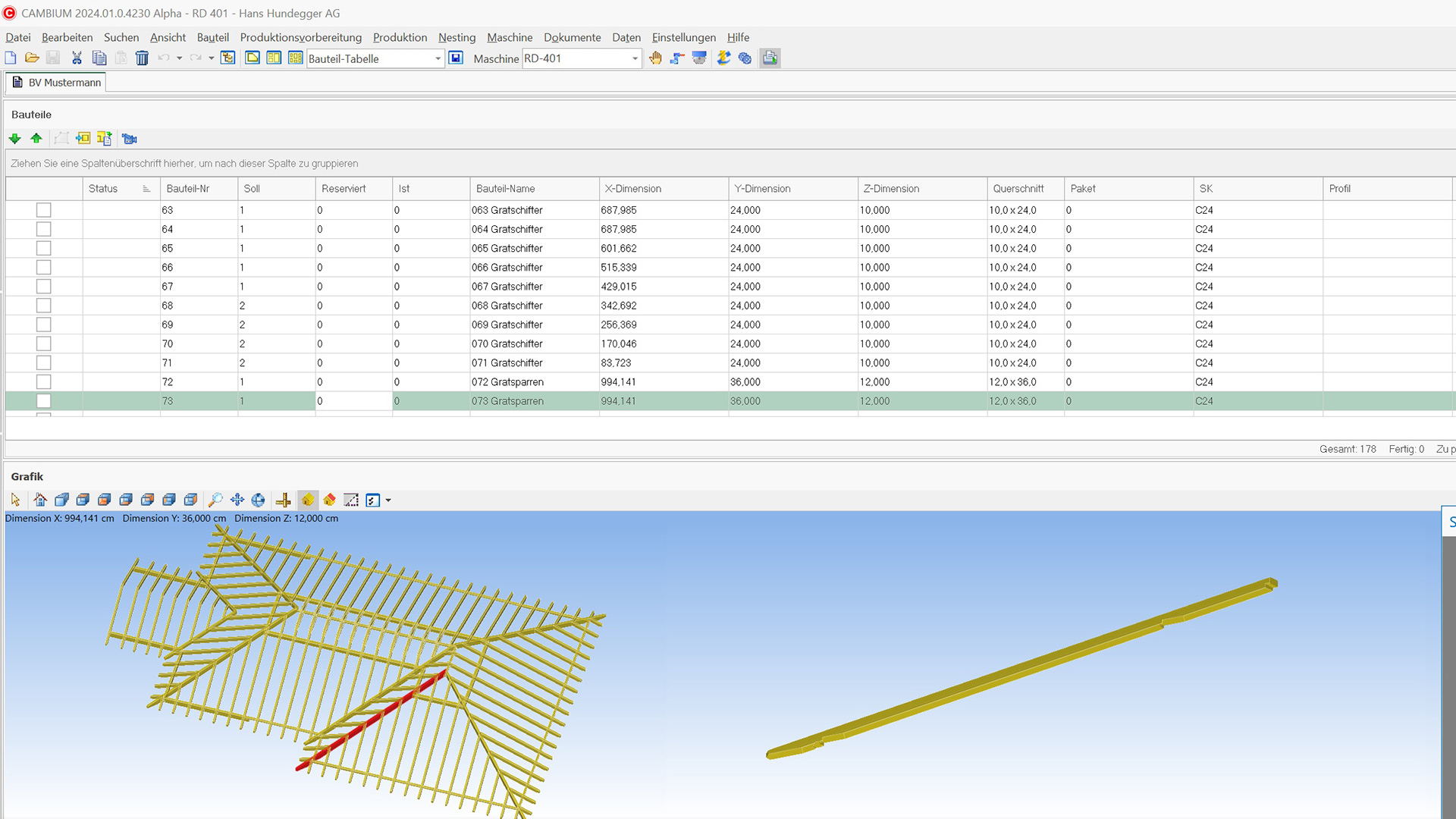

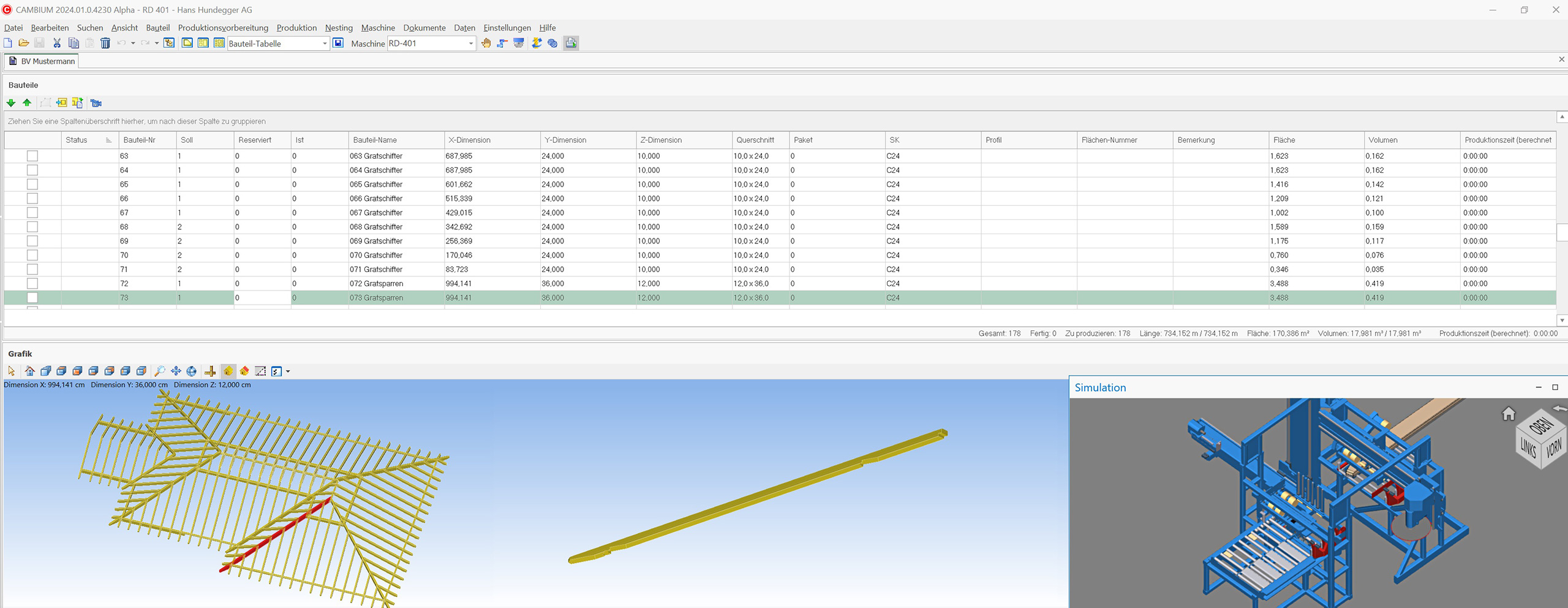

Converter
Weto-Converter is a Windows program specially developed to convert K1/K2 file (*. bvn) generated by our software into a specific-machine file (*. btl) or Hundegger-P10/P8 file (*. bv). Based on our machine control system, it can easily control the joinery machine with Weto program. Main focus of our software is to offer easy and user-friendly programs.
Supported machines:

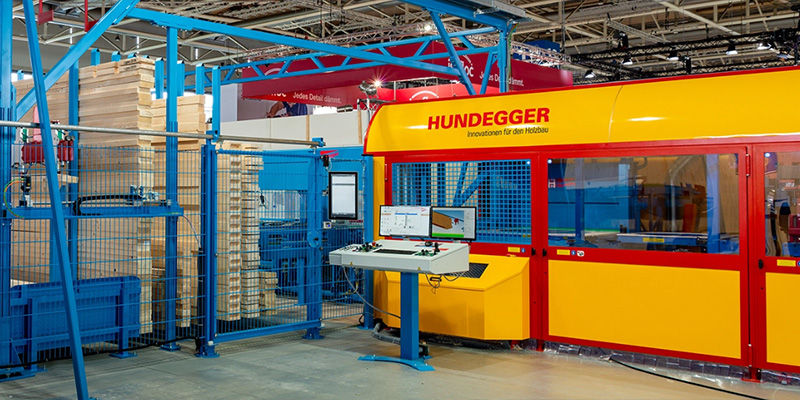

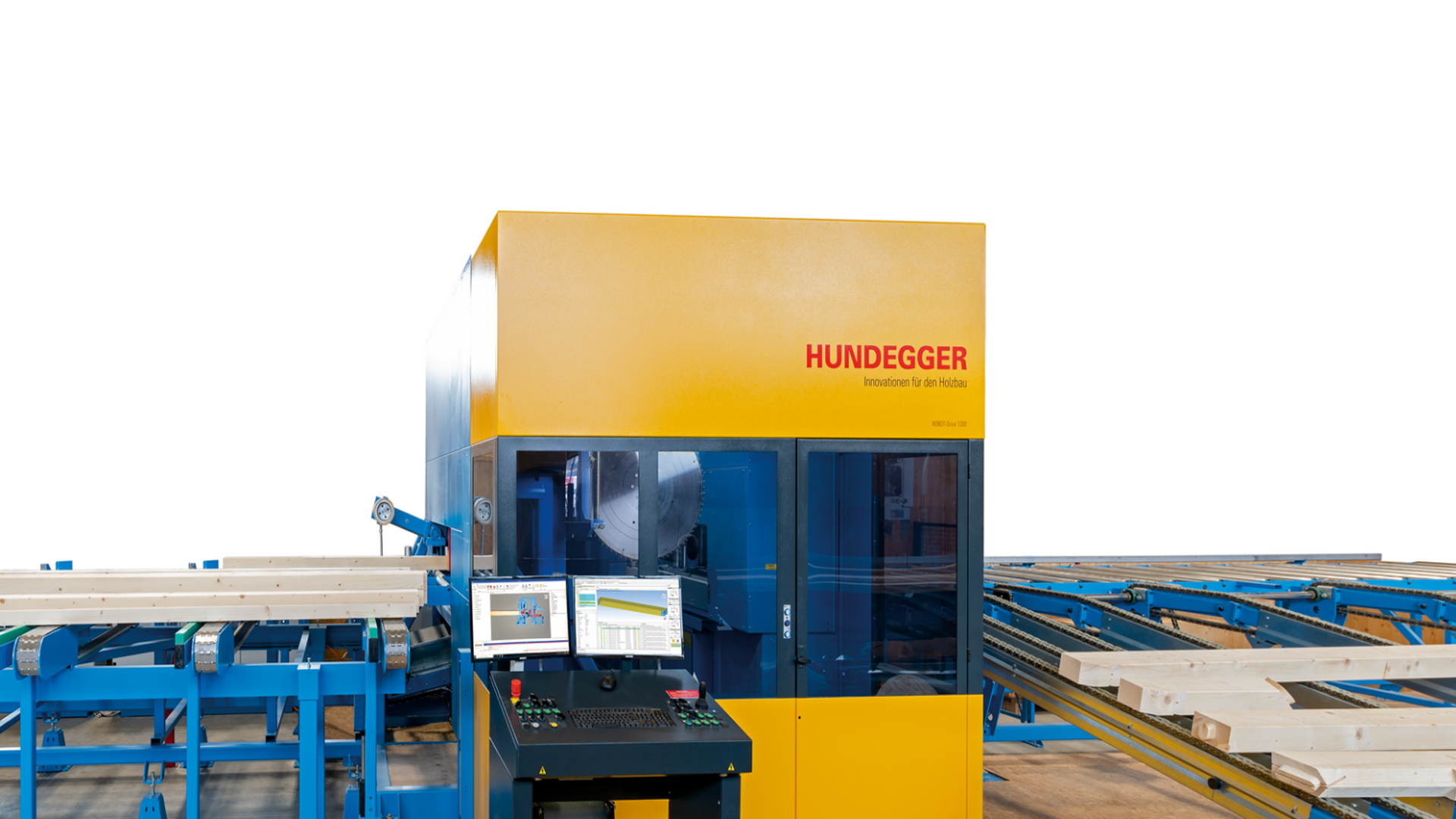

Hundegger, Schmidler, Hüllinghorst, Burmek und Maffel all machines using machine control software done by Sema, Hundegger or Integra3000).
Default settings:
A large of pre-settings and optimization for own machine, can be applied.
Status report:
Detailed report of conversion results in to your machine file format
Prerequisite:
WETO machine control
