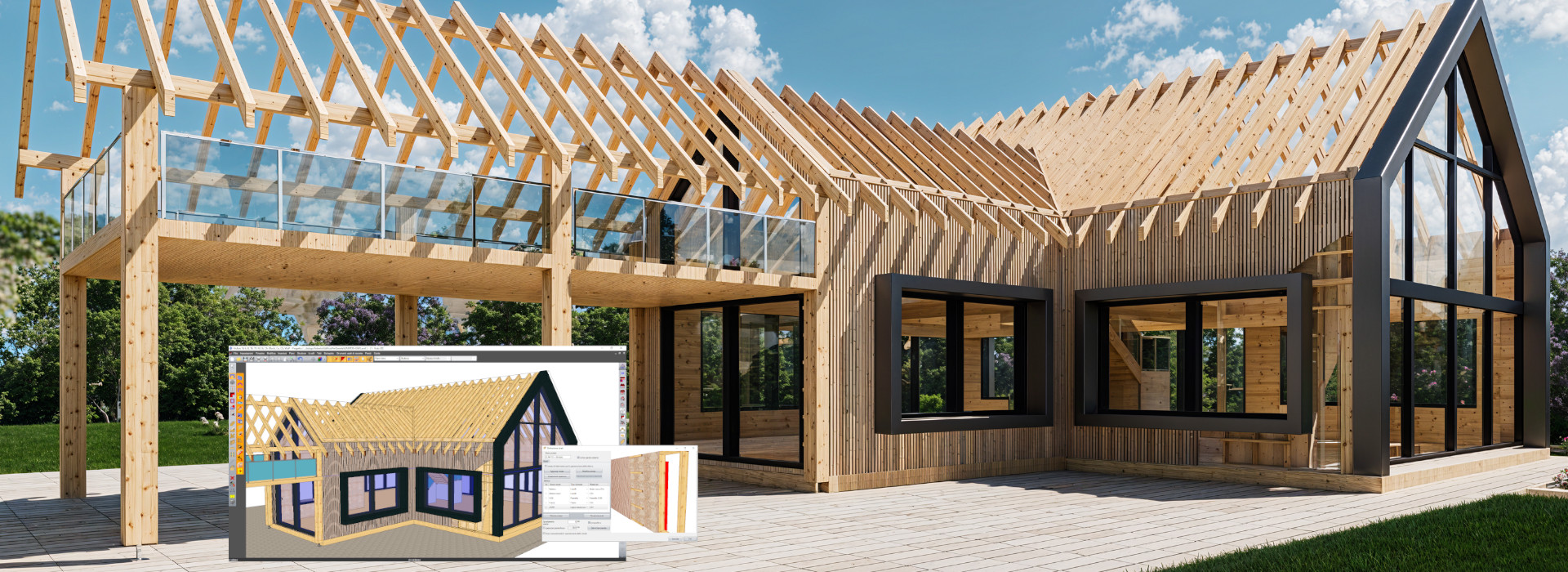

WoodCon the Timber Building Planner

The Timber Building Planner

Module A

ROOF

13,33 € per month

Modul A
Suitable for:

Designers, planners, architects, engineers, construction companies, etc., for the design and 3D visualisation of timber roof framework

Module B

WALL

13,33 € per month

Modul B
Suitable for:

Designers, planners, architects, engineers, construction companies, etc., for the design and 3D visualisation of timber roof framework

Additional modules

Module for Lists/Computation of wooden/steel components and roof tiles

6,66 € per month

Module for Layout/Printing of Plans

6,66 € per month

Zusatzmodule

Order WoodCon!

order

Call us, we will be happy to advise you!

Mr. Daniele di Pisa

+39 329 765 6153
+49 (0) 8504/9229-0
D.DiPisa@weto.de

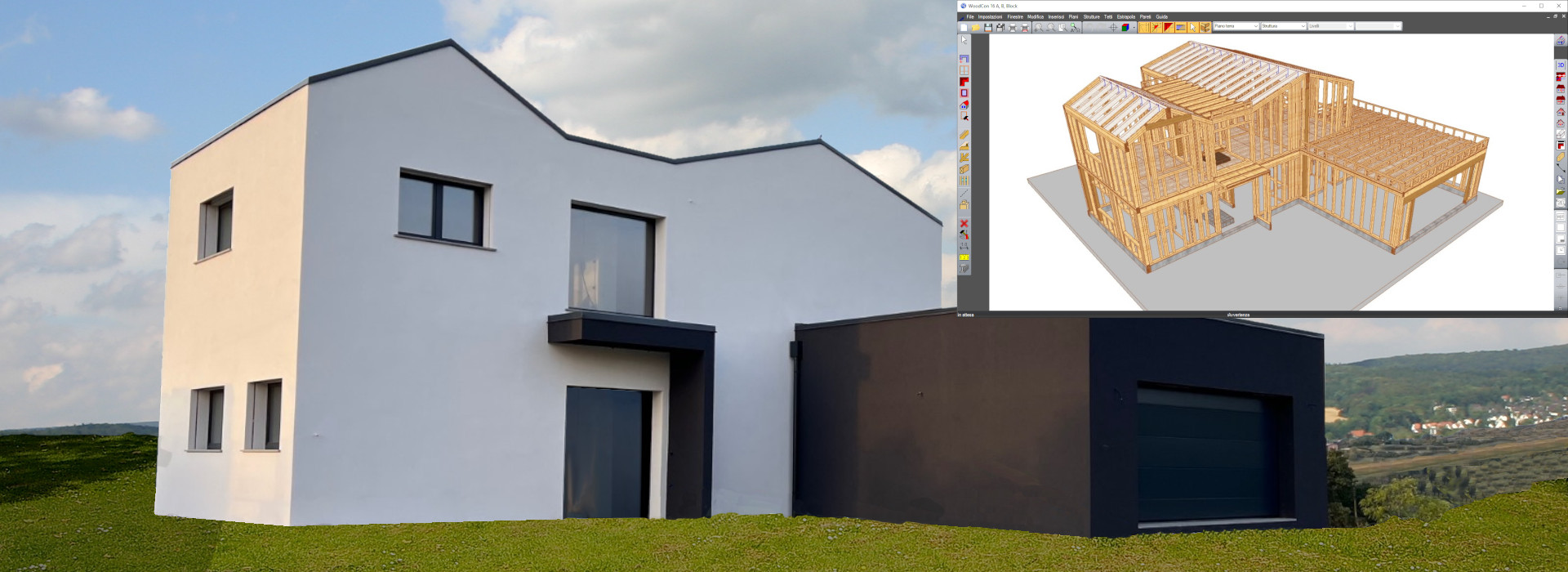

WOODCON A - ROOF MODULE

Complex roofs with exposed framework can be created in just a few steps using the attached roof tools. For the shape and the roof design, you can choose to use the Roof Wizard (Assistant) or to draw walls and roofs manually. In both cases, the result will be identical, although it should be emphasised that thanks to the freedom of design, it is possible to create unrestricted shapes and thus also floor plan that have not been included in the assistant. At any time, it is possible to change any roof parameter and get real time changes. The same happens with the assistants of Dormers, Roof Windows and Chimneys. The wooden framework that houses them is automatically recalculated and adapted.

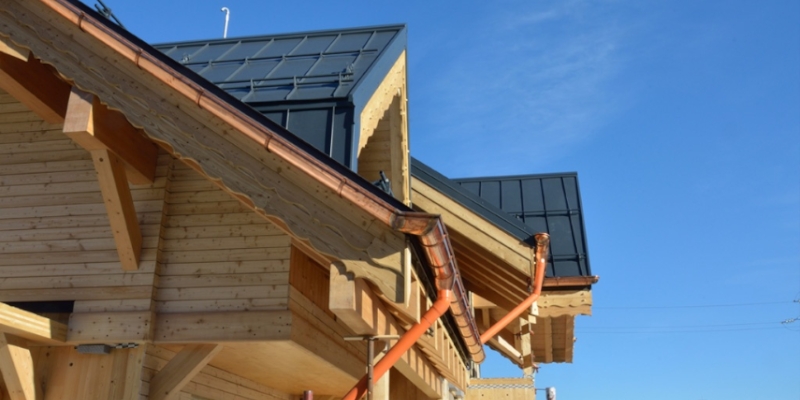

Roof

Roof

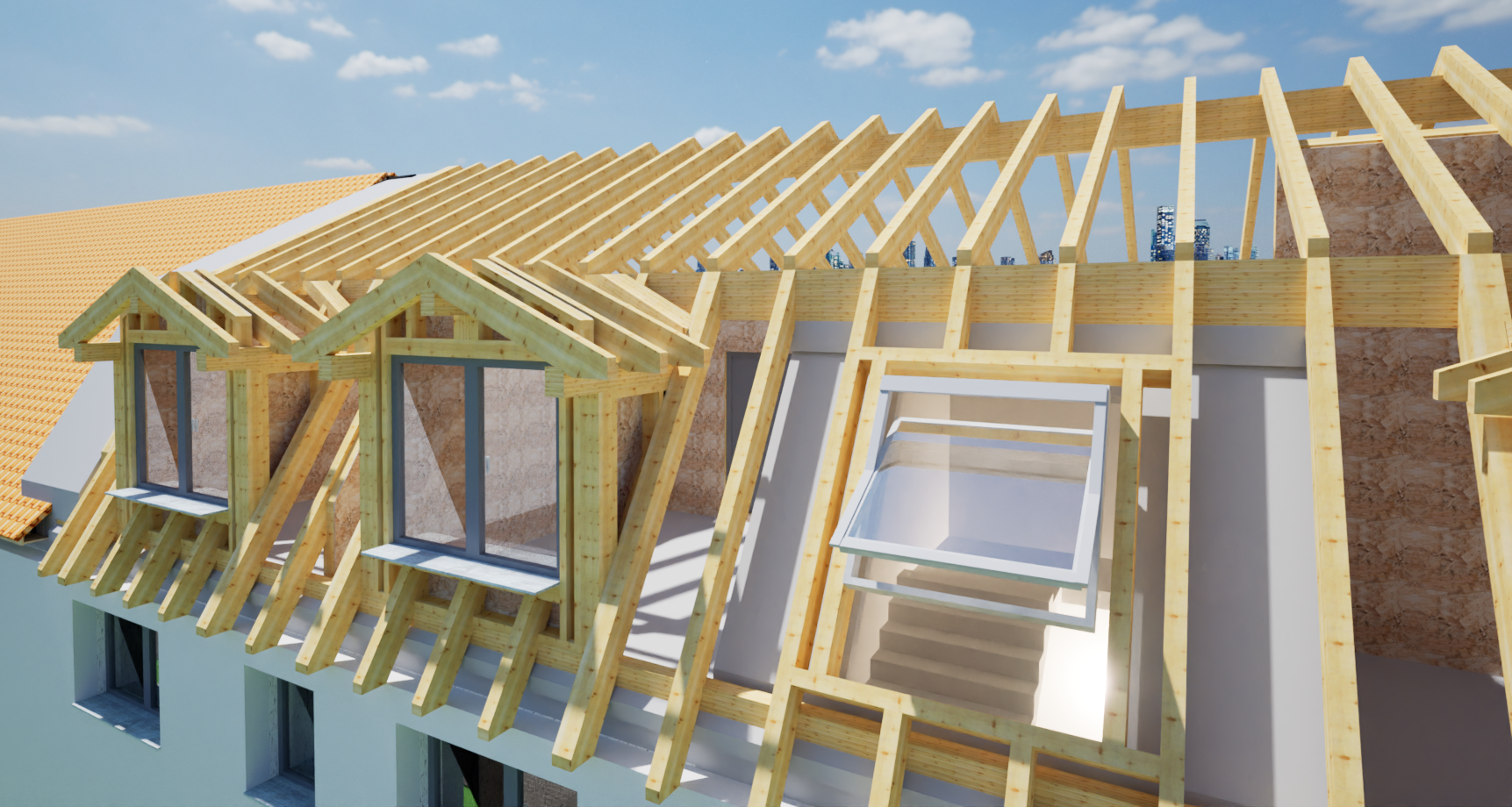

Dormer

Dormer

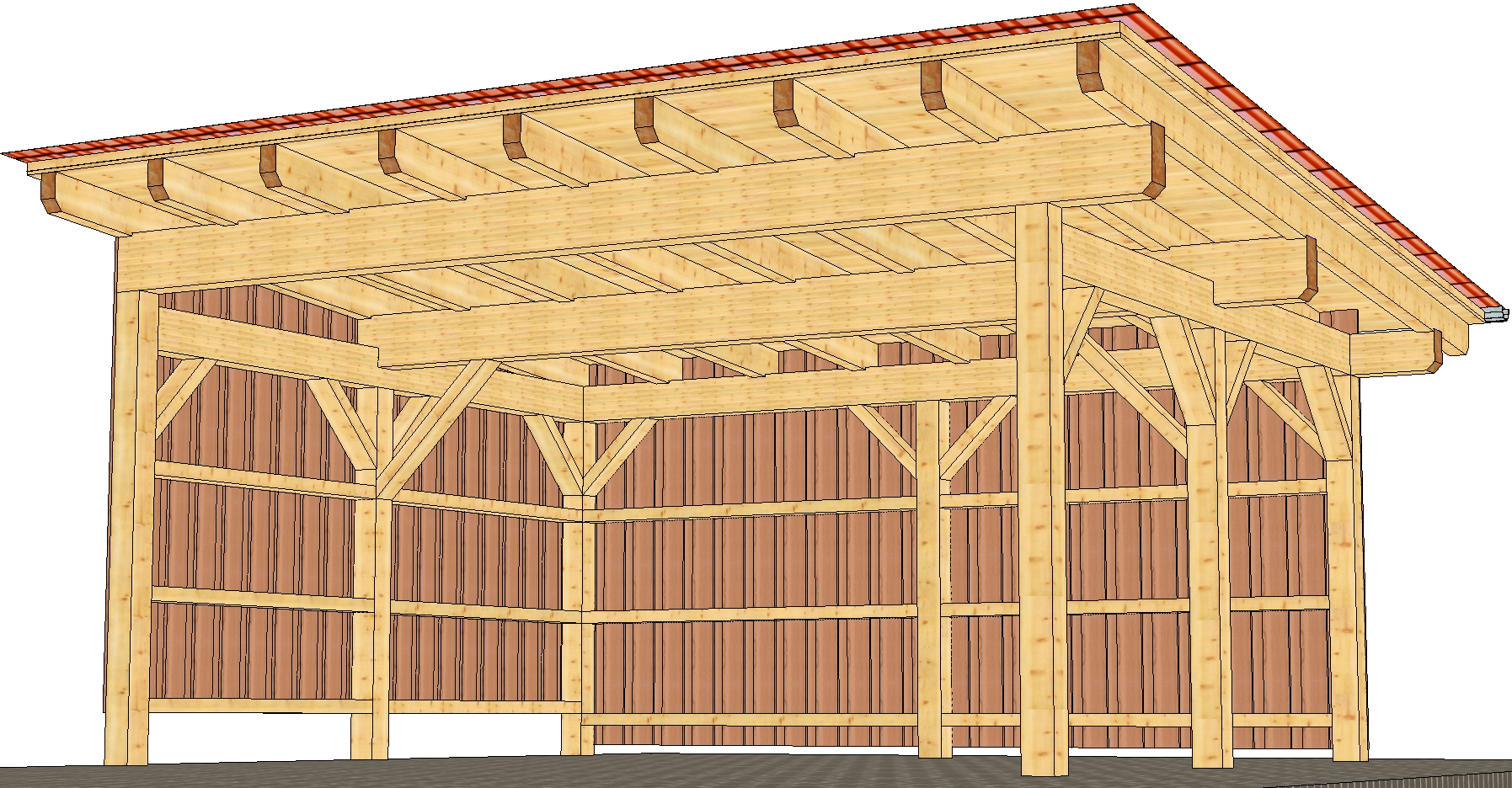

Carport

Carport

  • Advanced Wizard (Assistants) of Roofs and Dormers

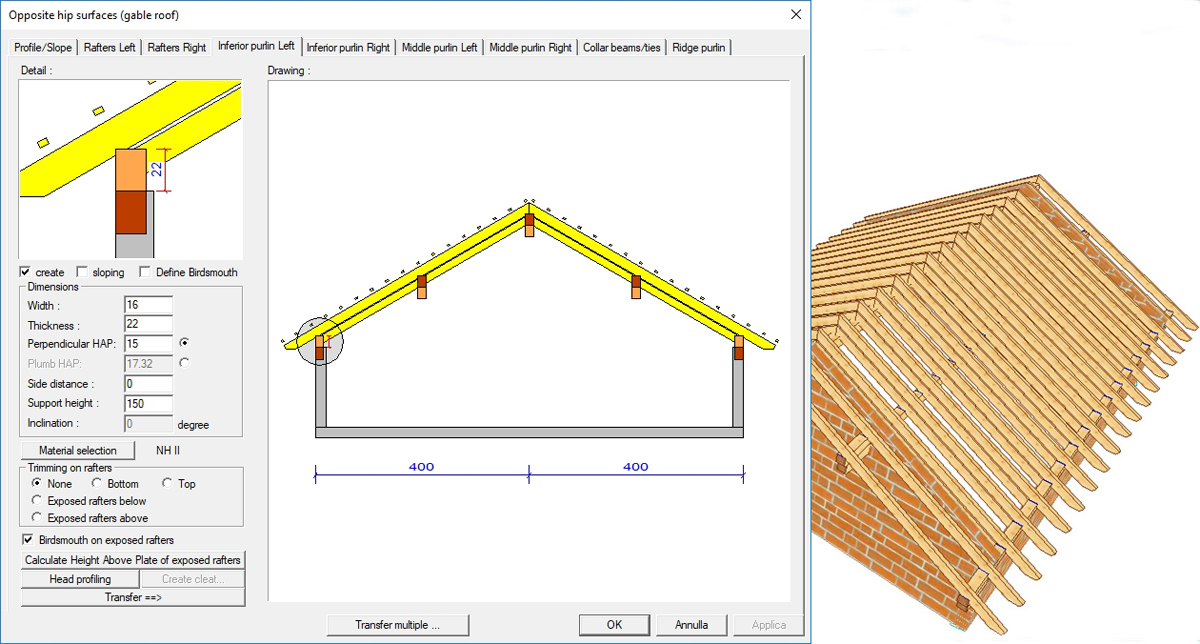

    to quickly and easily create single or double roof framework by setting pitches, sections and dimensions of the purlins, rafters and roof packages, and then the light framework, insulation and boarding

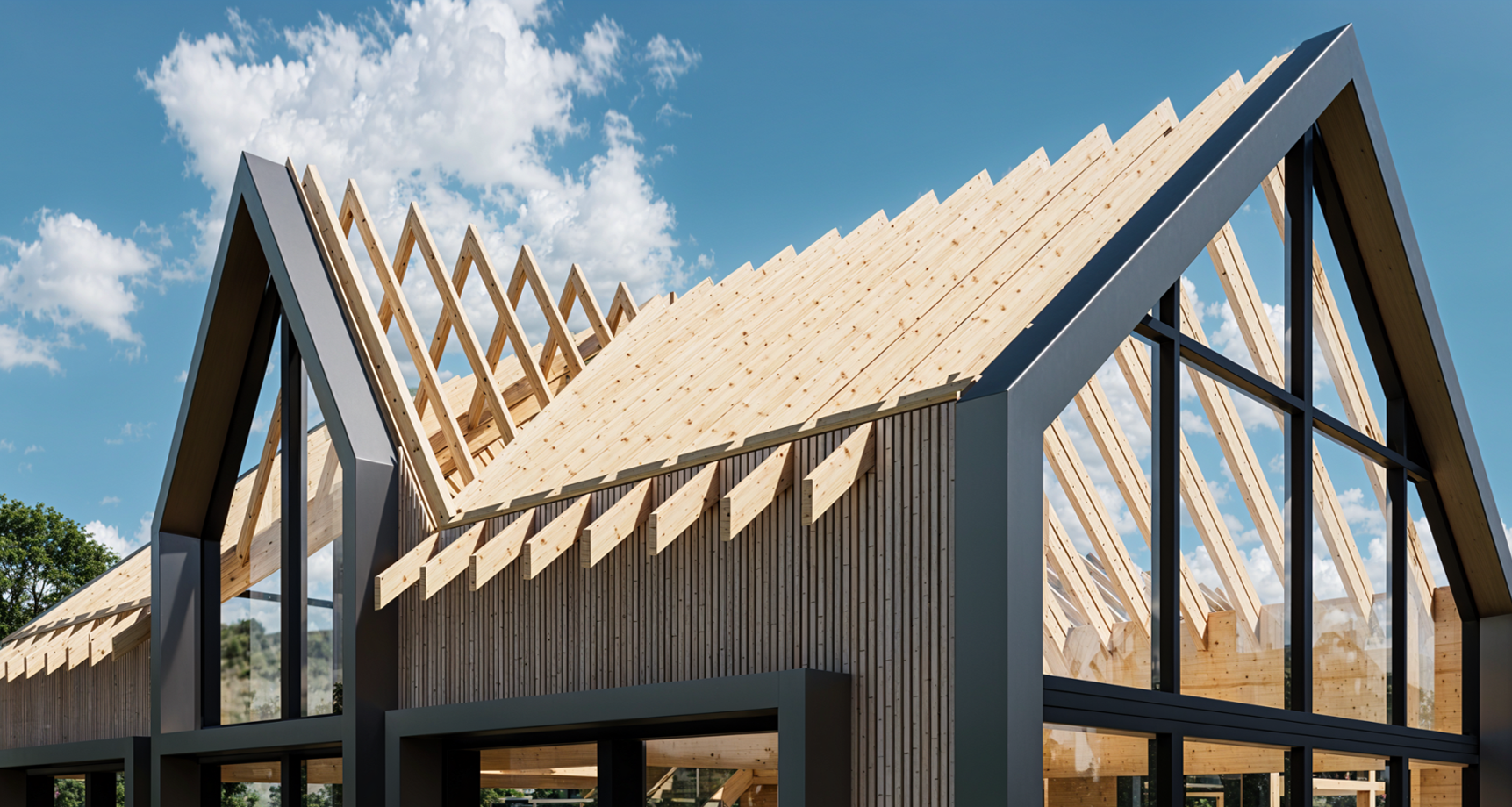

  • Timber roofs with double framework
    to design ventilated roofs, for example, by setting the double framework composed by double rafters and purlins directly in the roof assistant.

  • Careful placement of rafters and collar beams by setting self-adaptive (dynamic) or fixed (forced) interaxis

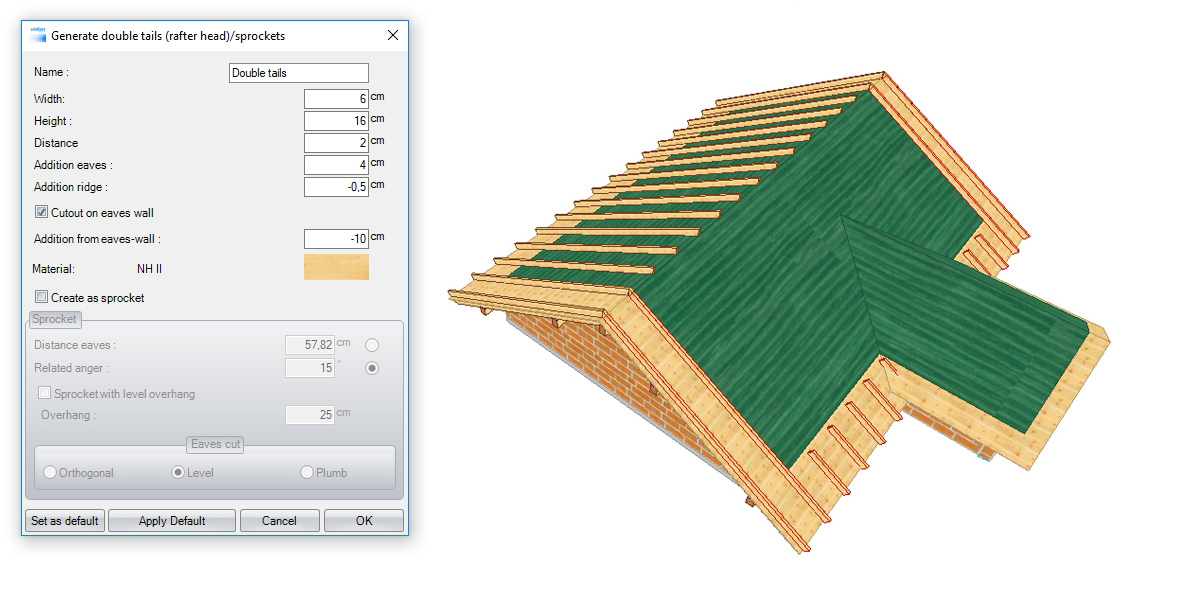

  • Automatic rafter tails/sprockets by one-click

  • Recessed/Projecting Eaves with a couple of clicks

  • Customisable catalogue of roof tiles and roof packages

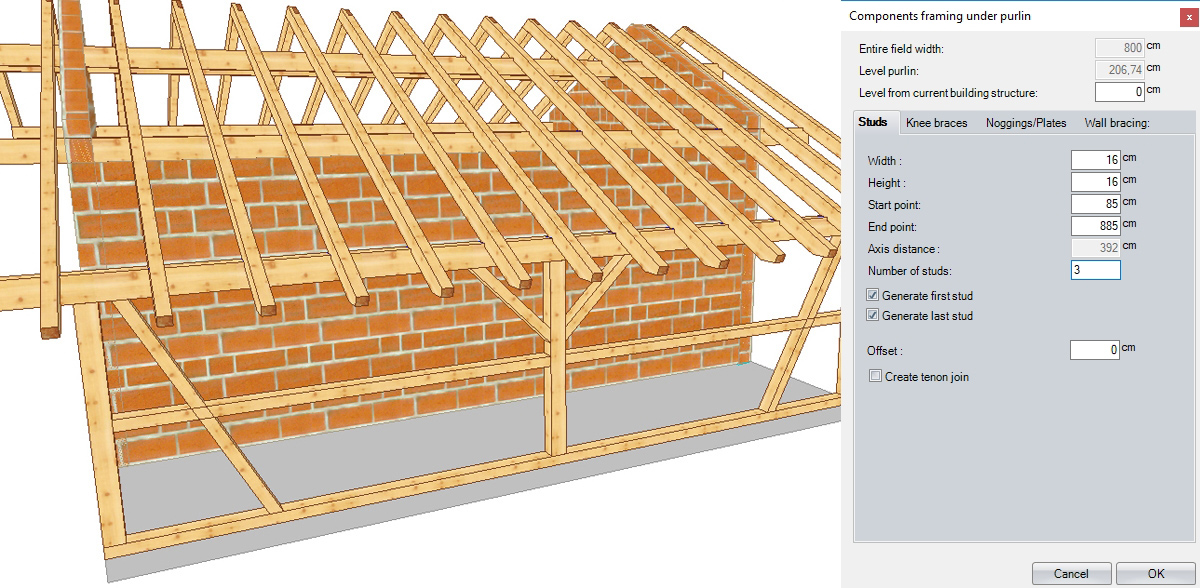

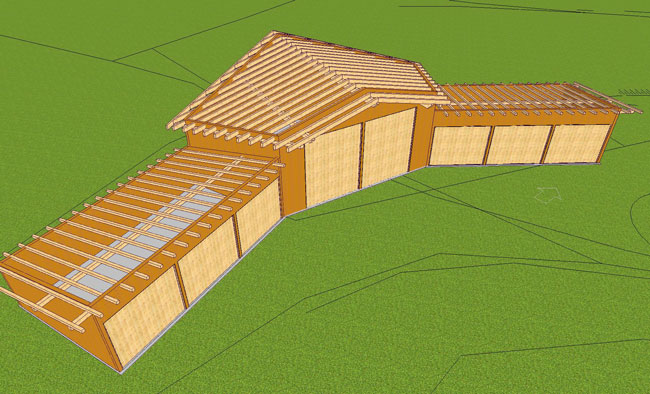

  • With the ‘Framework under top plate level’ tool, it is very easy and quick to create pergolas or special wind braced timber framework. Only three clicks are needed!
    Automatically generates studs/posts, noggings, knee braces and automatic wall bracing (wind braces)!

  • Multiple placement of Beams, Posts, Rafters and Collar Beams along any clicked plane e by setting auto-adaptive (dynamic) or fixed (forced) interaxis

  • 3D measurements of lengths and surfaces

  • ...and much more!

WOODCON B - WALL MODULE

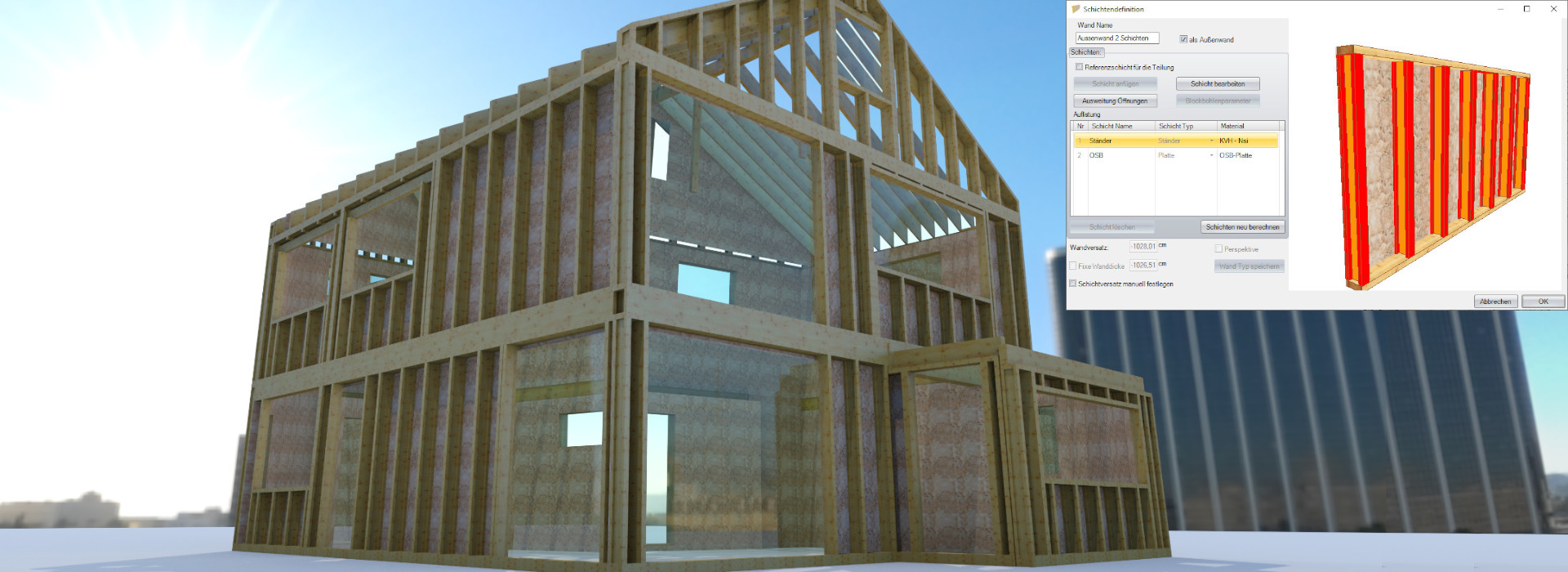

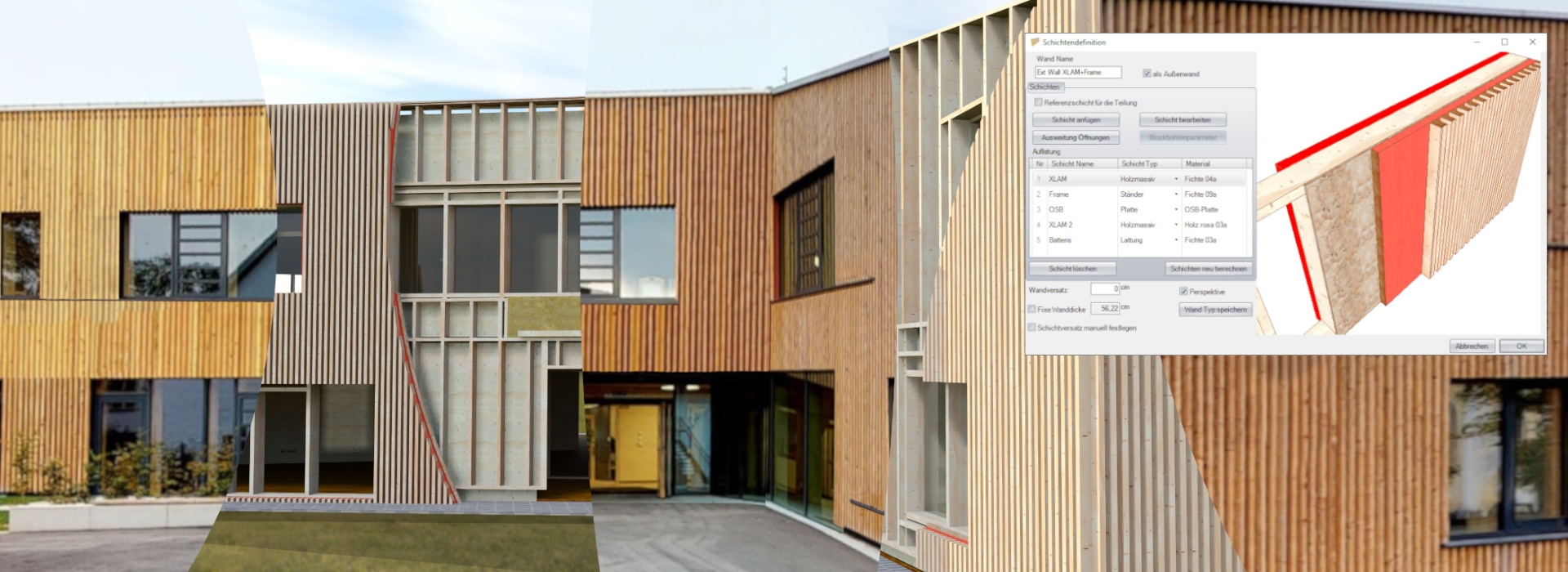

The wall tool allows the detailed configuration of wooden and non-wooden layers. In fact, are managed frame layers (composed by studs and plates), panels (OSB, plasterboard, etc.), solid wooden layers (CLT/XLAM), Block House beams, battens, boardings, as well as general uniform layers for insulating or masonry. For example, a building with brick walls could be renovated and fitted with new internal layers of wooden frames. For corner wall joints, a special tool is available that allows you to configure your own system of joining rules for the two corner walls to be permanently connected. Specifically, the software is instructed, by means of a selection and a check mark, that one layer of one of the two walls must be lengthened or shortened to reach a specific layer of the other wall. Once you have chosen how each layer is to behave, you save the rule you have just created forever and use it on command (with a click) by selecting the two walls to be joined. The software will then generate the expected corner joints. Among other things, the same tool optionally allows the automatic generation of extra corner support studs.

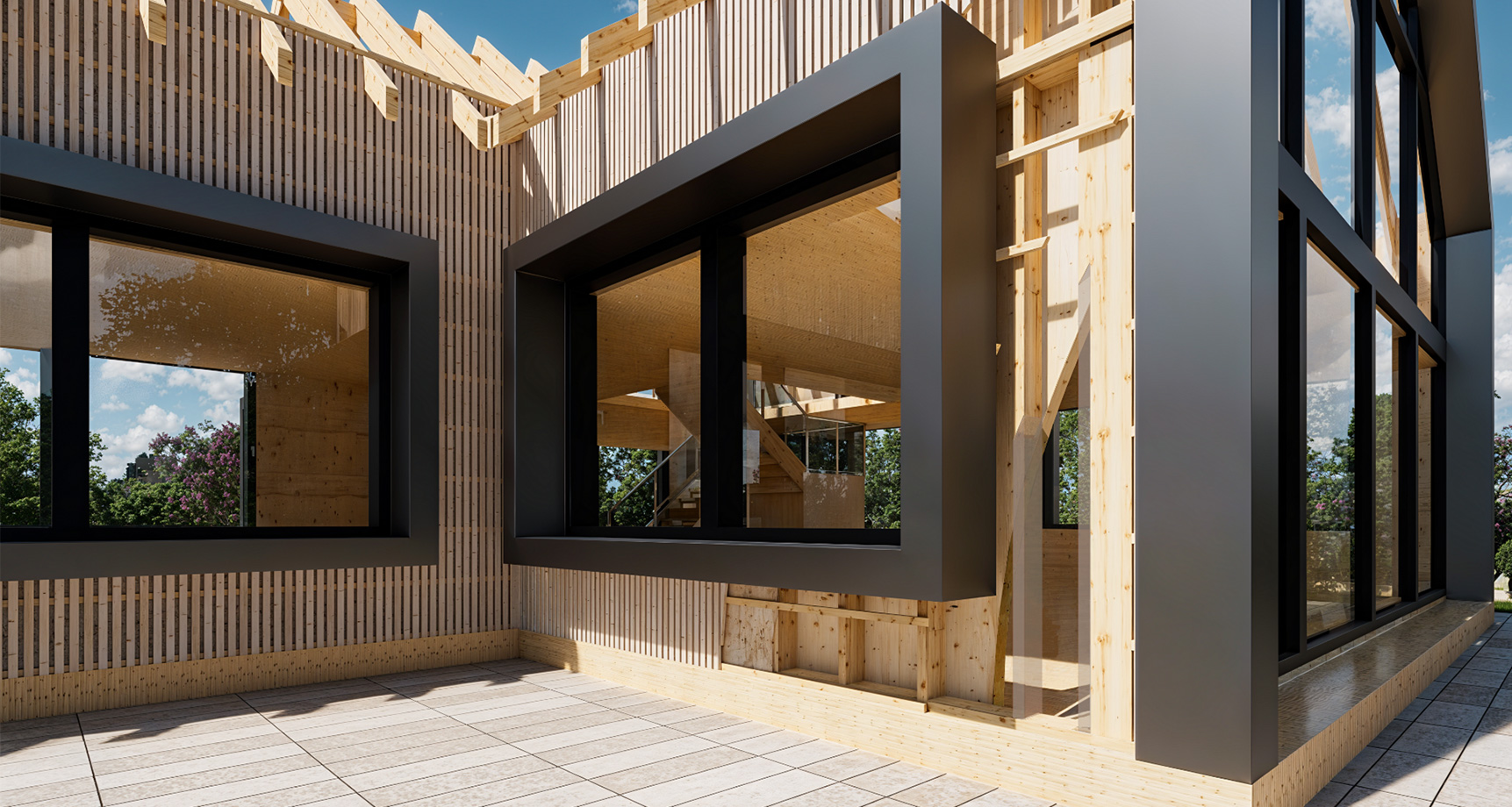

Frame + Panels + Battens + XLAM

Frame + Panels + Battens + XLAM

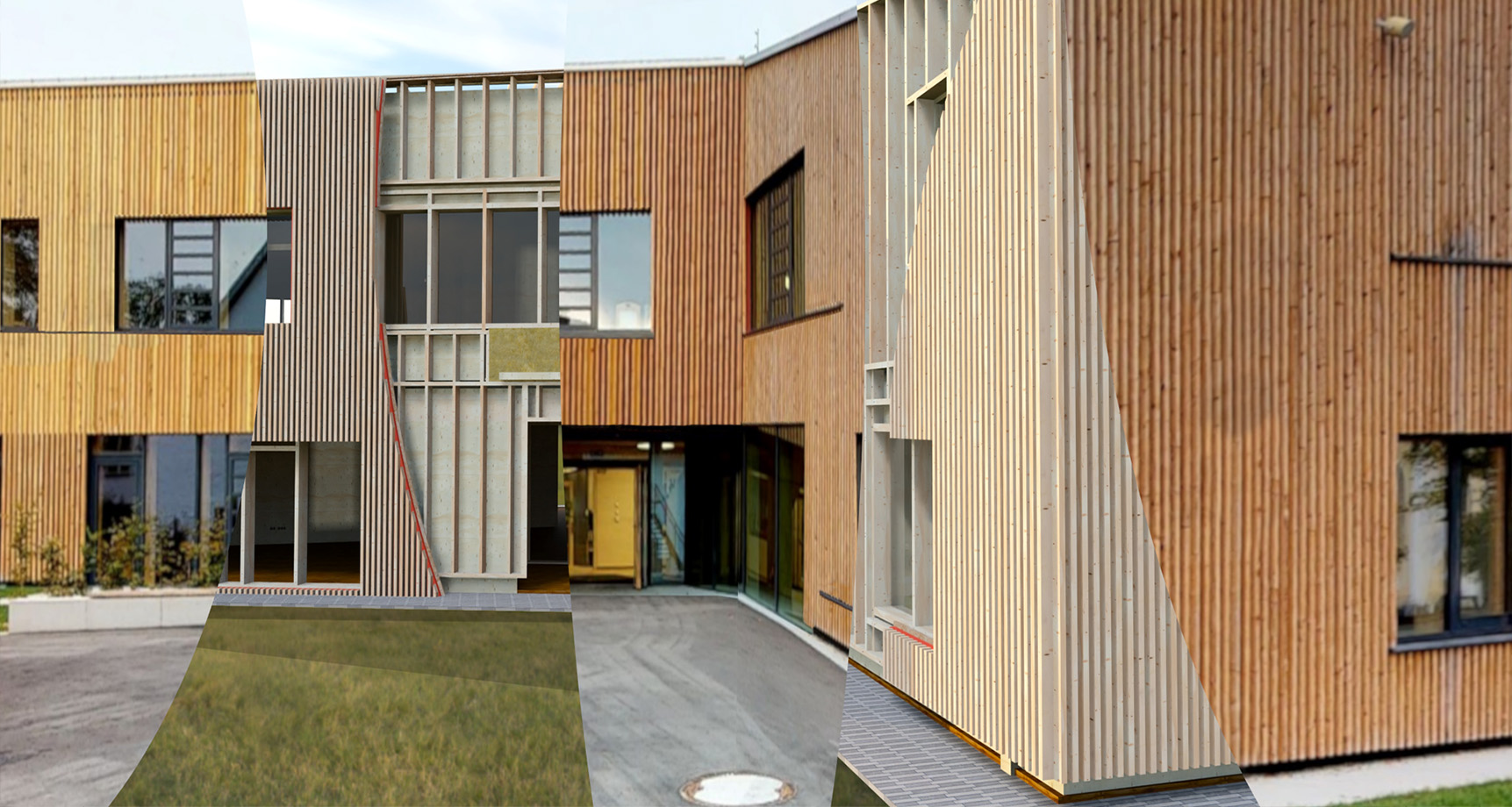

Frame + Panels + Boardings + Battens + XLAM

Frame + Panels + Boardings + Battens + XLAM

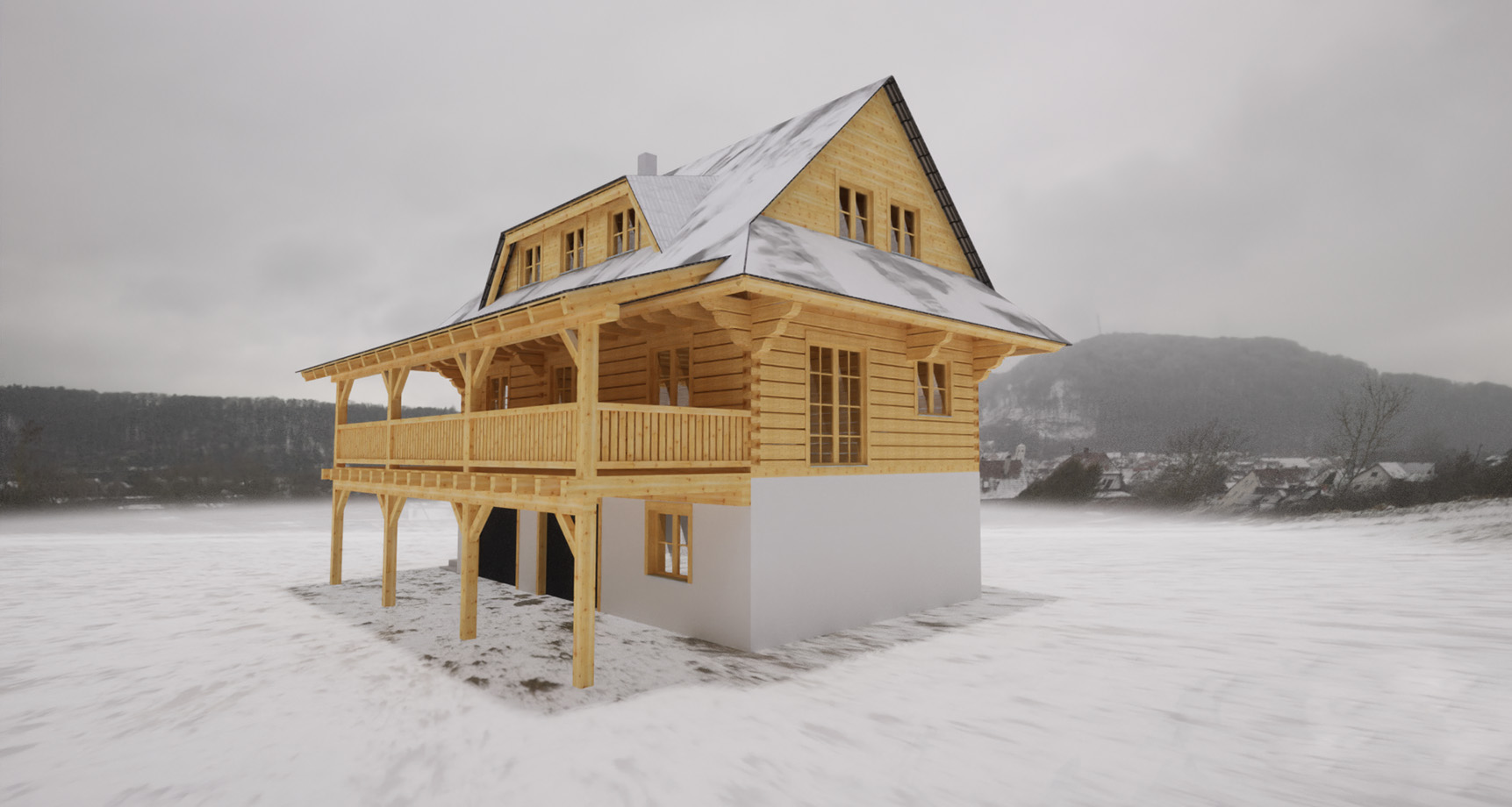

Block House

Block House

  • Parametric management of walls and layers
    composed by frames, panels, CLT/X-LAM, boardings, battens, block house beams and uniform layer (e.g.: insulation, brick, etc.)

  • Block/Logs House beams (squared, round, or with other profiles) and special automatic joints
    dovetails, Tyrolean Dovetails and various types of overhanging corner joints

  • Windows/Doors Editor with management of various geometries and related options
    with creation of King/Jack/Cripple Studs, Lintel, Sill, full control of panel overhang, etc.

  • Definition of one's own joints rules between walls and relative adjustment of layers

  • Walls with massive layers
    (CLT/X-LAM or with Block/Log houses beams)

  • ...and much more!

ADDITIONAL MODULES

(requires WoodCon module A and/or B)
Lists/Computation of wooden/steel components and roof tiles

Lists/Computation of wooden/steel components and roof tiles

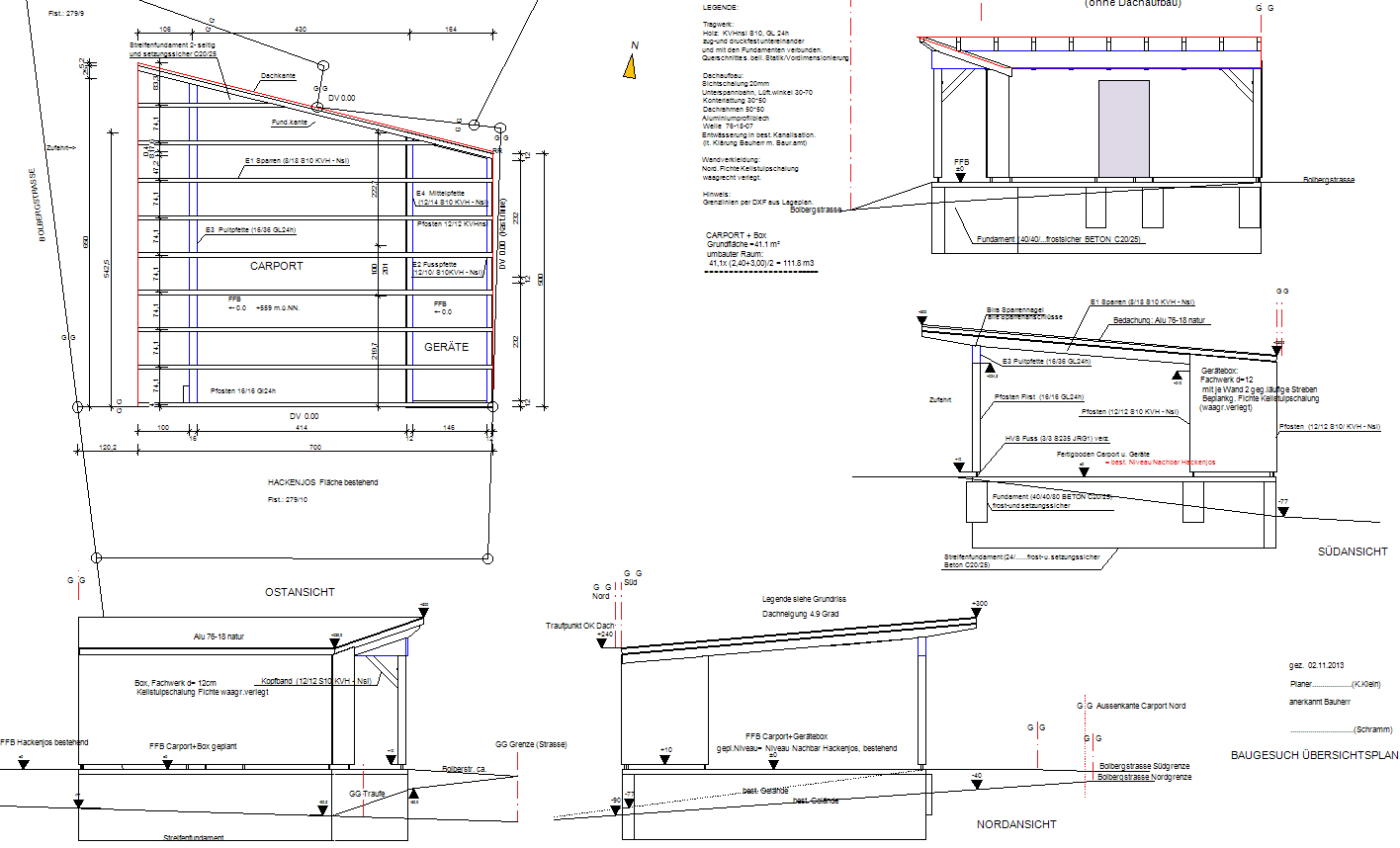

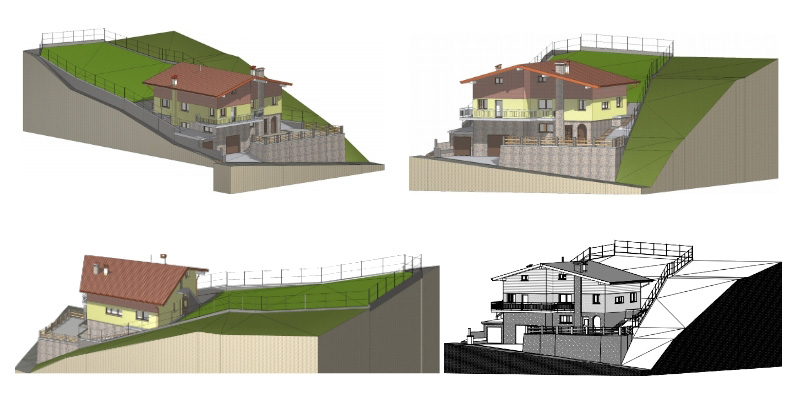

Floor Plans, Sections, Elevations and Perspectives Views

Floor Plans, Sections, Elevations and Perspectives Views

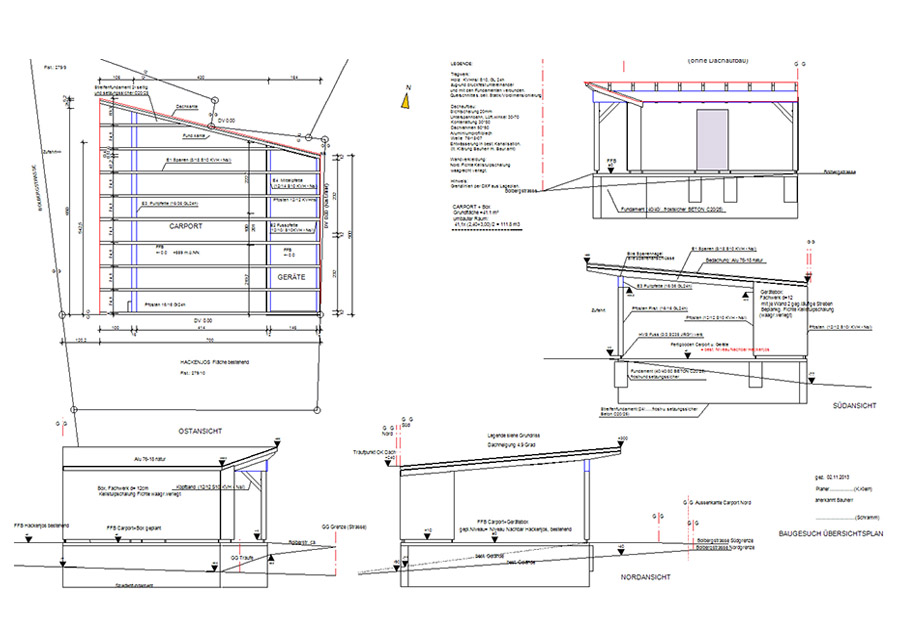

Layout/Printing of Plans

Layout/Printing of Plans

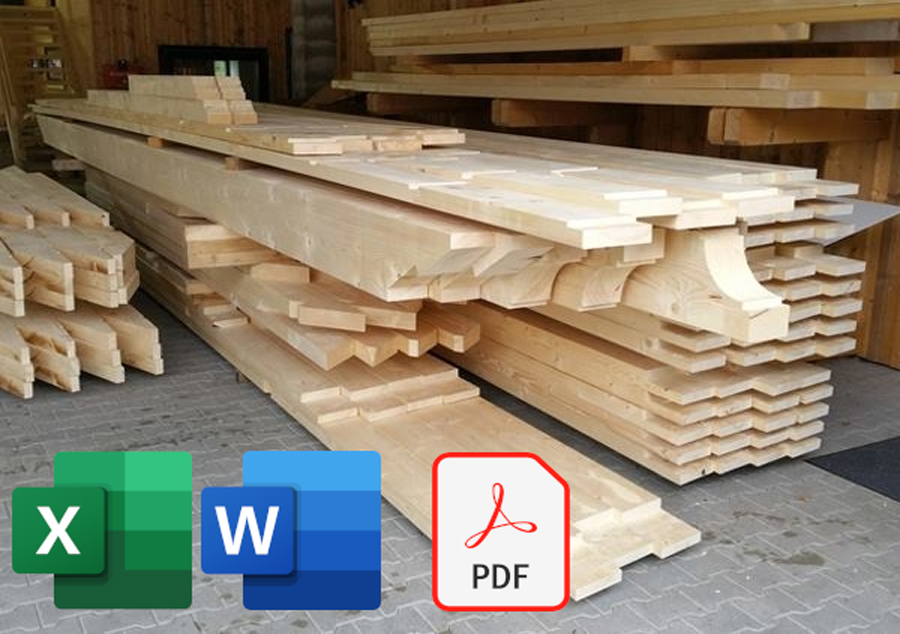

  • Module for Lists/Computation of wooden/steel components and roof tiles
    with quantities, beams sections, lengths, surfaces, volumes for preparing specifications, quotations and other summaries. Any list can be exported directly into Microsoft Excel

  • Module for Layout/Printing of Plans
    floor plans, sections, elevations, perspectives and 3D views
