VisKon Treppe

VisKon Treppe – The EASIEST and FASTEST 3D Parametric CAD for producing Wooden Staircases!

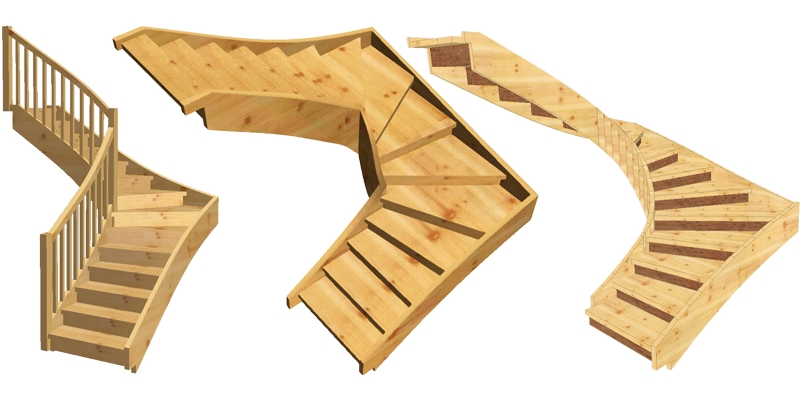

Architektur Treppe (Architectural Version)

for Planners

490,00 € 980,00 €until June 30!

Includes the WETO Material Pack!

Architektur Treppe
Suitable for:

Architectural design of wooden staircases, ensuring accurate models for joiners and carpenters

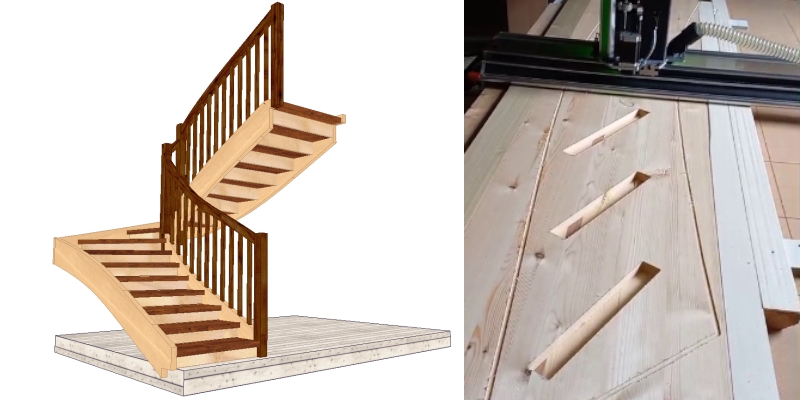

Treppe Fertigung (Version for Carpentry/Joinery)

for Carpenters, Joiners and Staircase Builders

990,00 € 1980,00 €until June 30!

Includes the WETO Material Pack!

VisKon Treppe Fertigung
Suitable for:

Design and production of wooden staircases, obtaining technical drawings/production files.

VisKon Treppe is a complete tool that is so quick and easy to use that it becomes indispensable. That's how we designed it. Select the type of staircase you want to create and in just a few minutes you will have everything you need for cutting.

Produktflyer

Order VisKon Treppe here!

order

Call us, we will be happy to advise you!

Mr. Daniele di Pisa

+49 (0) 8504/9229-0
D.DiPisa@weto.de

Architektur Treppe (Architectural Version)

VisKon Treppe contains all the features already described in detail on the free version page Scalinata
(and not repeated here). We recommend that you also take a look at this page.

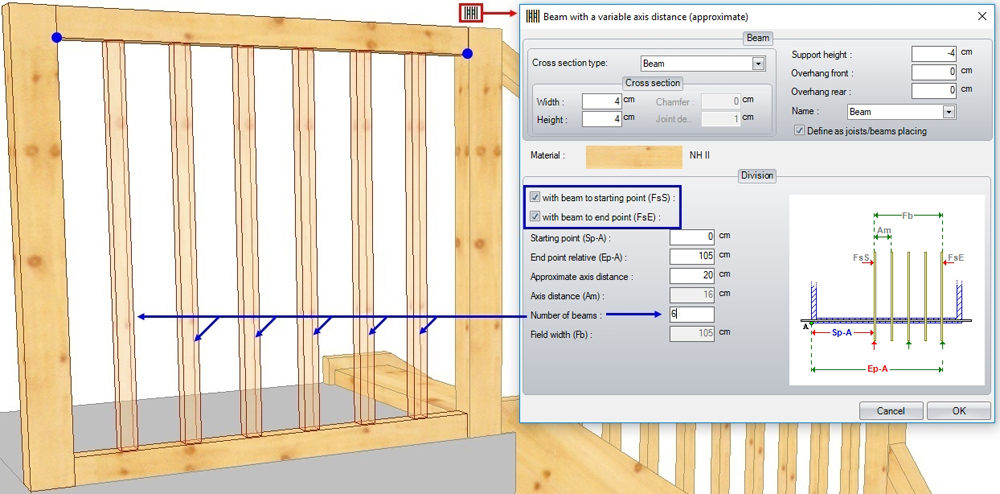

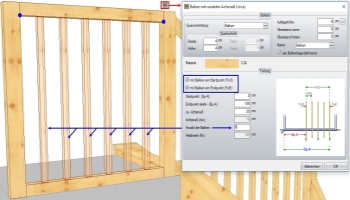

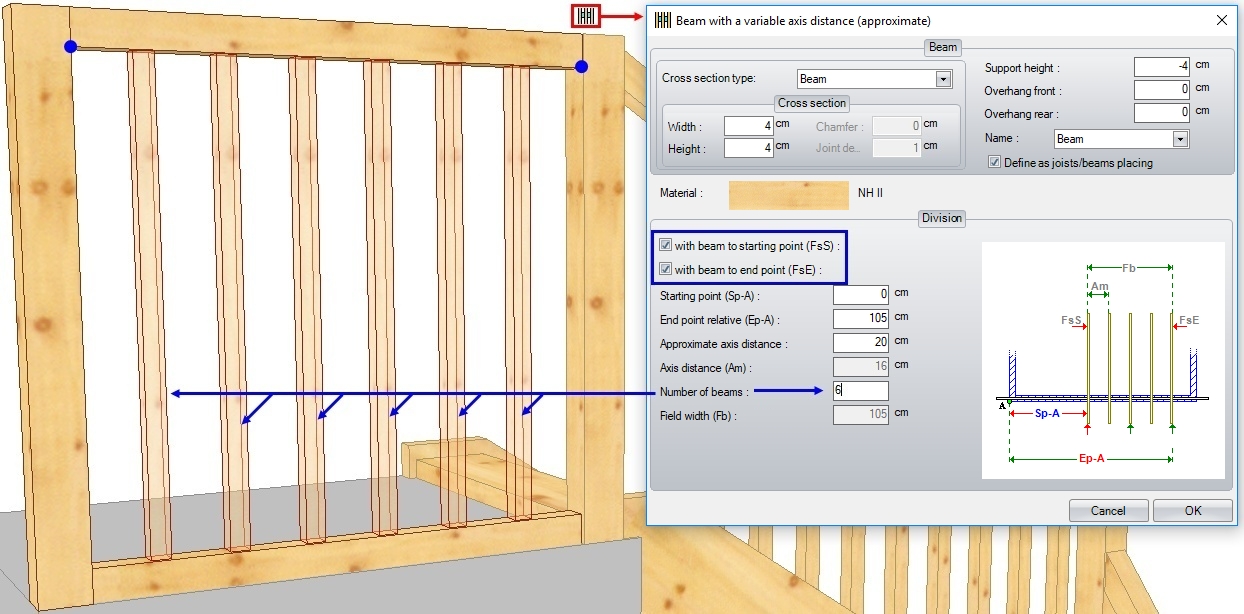

Free drawing and Multiple beams tools (e.g. Newel Posts and Balusters creation)

Free drawing and Multiple beams tools (e.g. Newel Posts and Balusters creation)

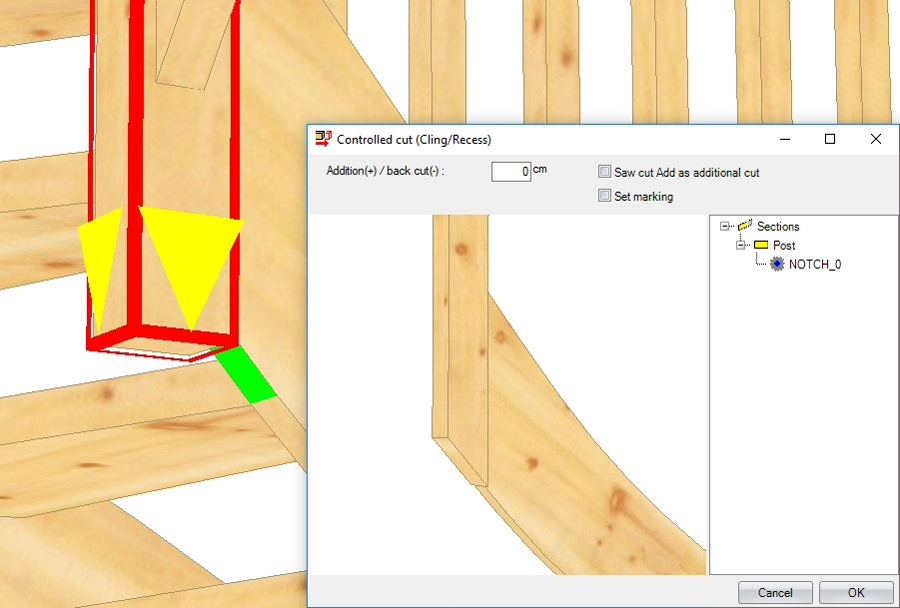

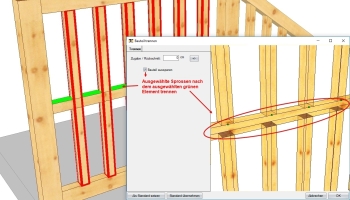

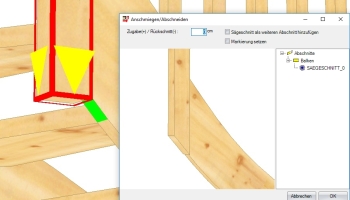

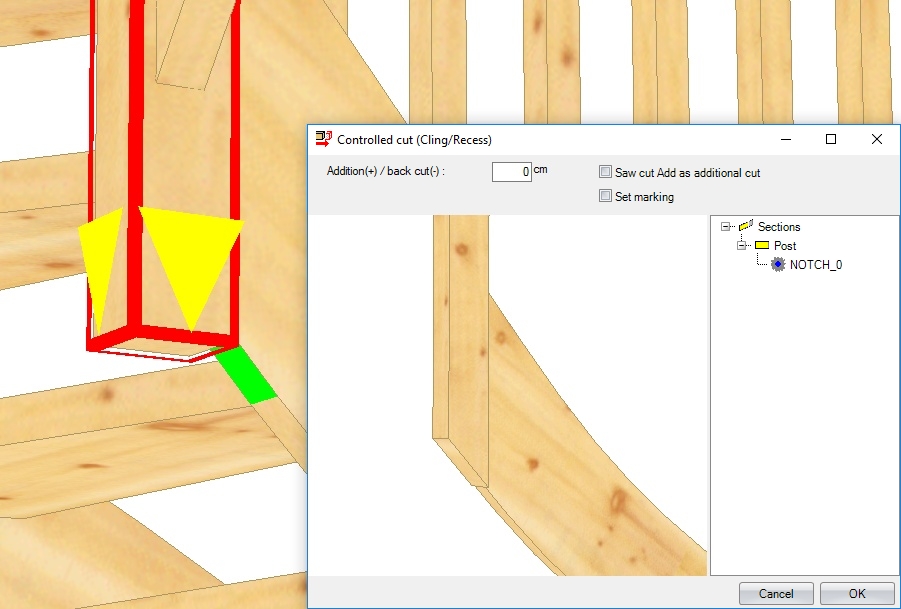

Controlled cut: With one click, the Newel Post is cut according to the green area clicked on.

Controlled cut: With one click, the Newel Post is cut according to the green area clicked on.

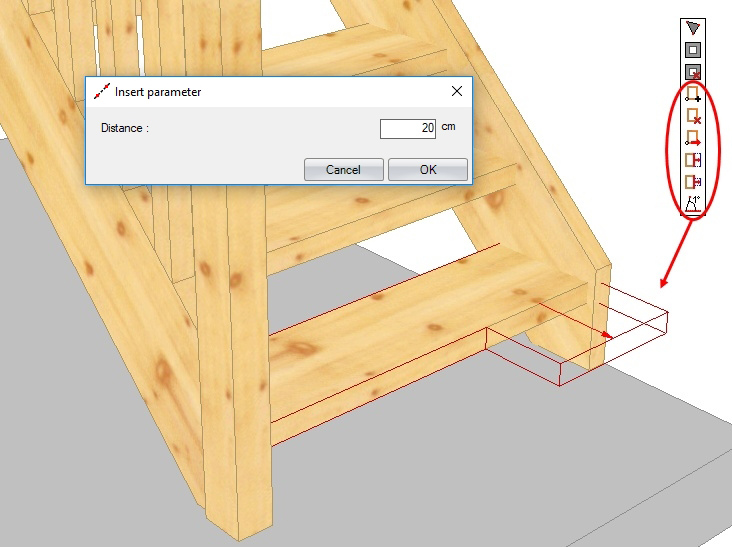

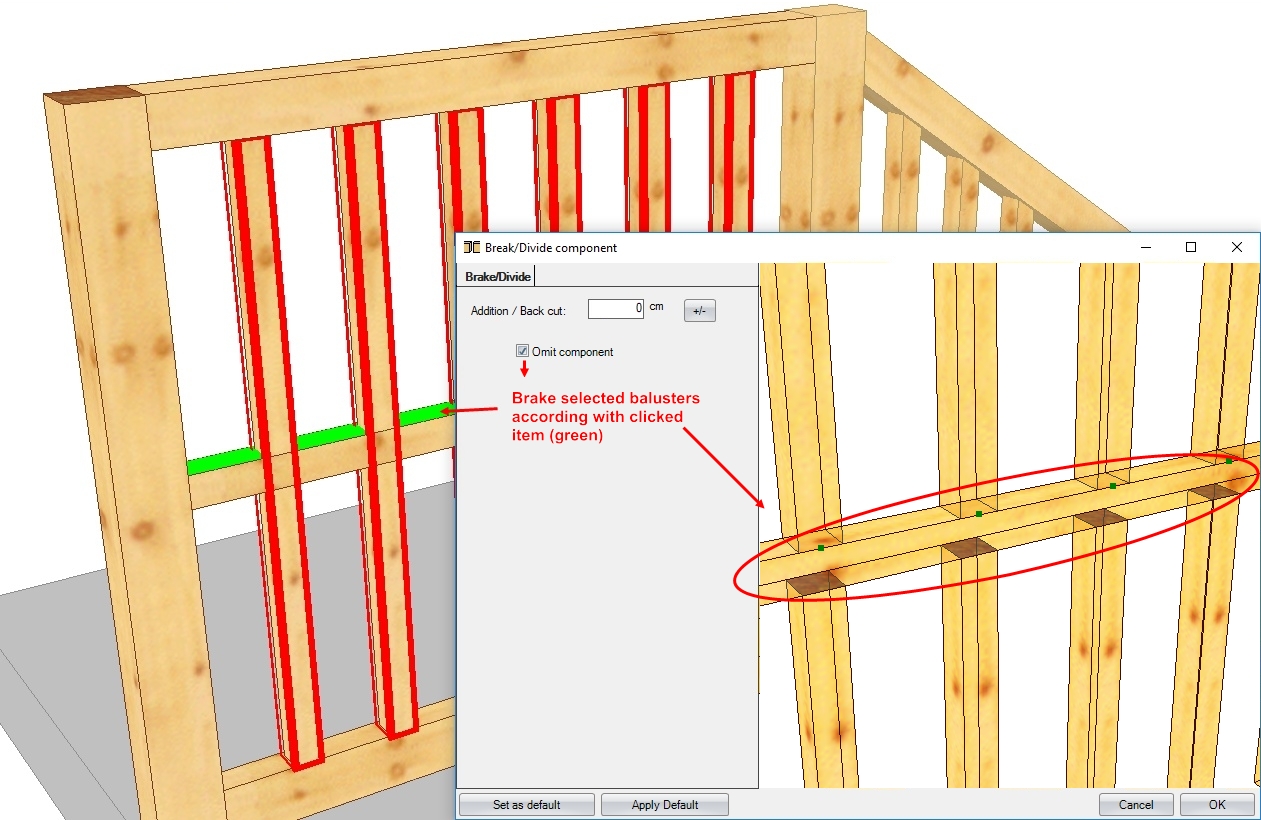

Brake tool, to split Balusters in two pieces

Brake tool, to split Balusters in two pieces

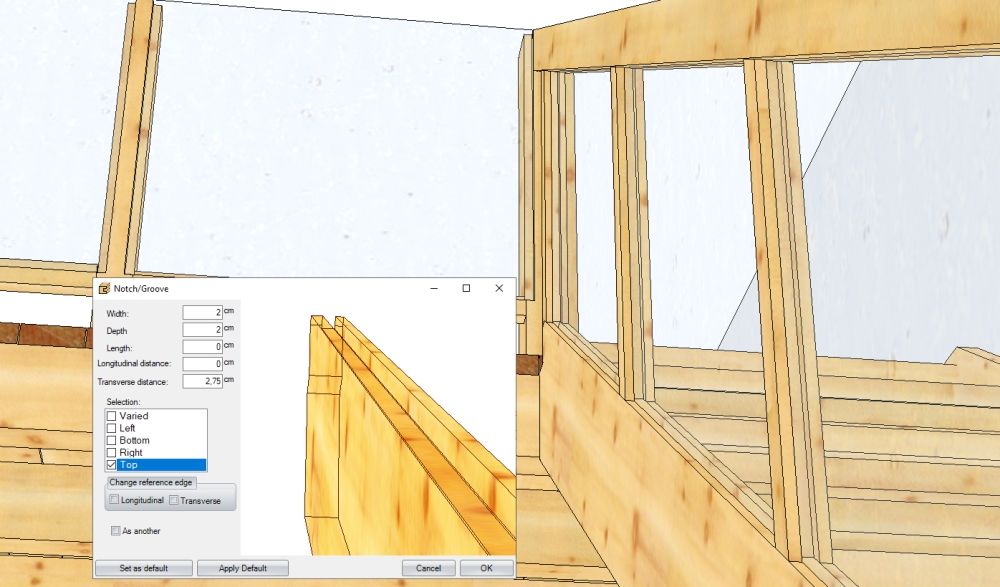

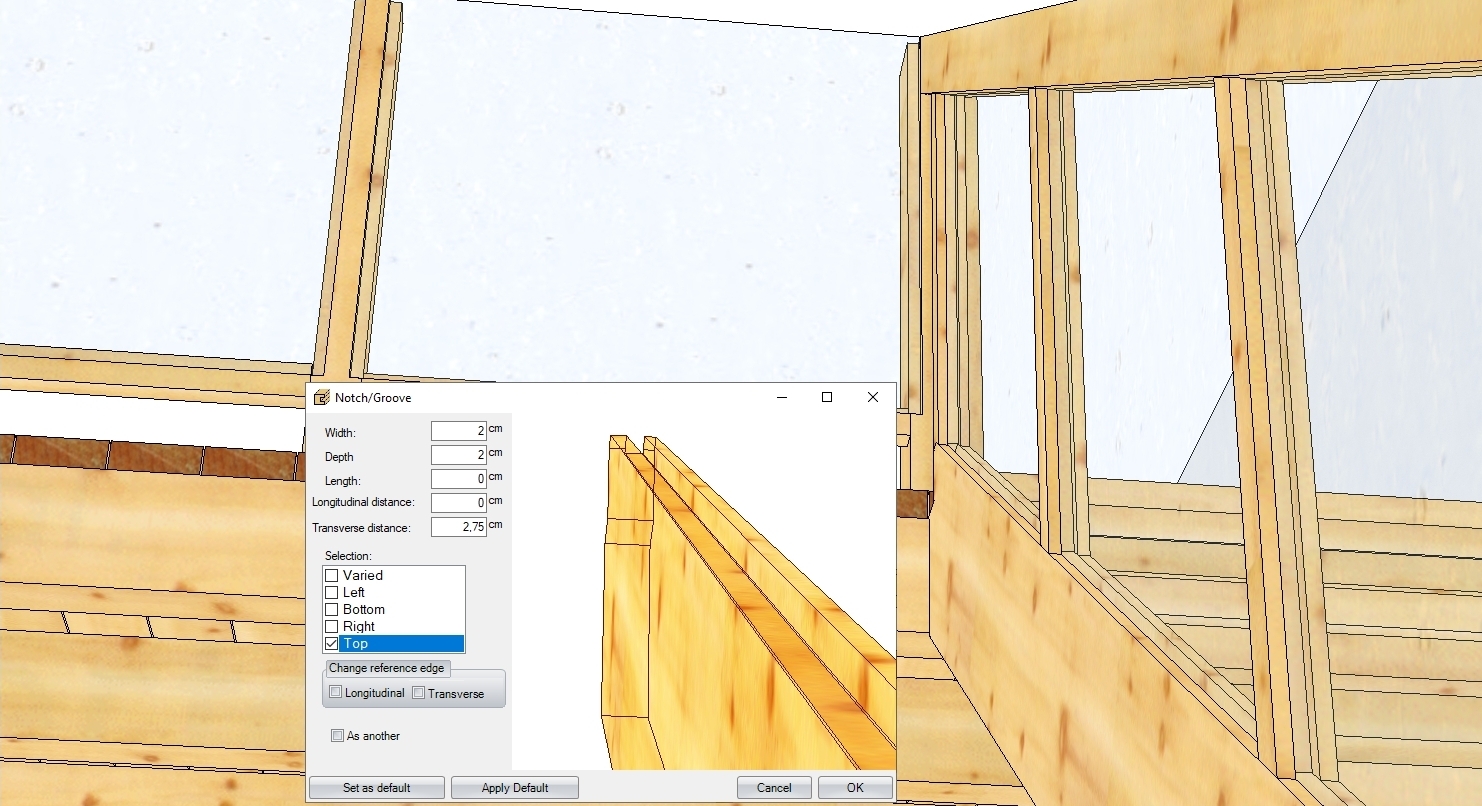

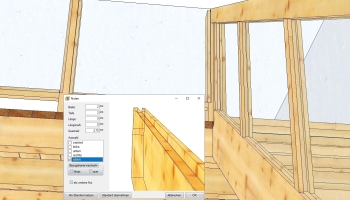

Free notches/groove tool (e.g. for glazing)

Free notches/groove tool (e.g. for glazing)

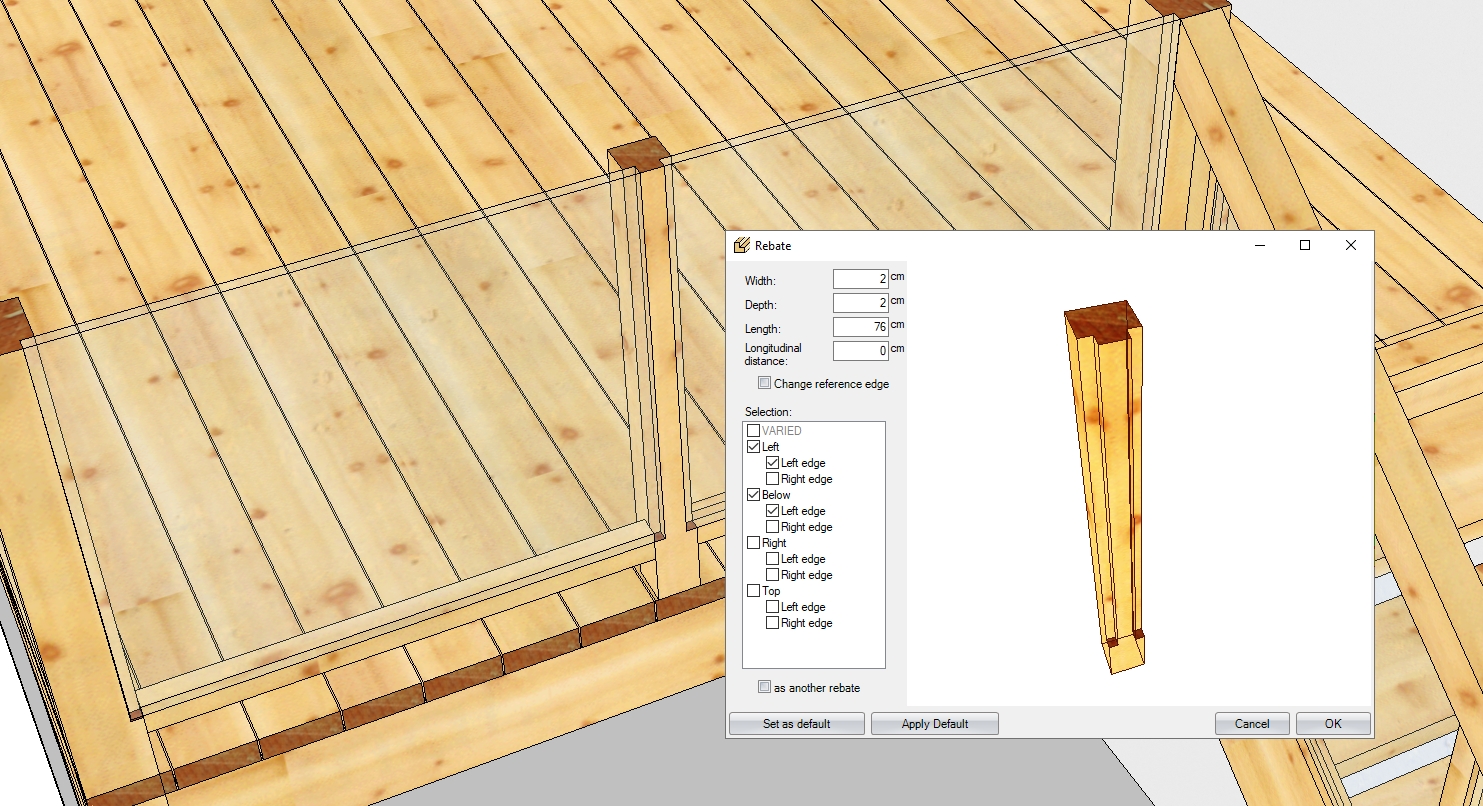

Rabet tool (e.g. for glazing recesses)

Rabet tool (e.g. for glazing recesses)

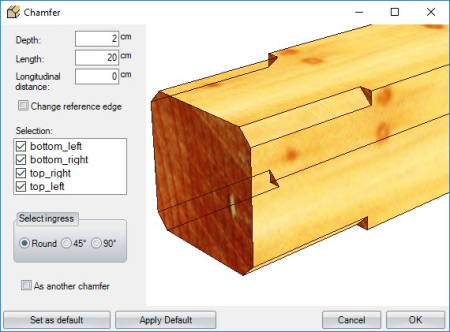

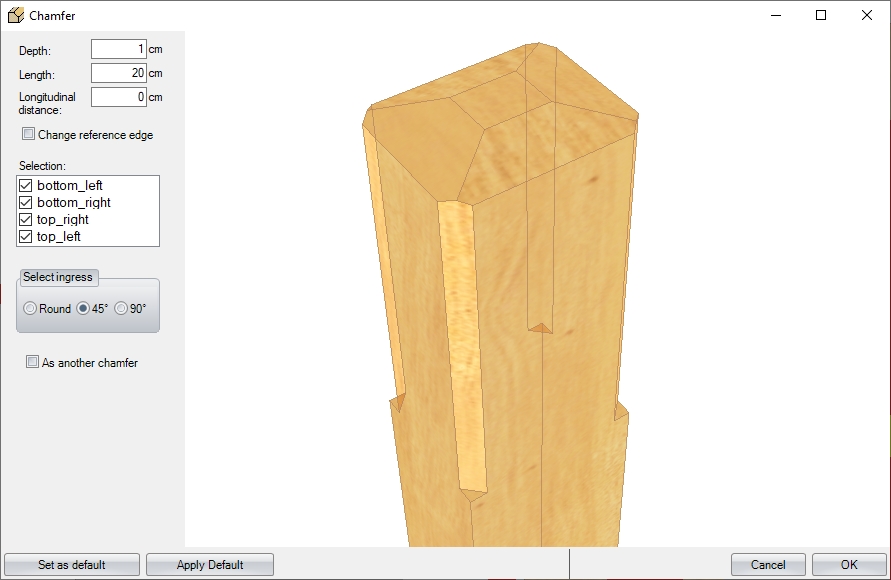

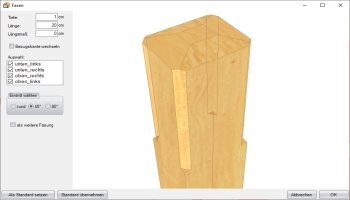

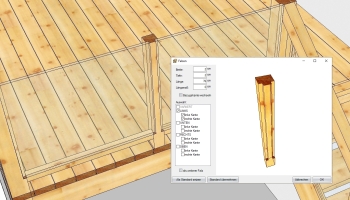

Chamfer/Smooth tool

Chamfer/Smooth tool

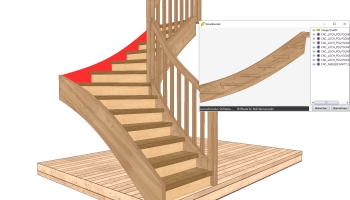

Polygonal adjustment tools

Polygonal adjustment tools

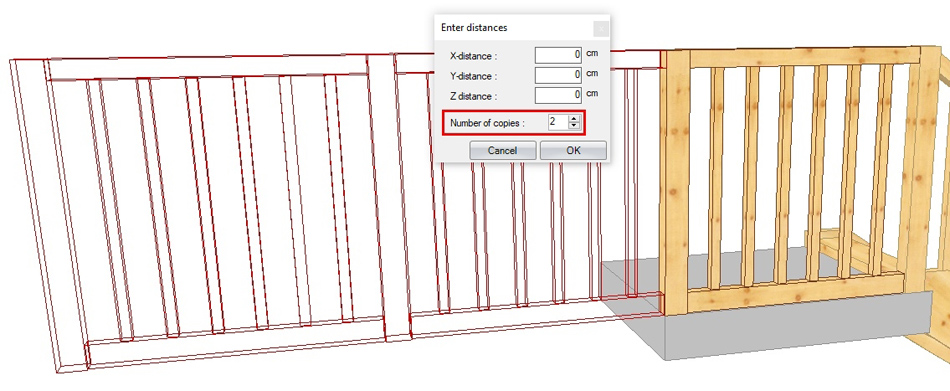

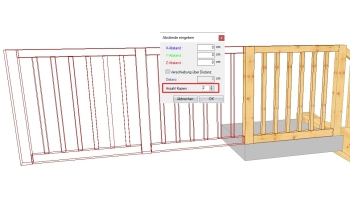

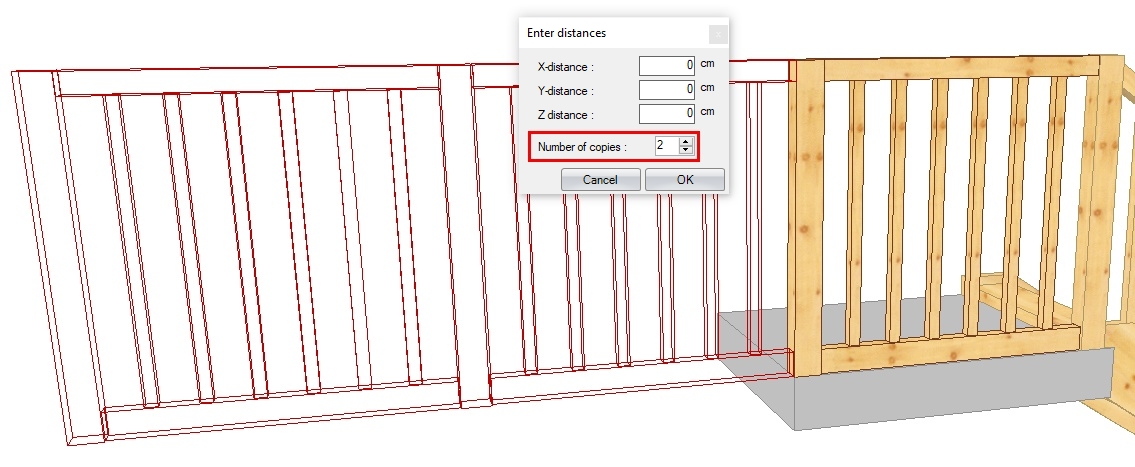

Multi copy tool

Multi copy tool

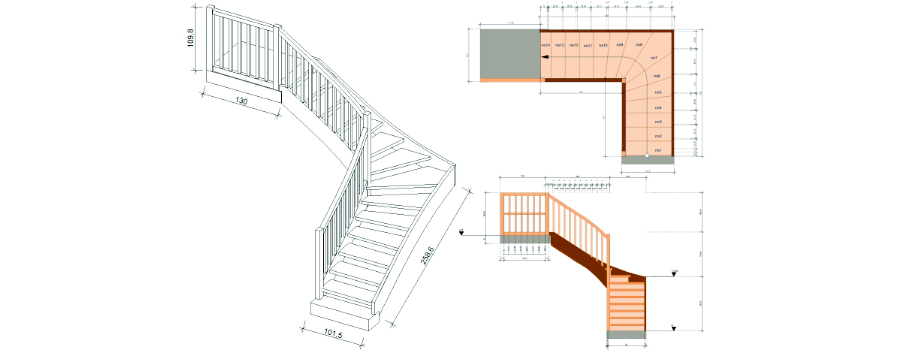

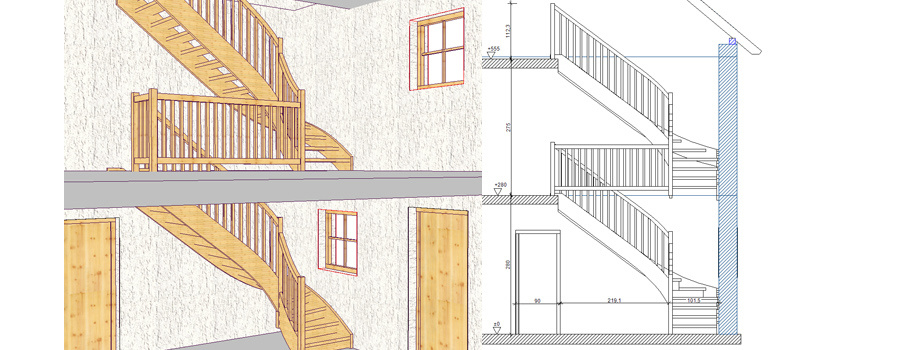

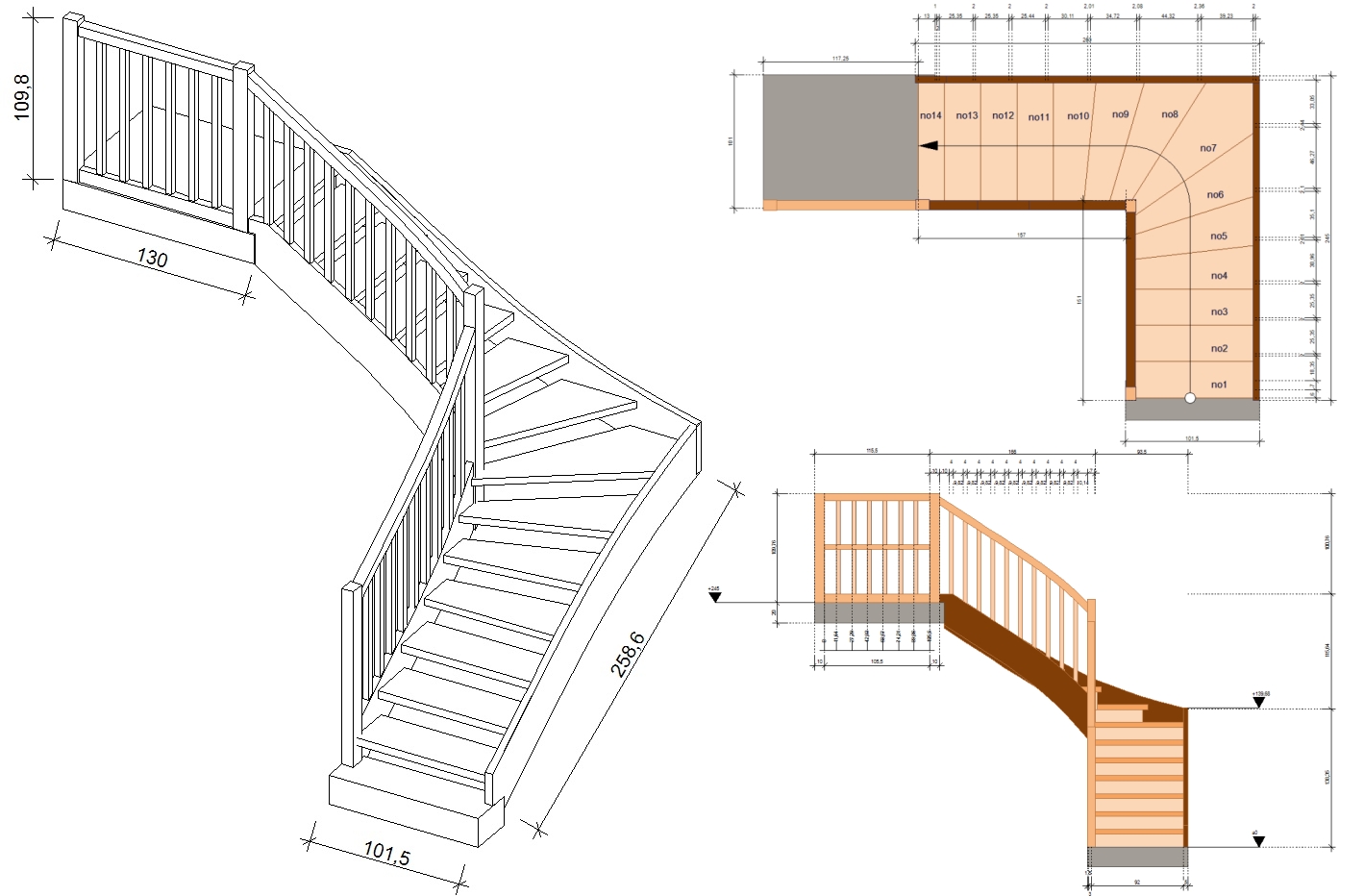

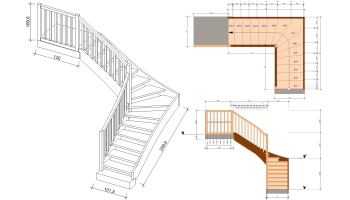

Each view by a click: floorplans, cross sections, elevation views and perspectives

Each view by a click: floorplans, cross sections, elevation views and perspectives

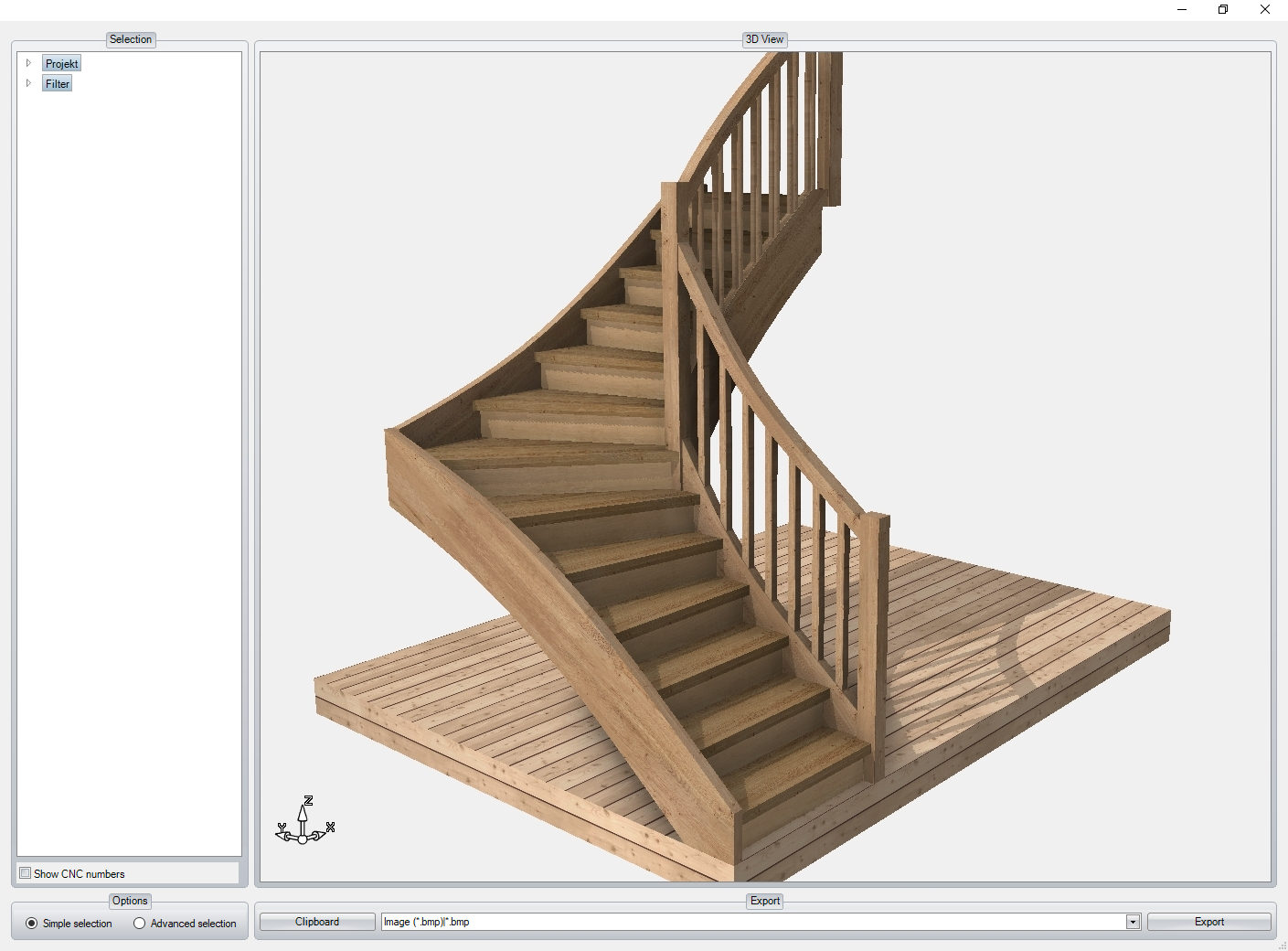

Rendering as images and exporting to 3D WebGL (HTML), PDF, etc.

Rendering as images and exporting to 3D WebGL (HTML), PDF, etc.

  • Efficient and detailed planning of staircases in new or existing buildings

  • Staircase assistant (Wizard) for creating desired type

  • Additional tools as Windows/Doors, Beams, Massive Ceiling allows to plan your Staircase without missing any other detail as the clearance height

  • Joint and others production details

  • Staircase type (flights):
    Straight, L or U with landing/s, L or U winder, U with double landing, U (L double flights)

  • Optional rounding and corner newel posts

  • Calculation of step dimensions (ratio of risers to treads) according to the Blondel formula 2r+t (2 rise + tread)

  • Manual step optimization

  • Polygonal adjustment tools: Edit/Move Points (Vertexes) and Edges

  • Floor and Ceiling (Slab) creation

  • Construction: Single and Multiple beam tools allow to create railings (posts and balusters). You can do that following slabs and/or drawing 3D guide lines

  • Edit/Working tools: Controlled cut, Break, Recess, Free notches/groove, Rabbet, Chamfer/Smooth, Material selection, Single/Multiple copy, Rotation / Moving, 3D guide lines

  • Automatic computations of Lengths and Areas for taking better control

  • 2D Views: Floorplan, Elevation views and Cross Sections

  • Free Dimensions in 2D views

  • PDF export of all views by a mouse click

  • Interface:
    Direct import from: ArCon, IFC, Vi BIM solutions
    Export: Collada

Suitable for designing wooden staircases

For more information see theflyer


Architektur Treppe

Treppe Fertigung (Version for Carpentry/Joinery)

Contains all the functions of Architektur Treppe (Architectural Version).

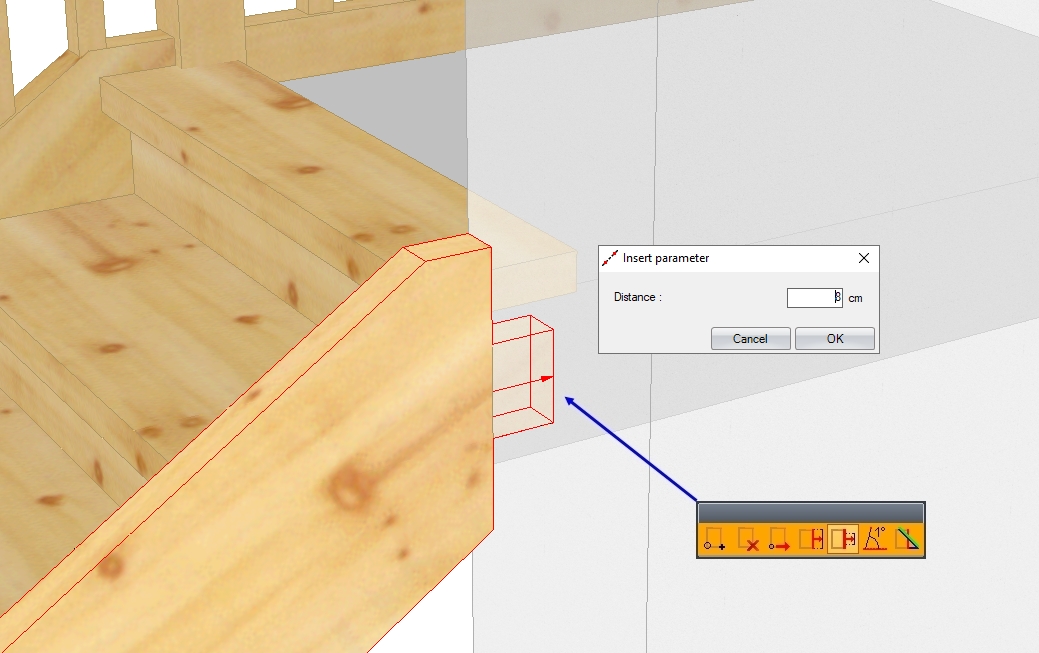

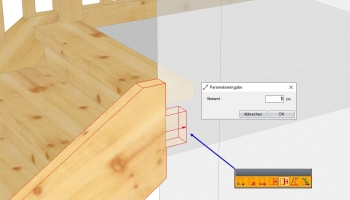

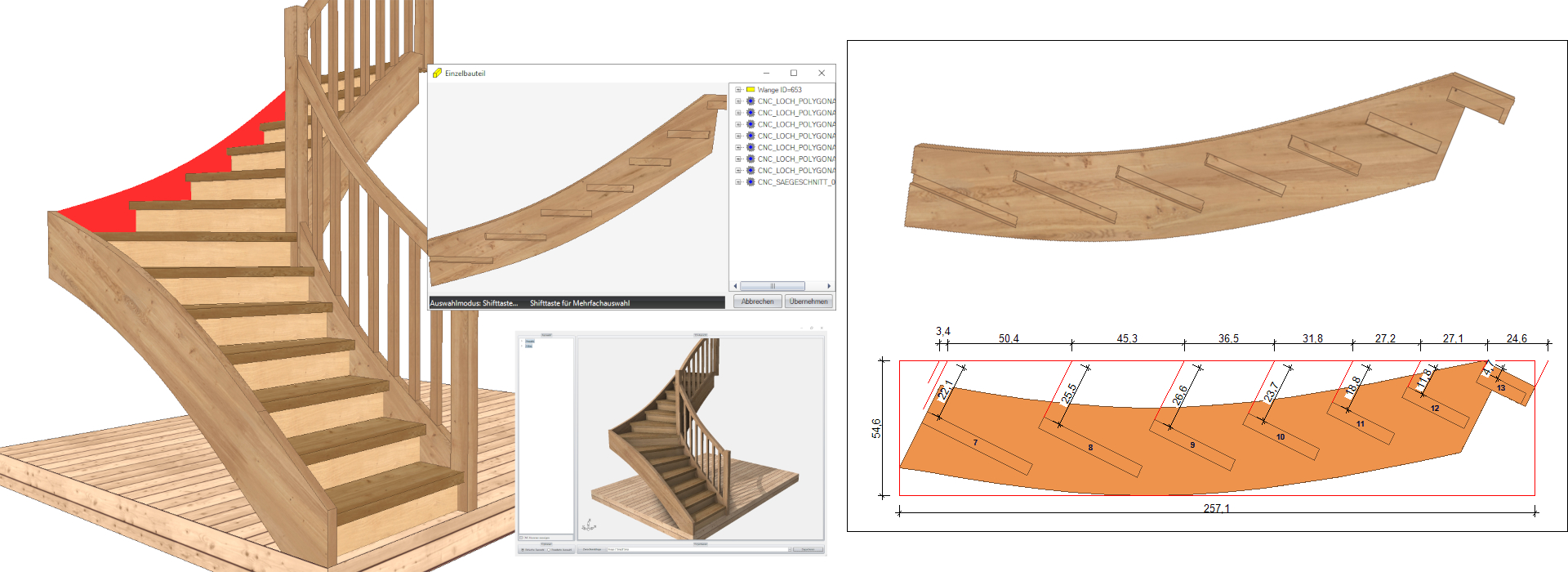

Staircase joints: A command creates Tenons-Mortises on the stringers by the treads and/or risers.

Staircase joints: A command creates Tenons-Mortises on the stringers by the treads and/or risers.

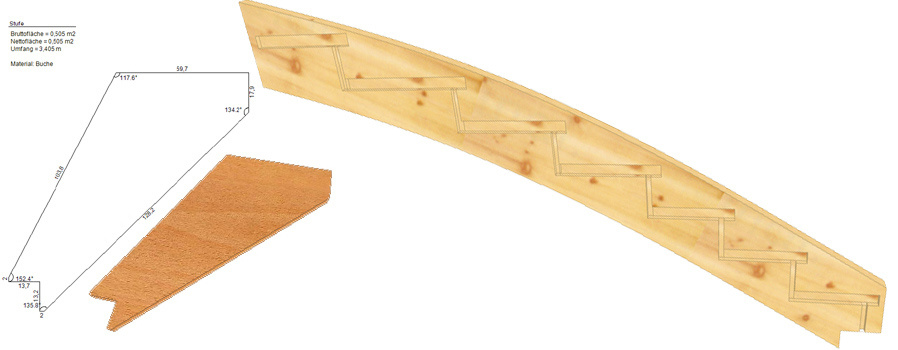

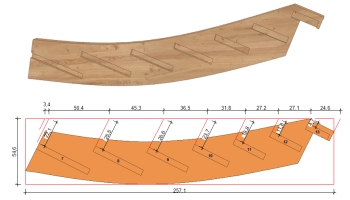

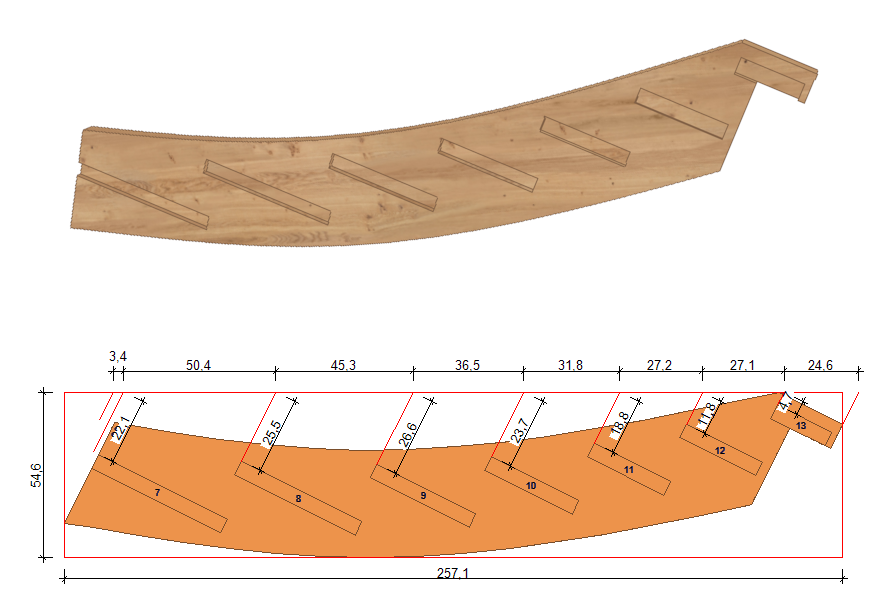

Automatic technical drawing to start production

Automatic technical drawing to start production

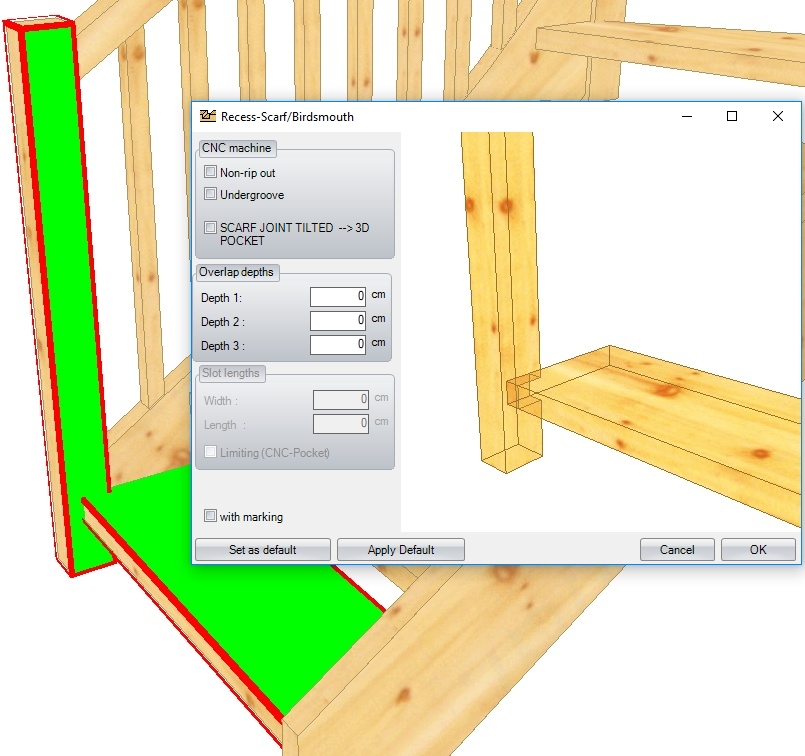

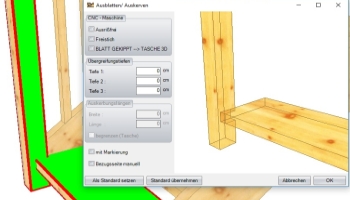

Single recess by lap joint tool (e.g. for joining the Newel Post with the step)

Single recess by lap joint tool (e.g. for joining the Newel Post with the step)

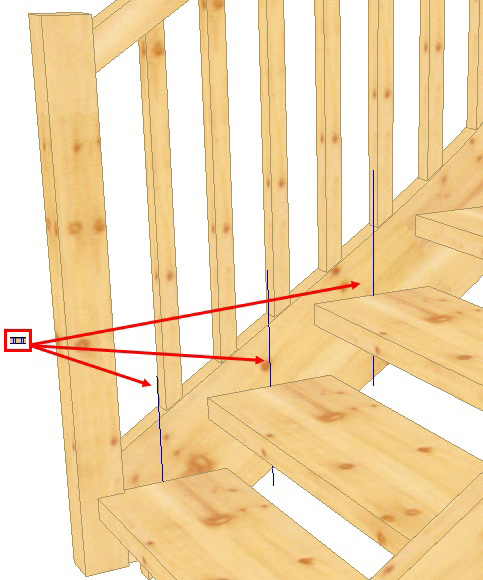

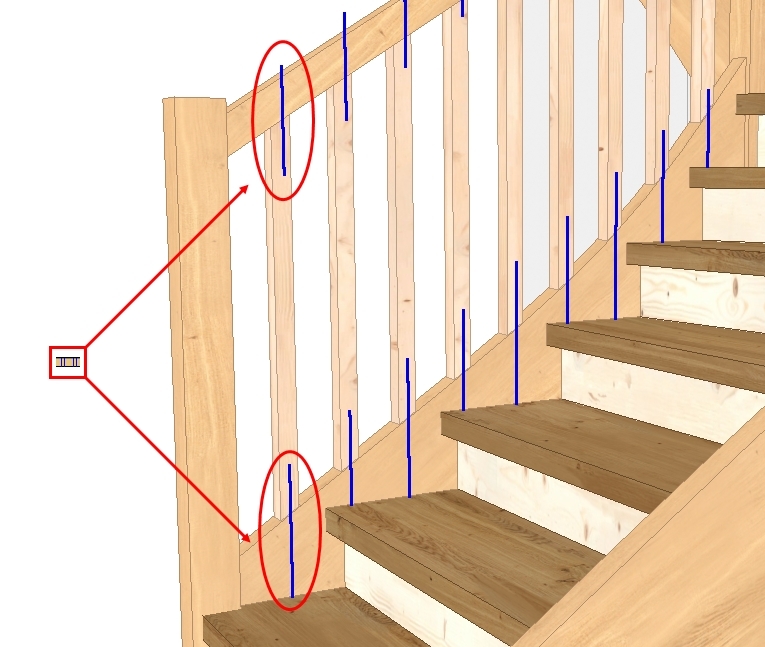

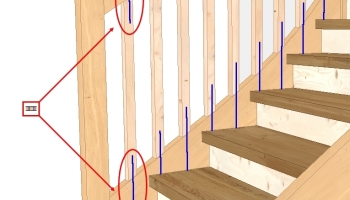

Free marking (e.g. to facilitate drilling of railing balusters)

Free marking (e.g. to facilitate drilling of railing balusters)

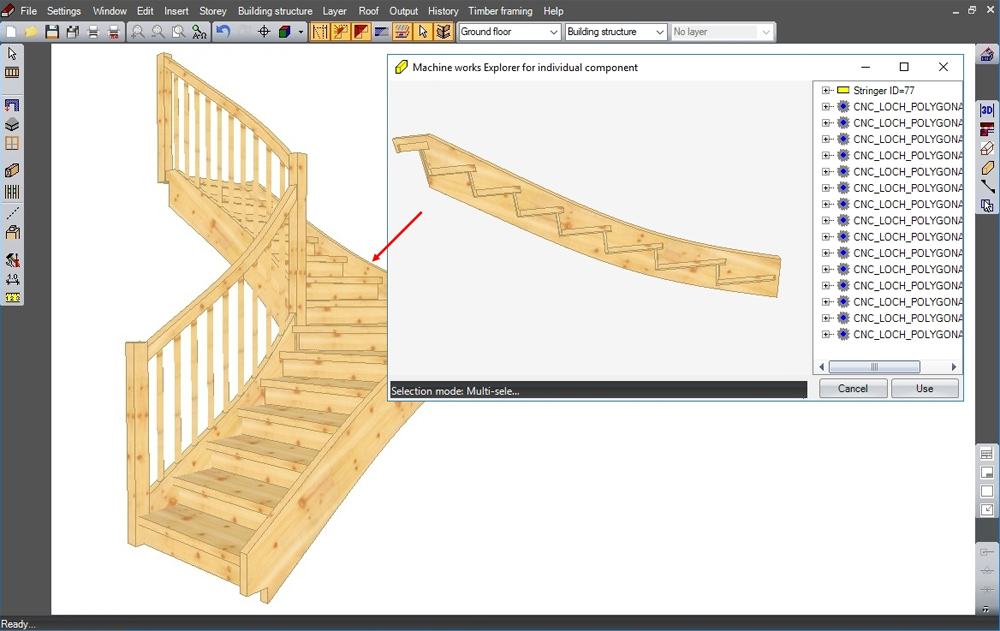

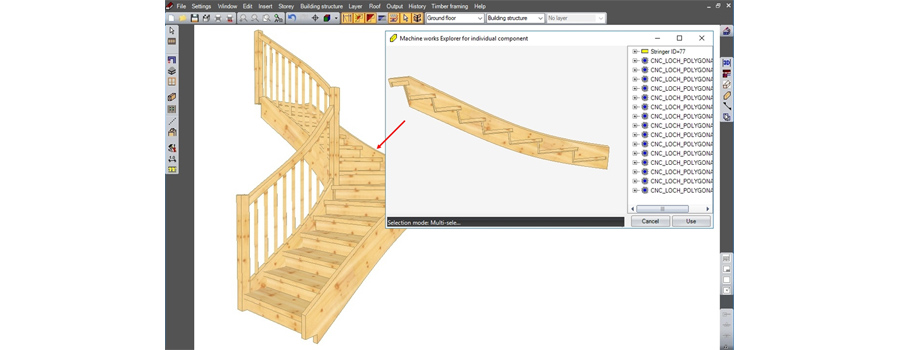

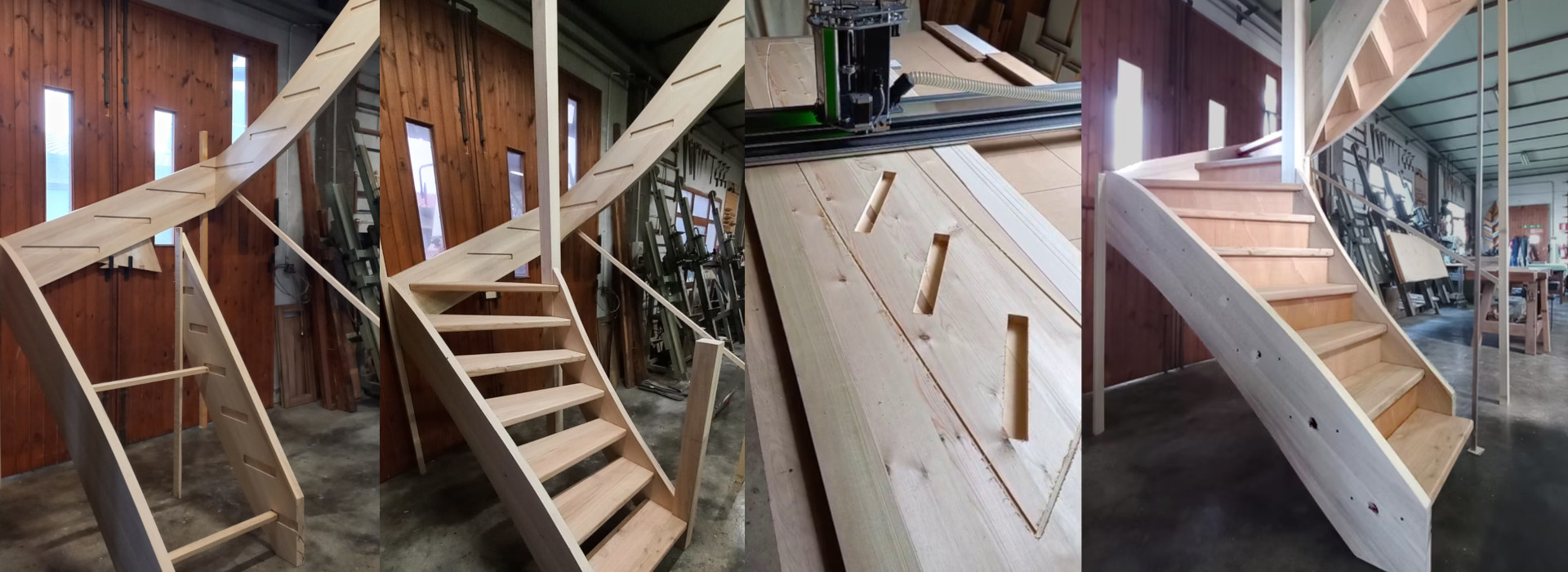

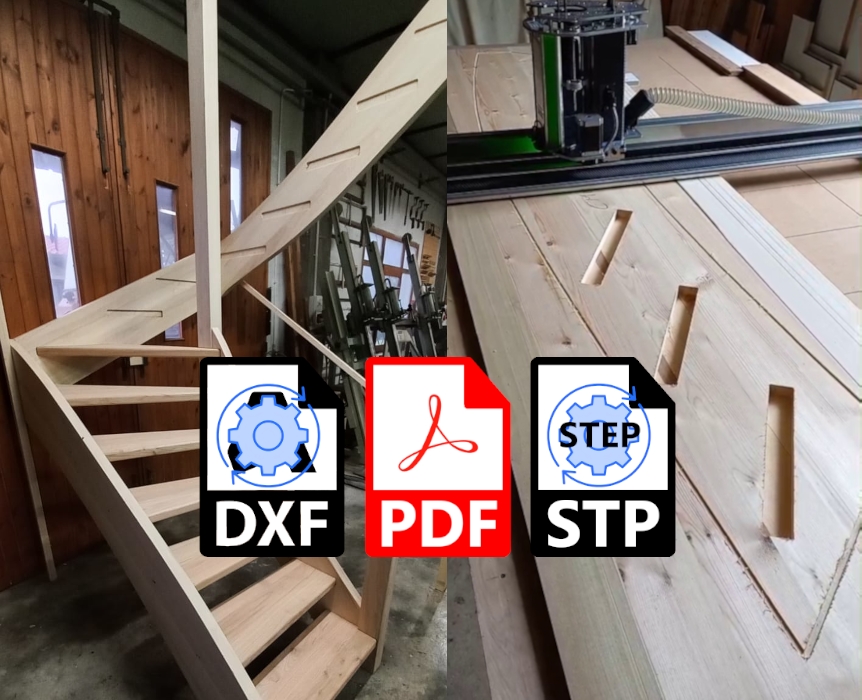

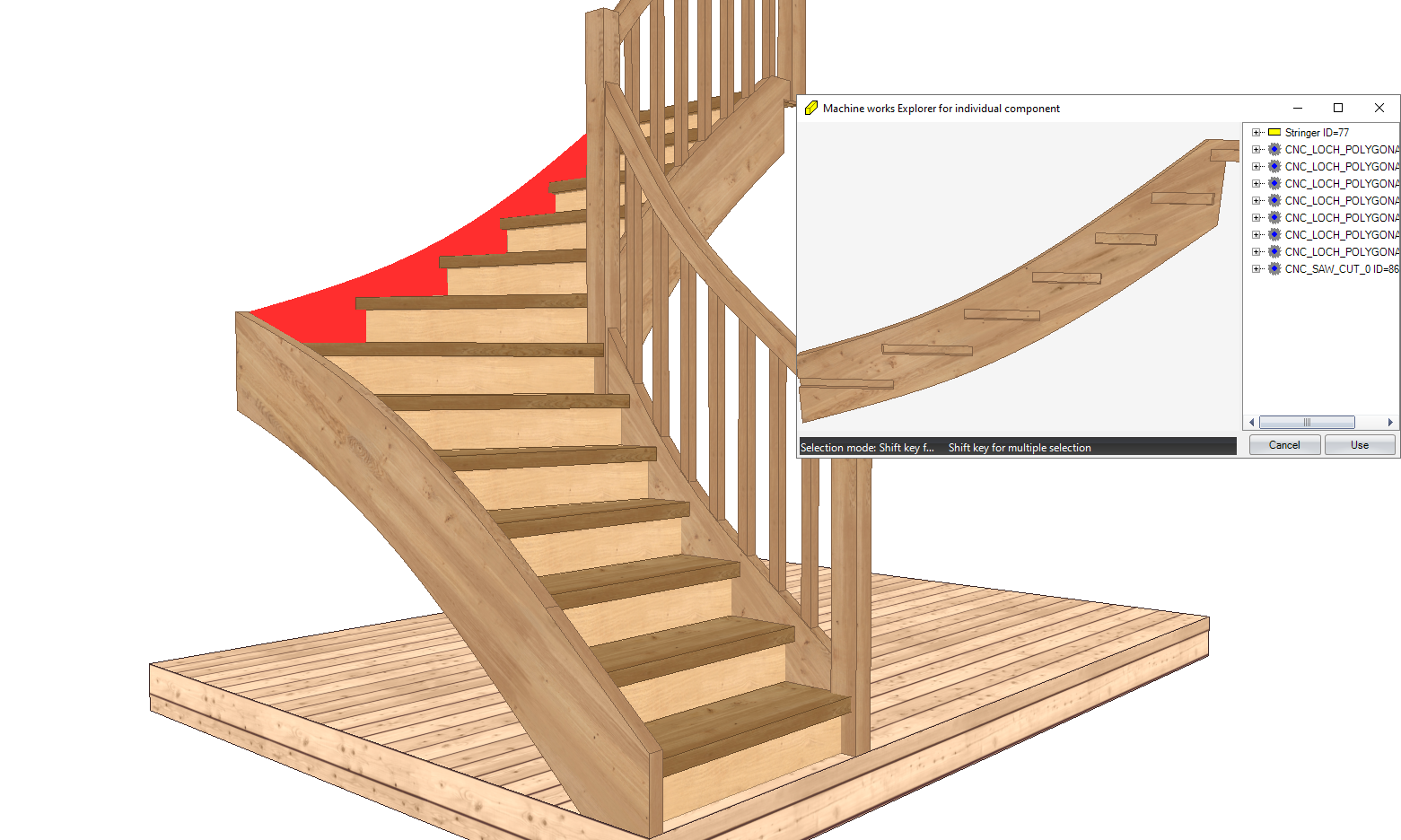

DXF/DWG, PDF, STEP export for CNC machines

DXF/DWG, PDF, STEP export for CNC machines

  • DXF/DWG, PDF, STEP Export

  • Round balusters

  • Automatic Dimensions of steps and stringers

  • Output of scaled drawings (including 1:1 plots)

  • Various functionalities for 2D processing and dimensioning

  • Custom drawings views for single or multi selection and with a manual or automatic plane reference. This choice creates global custom views or technical drawing auto-dimensioned of steps and stringers.

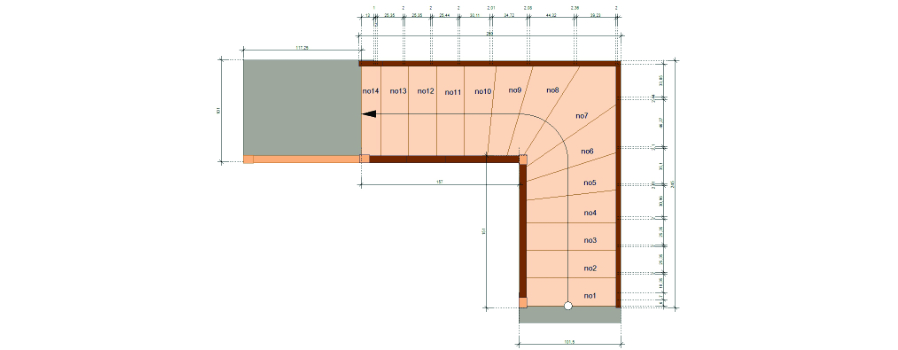

  • Display of the tread line and step numbering of the staircase on floor plans drawings

  • Automatic creation of joints (tenons and mortises) on stringers by treads and risers

  • Single lap-joints and free marking for 2D technical drawing (e.g. to facilitate drilling of railing balusters)

Suitable for Design and production of wooden staircases

For more information see theflyer


Treppe Fertigung
